SUNPRO HJT 515W BIFACIAL MONO RECTANGLE CELL HIGH EFFICIENCY
SP-210R-108DSxxx (xxx= 490 to 515 watt)
Tier 1 Sunpro Power N-type product
HJT 515w double glass half-cut 108-cell
Double-sided power generation & higher efficiency
Quantity


SUNPRO HJT 515W BIFACIAL MONO RECTANGLE CELL HIGH EFFICIENCY

Who we are

Zhejiang Sunpro Power Technology Co., Ltd. ( hereinafter referred to as"Sunpro"), founded in May 2018, is a technological innovation enterprise specializing in the development and application of solar technology as well as the products' large-scale manufacturing.

Under the mission of"powering the future, building a zero-carbon home", Sunpro adheres to the operating philosophy of"Rules, professionalism, value, trustworthiness, innovation, excellence". Focusing on the R&D of high-efficient solar technology as well as its production, Sunpro strives to provide customers with the most effective clean energy solutions of greater performance and better returns.

Production Specification

Electrical parameters at standard test conditions

(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C)

Typical Type

515W

Max Power(Pmax)

515

Max Power Voltage(Vmp)

34.49

Max Power Current(Imp)

14.94

Open Circuit Voltage(Voc)

41.09

Short Circuit Current(Isc)

15.81

Module Efficiency(%)

23.17

Max System Voltage

DC 1500V(TUV)

Maximum Series Fuse Rating

30A


Mechanical  Data

Dimensions
1960x1134x30 mm
Weight
27.4 kg
Glass

(F)2.0 mm ultra clear embossed double layer colorless glass

(B)2.0 mm semi-tempered glass

Output cables
4mm², symmetrical lengths 1300mm
Connectors
MC4 compatible IP68
Cell type
Mono-crystalline N-type, 182x105mm
Number of cells
108 cells ( Half-cut Cell )

Warranty & certifications

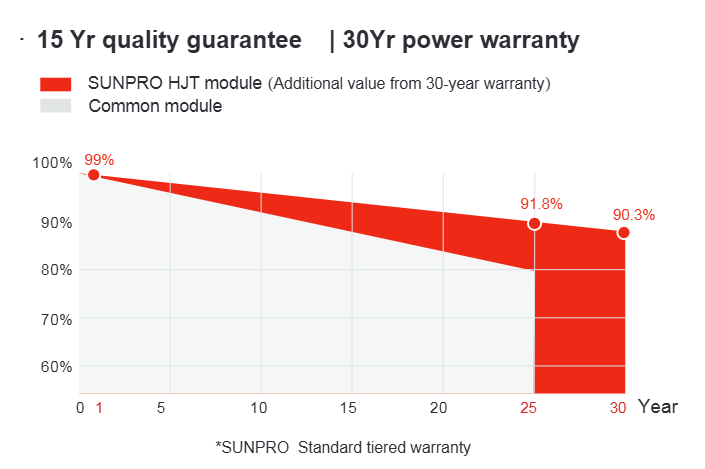

Sunpro solar modules are supported by an at least 15-year product warranty and industrial leading 30-year linear performance warranty. The company also provide insurance underwritten by Ariel Re for solar modules, offering more extensive protection for clients. Sunpro has absolute confidence of its modules. Compared to traditional technology, N-type modules could offer more output, higher reliability, and save more costs. All series of Sunpro N-type products have passed the industry's professional third-party tests to ensure the best quality and energy yield.


Standard tests
IEC 61215, IEC 61730
System certs
ISO 9001, ISO14001, ISO45001, ISO18001, SA8000
Certifications
TUV, CE, WEEE, INMETRO
FIRE CERTIFICATE C1
Extreme wind and
snow loads testing
Withstand extreme Wind(2400 Pascal)
Snow loads(5400 Pascal)
Power tolerance
0~+3%
Junction box
IP 68



Factory System Certification

Sunpro makes every effort to ensure that all aspects in manufacturing process are in the industrial leading position. The company has gained the latest ISO system certification, and will continue to actively improve various system in the future to provide sufficient guarantee for customers.

Product Certification

Sunpro N-type modules have passed the most stringent tests in the industry and obtained a range of certifications about product quality and safety. At present, Sunpro N-type Solar modules have gained the following certifications.


Package

Container type
40'HQ
Pieces / pallet
36 pcs
Pallets / container
24 pallets
Pieces / container
864 pcs

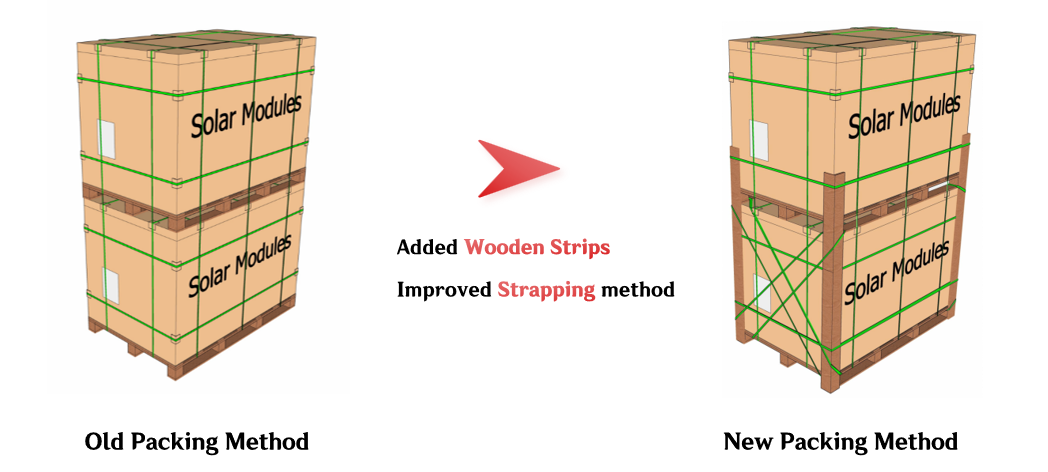

After the improved packaging, Sunpro changed the strapping method of the bottom pallet and added wooden strips for fixing. The new packaging method makes the solar module safer and more reliable during loading and unloading, transportation and storage.

FAQ

1.Q:Could you produce 166mm cell?
   A:Yes,we do.


2.Q:Do you have stock warehouse in EU market?
   A:Yes, we have. We set warehouse in Rotterdam and Poland to keep regular customs clearance stock solar panels.


3.Q:May i have a piece of sample to check the quality?
    A:Welcome to place the testing order to check the quality or for testing.


4.Q:How about the delivery time?
  A:Generally, the order takes 15-20 days after receiving your payment. The specific delivery time depends on the items and the order quantity.


5.Q:Where is the port of loading?
   A:Ningbo or Shanghai


6.Q:Can you do OEM?
   A:Yes, we are welcome to do OEM for our clients.


7.Q:Could we be your agent or distributor?
   A:Yes, we do.
