US $0.20 - US $0.35 / watt
25-year: 80.2% power output ,efficiency rate of up to 21.16%.

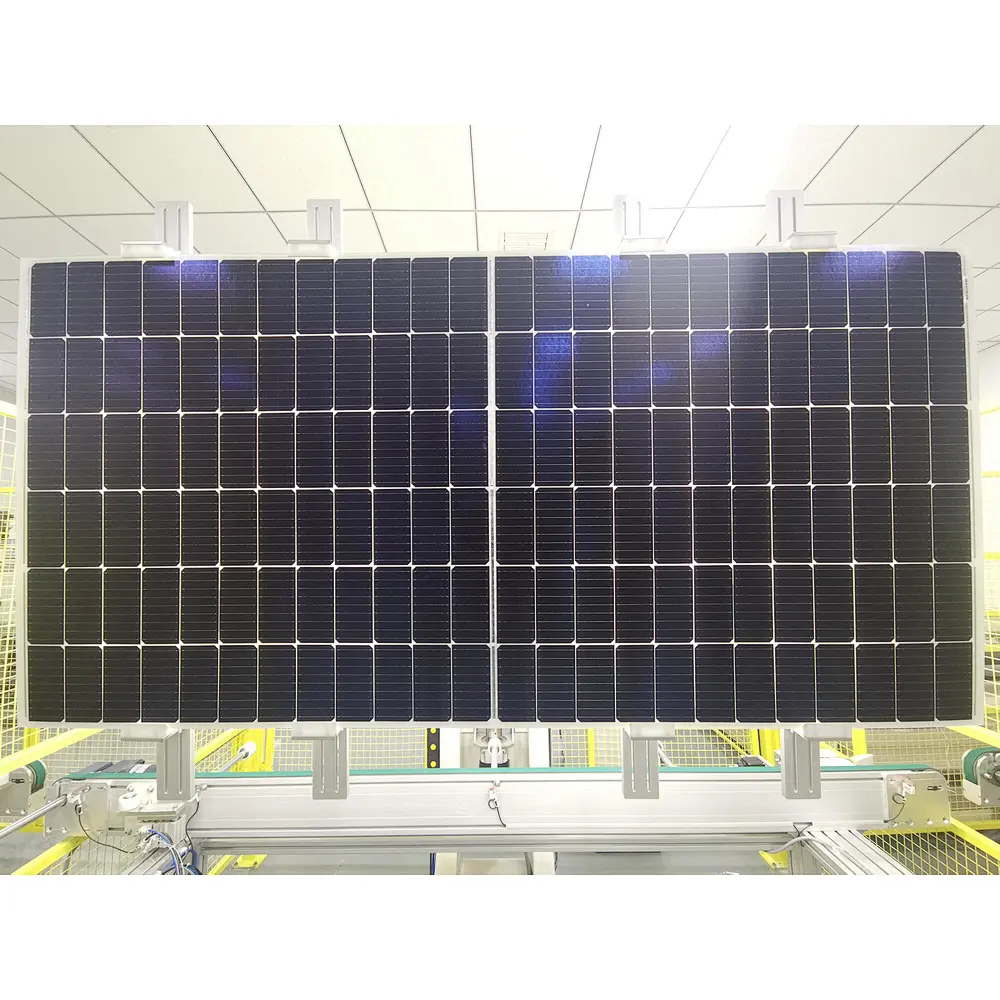

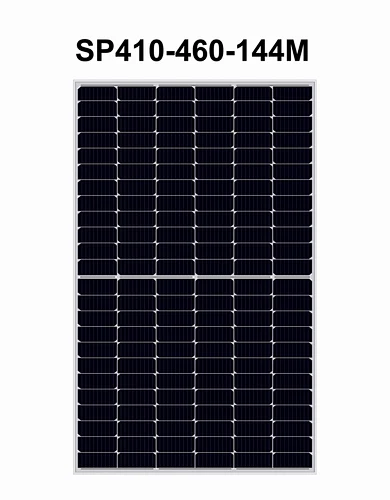

460W Mono-Crystalline High-Efficiency Half Cut Solar Module
Sunpro is mainly engaged in the PV cells、PV modules and photovoltaic systems. Our products with full certificates are widely applied into front-end fields, for instance, commercial, household, and industrial off-grid and grid-connection solar power generation systems m, etc. Solar panels directly convert solar radiation energy into electrical energy through the photoelectric effect by absorbing sunlight. This panel is made of high-quality materials and high-efficiency cells.
GRADE A SOLAR CELLS: to ensure all are high efficient grade A solar cells.
HIGH QUALITY: fully automated production processes, each solar panel is tested strictly.
PRICE ADVANTAGES: good price, low cost as industry chain integration with scale effect.
AFTER-SALES ADVANTAGES: 24 hours service online, timely, and fastly solve problems.
FACTORY ADVANTAGES: more than 10 years experience in the PV industry.
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
| Model type | 460W |
| Max power | 460W |
| Max Power Voltage(Vmp) | 41.2V |
| Max Power Current(Imp) | 11.17A |
| Open circuit voltage(Voc) | 50.0V |
| Short circuit current(Isc) | 11.69A |
| Module Efficiency(%） | 21.16% |
| Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
| Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094x1038x35mm |
| Weight | 23.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |
Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 60 | 60 | 64 |
Pallets per container | 5 | 11 | 11 |
Pieces per container | 300 | 660 | 704 |

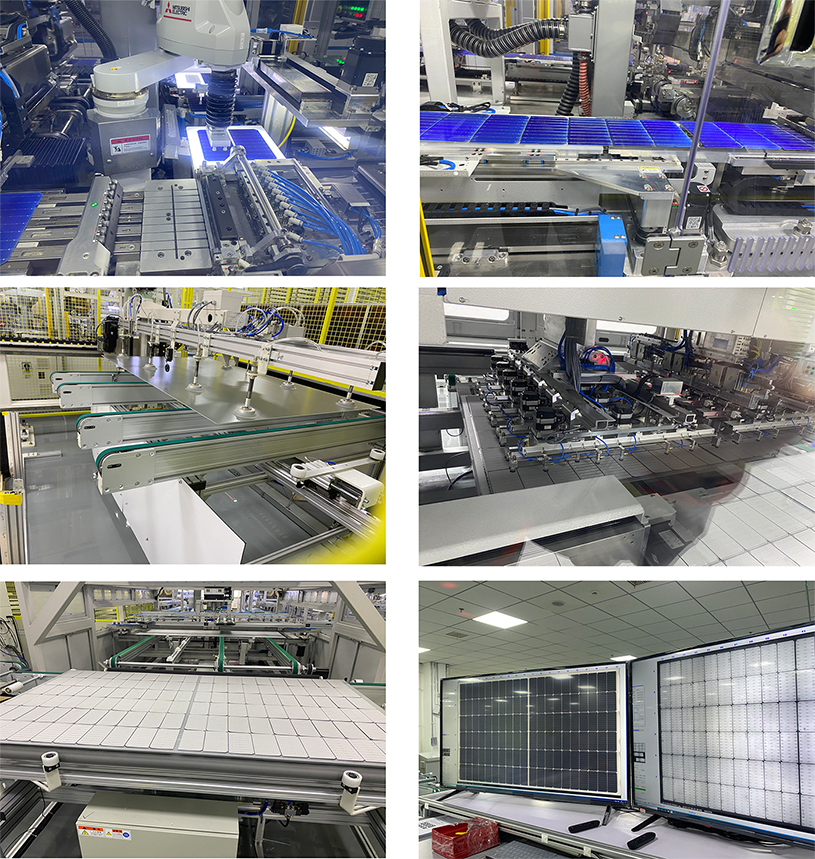

Our Factory

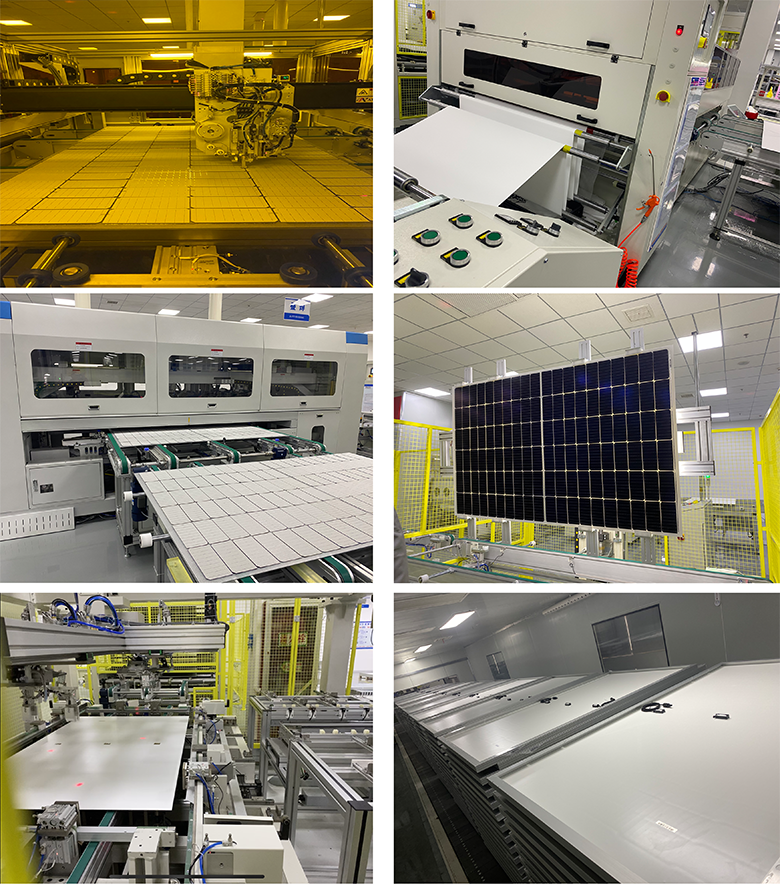

100% Automatic Procution Lines
Packing
Globle Warehouse
Certificates
FAQ
1.Q:Could you produce 166mm cell?
A: Yes,we do.
2.Q: Do you have a stock warehouse in the EU market?
A: Yes, we have. We set warehouses in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q: May I have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4.Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q: Where is the port of loading?
A: Ningbo or Shanghai
6.Q: Can you do OEM?
A: Yes, we are welcome to do OEM for our clients.
7.Q: Could we be your agent or distributor?
A: Yes, we do.
