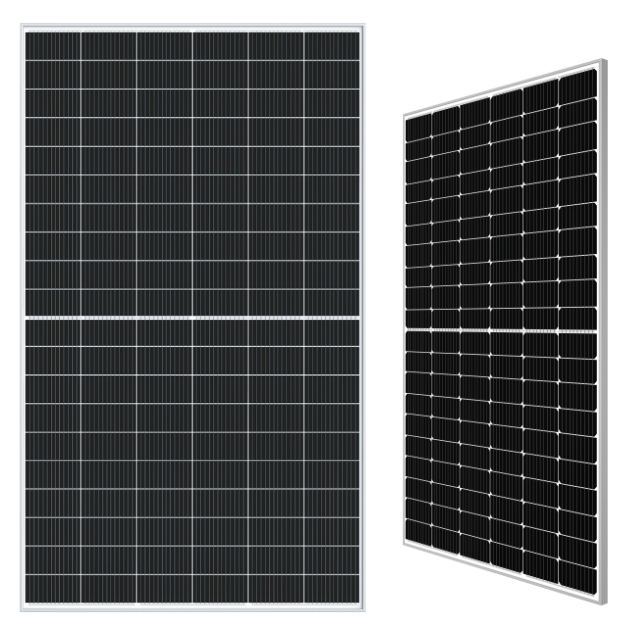

Mono 605W solar panel 120 half cells for ultra-large power plant
price
US $0.20 - US $0.35 / watts
SP605W-120M12
FOB, CIF, EXW, DDP
18755 watts
1.5Gwatts / Year
China
15Day
-Best choice for ultra-large power plant;
-Based on M12 wafer, half-cut cells;
-Advanced module technology deliver superior module efficiency;
-High module quality ensures long-term reliability
-Based on M12 wafer, half-cut cells;
-Advanced module technology deliver superior module efficiency;
-High module quality ensures long-term reliability
Quantity
Outlook of Solar Panel
Test, Certifications & Warranties
Test, Certifications & Warranties
Tests, Certifications and Warranties
Standard tests IEC 61215, IEC 61730, IEC 61701,
IEC 62716, PPP 58042B
System certs ISO 9001, ISO14001, ISO45001,TUV
Certifications TUV, AMMONIA AND SALT MIST CORROSION,
ANTI-PID, CE, WEEE,INMERTRO,
ANTI-PID, CE, WEEE,INMERTRO,
FIRE CERTIFICATE C1
Extreme wind and Withstand extreme wind(2400 Pascal)
snow loads testing and snow loads(5400 Pascal)
snow loads testing and snow loads(5400 Pascal)
Power tolerance 0~+3%
Junction box IP 68
Warranties 12 years product warranty and 25 years
84.8% of power
Certifications
Quality Assurance
Sunpro Power warrants its Photovoltaic Solar Modules to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, then for a period ending 144 months from date of sale as shown in the invoice to the direct customer of Sunpro Power either repair or replace the product, or refund the purchase price as paid by the CUSTOMER. The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under the"Limited Product Warranty"and shall not extend beyond the 144 months period set forth herein. It will be performed directly to the CUSTOMER only.
Mechanical Data
Dimensions 2172x1303x35mm
Weight 30.9 kg
Glass 3.2mm tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type Mono-Crystalline PERC, 12BB，210x105mm
Number of cells 120 cells ( Half-Cell )
Packing Configuration
Container 40'HQ
Pieces per pallet 31
Pallets per container 17
Pieces per container 527
Cleaning
Dust accumulation on the glass surface of the module will reduce its power output and may cause hot spots.
So the surface of PV modules should be kept clean. Maintenance work should be performed at least once six
months or frequently.
Warning: It should be carried out by trained personnel. Workers should wear PPE, such as goggles, electric
insulation gloves and safety shoes. The gloves should withstand DC voltages of no less than 2000V.

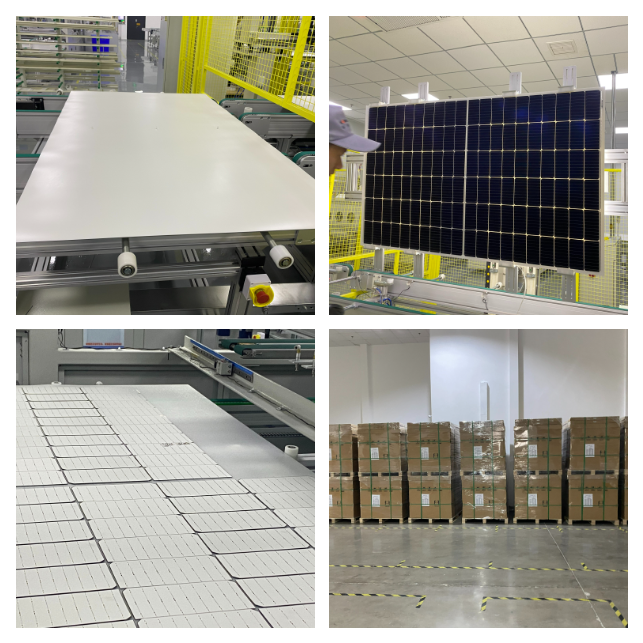

Overview of our Auto Production Line & Logistic Service
Sunpro Power Co.,Ltd, a Tier 1 PV module manufacture, which has been in the solar industry more than 13 years, supplying about 1.5GW annual module capacity with fully automated production line and all basic certificates.
Certifications
Quality Assurance
Sunpro Power warrants its Photovoltaic Solar Modules to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, then for a period ending 144 months from date of sale as shown in the invoice to the direct customer of Sunpro Power either repair or replace the product, or refund the purchase price as paid by the CUSTOMER. The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under the"Limited Product Warranty"and shall not extend beyond the 144 months period set forth herein. It will be performed directly to the CUSTOMER only.
Mechanical Data
Dimensions 2172x1303x35mm
Weight 30.9 kg
Glass 3.2mm tempered glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type Mono-Crystalline PERC, 12BB，210x105mm
Number of cells 120 cells ( Half-Cell )
Packing Configuration
Container 40'HQ
Pieces per pallet 31
Pallets per container 17
Pieces per container 527
Cleaning
Dust accumulation on the glass surface of the module will reduce its power output and may cause hot spots.
So the surface of PV modules should be kept clean. Maintenance work should be performed at least once six
months or frequently.
Warning: It should be carried out by trained personnel. Workers should wear PPE, such as goggles, electric
insulation gloves and safety shoes. The gloves should withstand DC voltages of no less than 2000V.
Overview of our Auto Production Line & Logistic Service
Sunpro Power Co.,Ltd, a Tier 1 PV module manufacture, which has been in the solar industry more than 13 years, supplying about 1.5GW annual module capacity with fully automated production line and all basic certificates.
Besides it, you can also find the competitive Logistic's service as well:
🚛 📦 door-to-door logistics in Europe；
🚀 📦 fast delivery service from Rotterdam warehouse;
🙋 🙍🏻 an excellent overseas team to provide solutions for our clients;

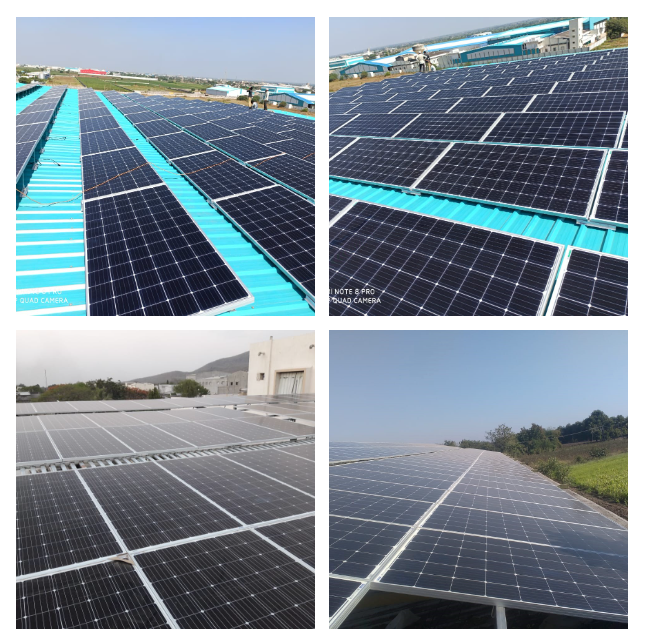

Applications
Site in Poland
Site in Poland
Tests, Certifications and Warranties
