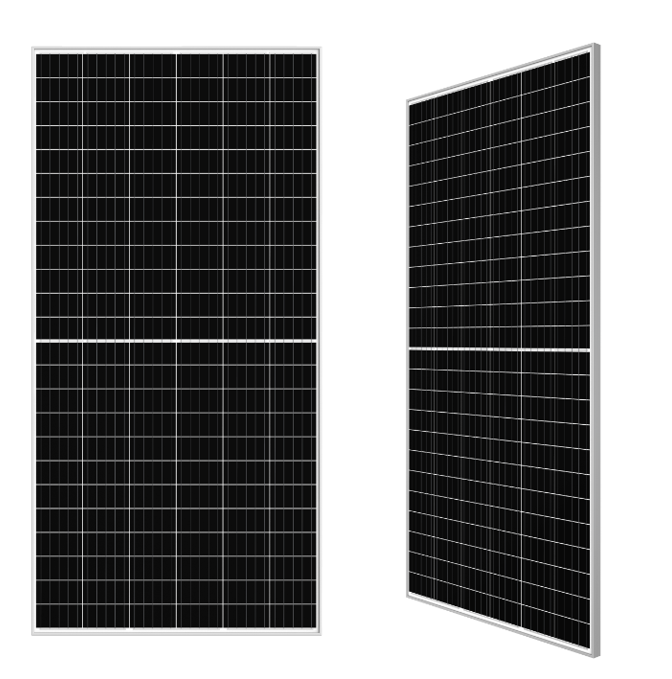

Mono 540W dual glass solar panel 144 half cells for ultra-large power plants
price
US $0.20 - US $0.35 / watts
SPDG540W-144M10
FOB, CIF, EXW, DDP
33480 watts
1.5Gwatts / Year
China
15Day
-Best for ultra-large power plants;
-Advanced module technology deliver superior module efficiency;
-M10 wafer, half-cut cells;
-High module quality ensures long-term reliability&stability
-Advanced module technology deliver superior module efficiency;
-M10 wafer, half-cut cells;
-High module quality ensures long-term reliability&stability
Quantity
Solar Panels Display
Generally, the Double-glass type frequently being used in the mounting ground project, because the anti-humid heat aging performance is particularly outstanding. In addition, the double-glass module can remove the frame, expanding the application of BIPV (Building Integrated Photovoltaic).
Mechanical Data
Mechanical Data
Dimensions 2279x1134x35mm
Weight 34 / 33.5kg
Glass (F) 2.0 mm High Transmission, AR Coated Heat Strengthened Glass
(B) 2.0 mm High Transmission, AR Coated Heat Strengthened Glass
Output cables 4mm², symmetrical lengths 1300mm
Connectors MC4 compatible IP68
Cell type Mono-Crystalline PERC, 10BB，182x91mm
Number of cells 144cells ( Half-Cell )
Packing Configuration
CertificationsPacking Configuration
Packing Configuration
Container 40'HQ
Pieces per pallet 62
Pallets per container 10
Pieces per container 620
Quality Assurance
Sunpro Power warrants its Photovoltaic Solar Modules to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, then for a period ending 144 months from date of sale as shown in the invoice to the direct customer of Sunpro Power either repair or replace the product, or refund the purchase price as paid by the CUSTOMER. The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under the"Limited Product Warranty"and shall not extend beyond the 144 months period set forth herein. It will be performed directly to the CUSTOMER only.
Cleaning
Dust accumulation on the glass surface of the module will reduce its power output and may cause hot spots.
So the surface of PV modules should be kept clean. Maintenance work should be performed at least once six
months or frequently.
Warning: It should be carried out by trained personnel. Workers should wear PPE, such as goggles, electric
insulation gloves and safety shoes. The gloves should withstand DC voltages of no less than 2000V.

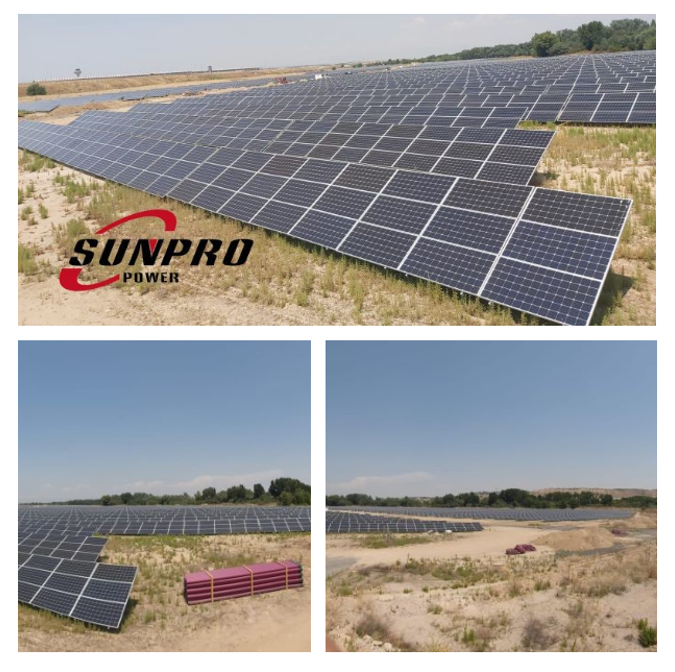

Application Scenario
Module：10MW Monocrystalline
Location：Madrid Airport, Spain
Overview

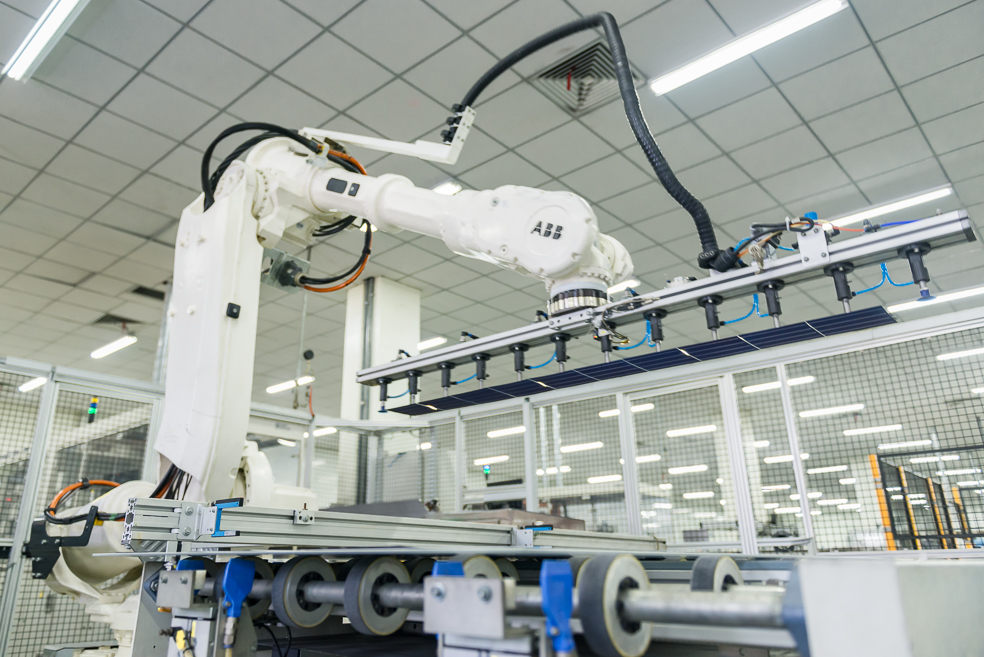

Sunpro Power, a Tier 1 PV modules manufacture, under the mission of “Power the Future”, provides the innovative solar energy solutions for the global clients. And by deep cultivating in the solar energy industry more than over 13 years, the annual capacity have already reached 1.5GW with a PV Module Auto Production Line incl. Auto cell sorting machines, Auto glass-lifting machines, EVA paving machines, EL test machines etc.
