M6 High efficiency 450W 144cells half cut PERC mono solar panel
price
US $0.20 - US $0.35 / watts
SP450-144M
EXW,FOB,CIF,DDP
450 watts
1GWwatts / Year
China
24Day
Power tolerance 0~±3%
Withstand strong snow load 5400 Pa / wind load 2400 Pa
Excellent low light performance
100% EL online inspection
Product Guarantee:12-year
Linear Performance Warranty
Withstand strong snow load 5400 Pa / wind load 2400 Pa
Excellent low light performance
100% EL online inspection
Product Guarantee:12-year
Linear Performance Warranty
Quantity
M6 High efficiency 450W 144cells half cut PERC mono solar panel
Product specification
Model type | 450W |
Max power | 450W |
Max Power voltage(Vmp) | 41V |
Max Power current(Imp) | 10.98A |
Open circuit voltage(Voc) | 49.8V |
Short circuit current(Isc) | 11.56A |
Module Efficiency(%） | 20.77% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094x1038x35mm |
| Weight | 24.2kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |
System certs: ISO 9001, ISO14001, OHSAS 18001
Product certs:

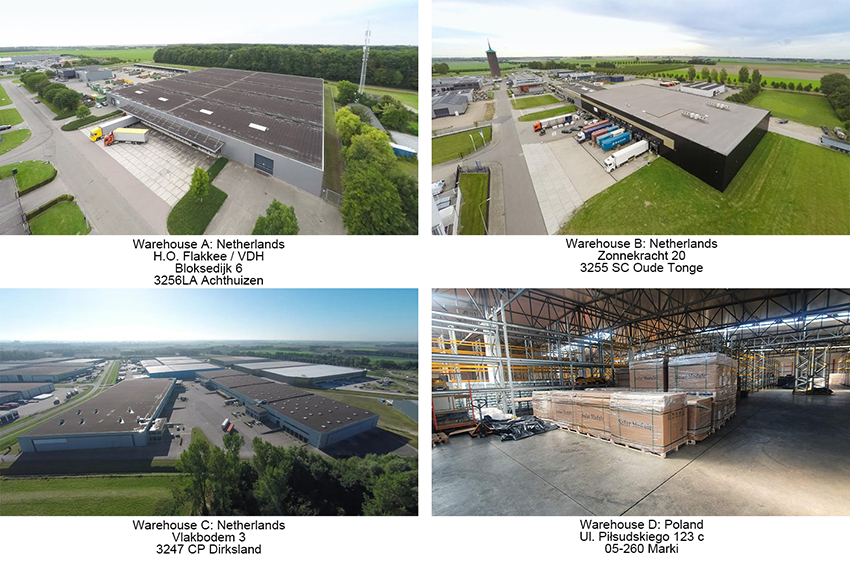

Our warehouse

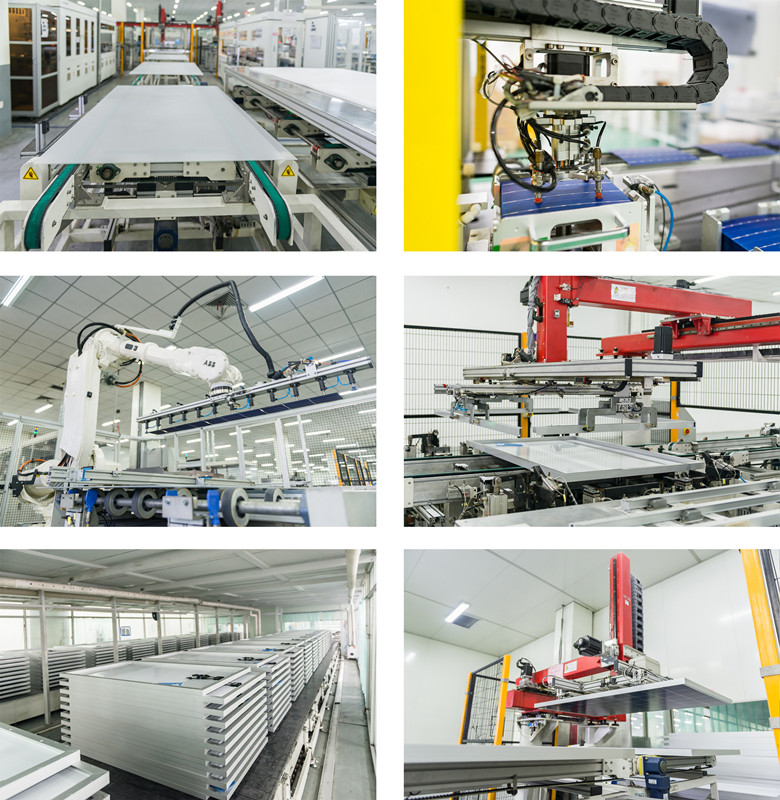

Our factory
