US $0.20 - US $0.35 / watt
108 half cut cell monocrystalline silicon module
100% EL onsite inspection
12 years product warranty, 25 years
84.8% of power

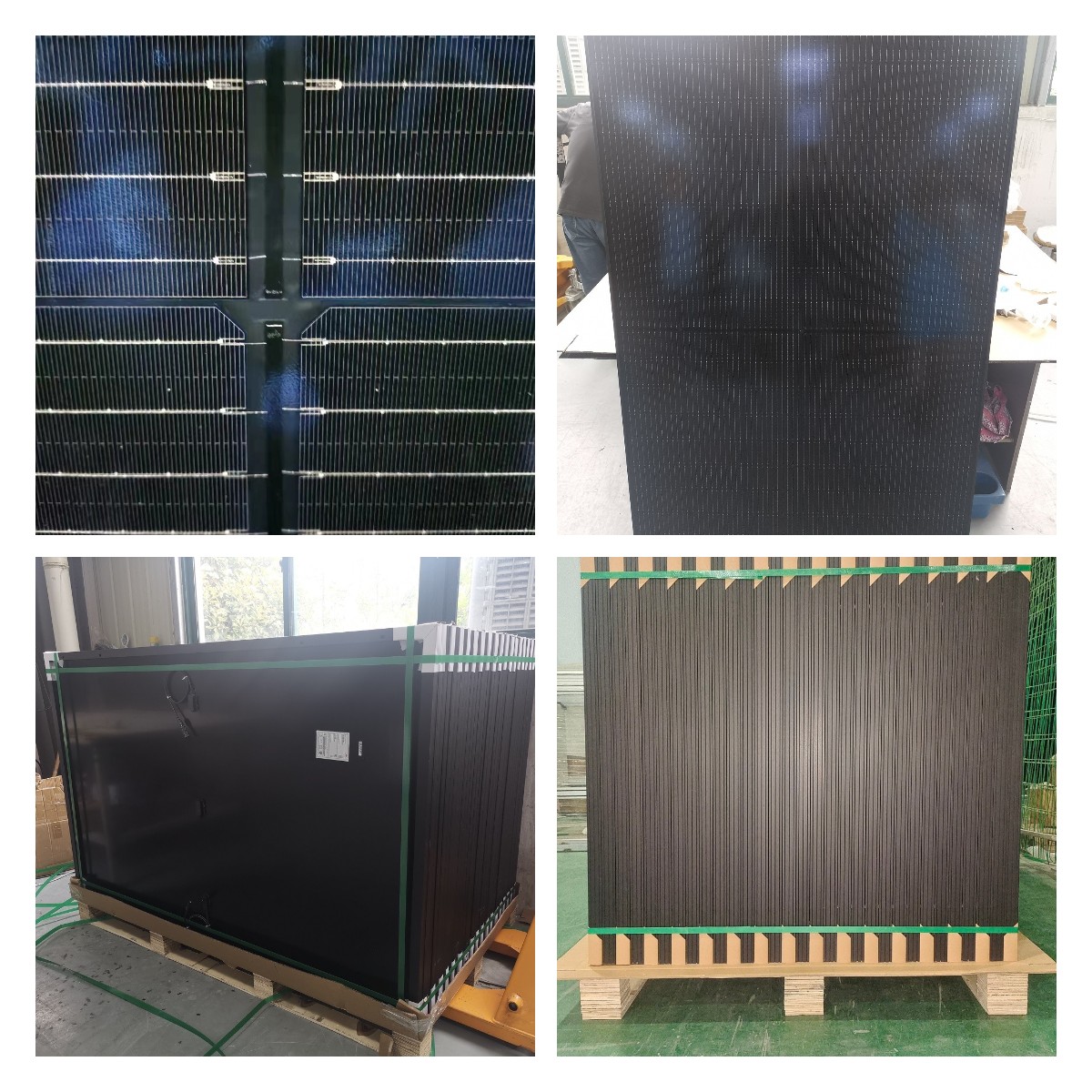

SP405W-108M10 Full Black Solar Panel
Product specification:
Model type | 405W |
Max power | 405W |
Max Power voltage(Vmp) | 31.04V |
Max Power current(Imp) | 13.05A |
Open circuit voltage(Voc) | 37.13V |
Short circuit current(Isc) | 13.83A |
Module Efficiency(%） | 20.72% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 25A |
Mechanical Data
| Dimensions | 1724*1134*30mm |
| Weight | 21.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline PERC Half-Cell 9BB 91x182mm |
Connectors | Mc4 compatible IP68 |
| Number of cells | 108 cells |
Our factory
Sunpro had set up a industry-leading automatic photovoltaic module production line , which including automatic cell sorting machines、automatic glass-lifting machines、EVA paving machines、automatic single welding&series welding machines、EL test machines、automatic edge trimmer、automatic integrated sealant&framing machines、automatic integrated durable &insulated grounding continuity test machines and etc with capacity 1.5GW per year.
Technology Advantage
1.LOW LID(Silicon Wafer With Ga)
2.Synergism EVA
3.100% EL Test With 24 Megapixel HD Camera
4.Four Steps Appearance Inspect
5.MBB Cells Increase 10W
| Consistency appearance A Grade cells Anti-Pid resistant |
| Silver or black color is optional Aluminum Alloy Frame Boost bearing capability and prolong the service life Serrated-clip design tensile strength |
| 12% ultra clear tempered glass 30% lower reflection 3.2mm thickness >91% higher transmittance high mechanical strength |
| IP67(IP65/IP68) Waterproof level The quality diode ensures module running safety -40℃ to +85 ℃ temperature range innovative full-glue-filled junction box |
