340-watt polycrystalline solar panel
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 340W |
Peak power(Pmax) | 340W |
Weight | 22kg |
Dimensions(mm) | 1956x992x35 |
Max Power voltage(Vmp) | 37.33v |
Max Power Current(Imp) | 9.11A |
Open circuit voltage(Voc) | 46.16V |
Short circuit current(ISC) | 9.62A |
Module Efficiency(%） | 17.49% |
Max system voltage | DC 600V(TUV) |
Maximum Series Fuse Rating | 16A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 900mm |
Connectors | MC4 compatible IP68 |
Cell type | Poly-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | specification | ||
| Container | 20'GP | 40'GP | 40'HQ |
| Piece per pallet | 60 | 60 | 64 |
| Pallets per container | 5 | 12 | 12 |
Pieces per container | 300 | 720 | 768 |

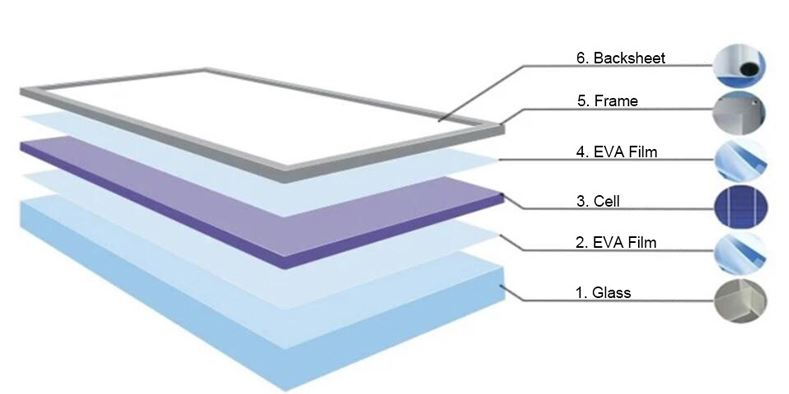

Main component

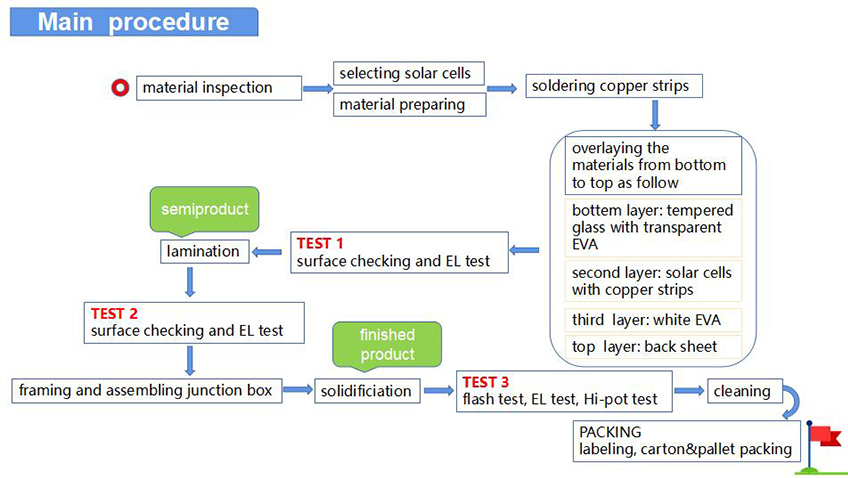

Main procedure

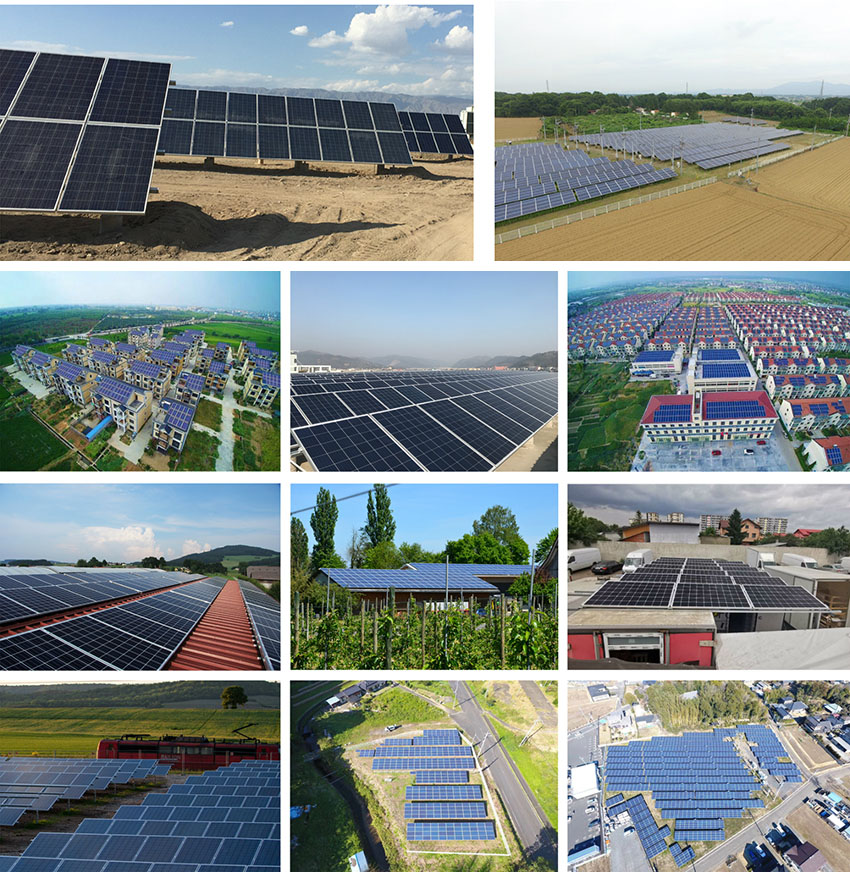

Our project
Application
340-watt solar panel is widely applied in the residential or commercial industry.
e.g. rooftop project, ground power plant
Certification
ISO9001, ISO quality management system
ISO14001, ISO environment management system
ISO 45001, Occupational health and safety
Our A/S:
If you find the quality is with a problem, please show us the picture, and the series no. , if it is our quality problem, we will replace a new one, or refund you the payment. But please be assured actually the possibility is less than 0.1%.
Q: What is series no.?
A: Every step of our production is recorded by series no. , it can be tracked back if there are any quality issues.
