US $0.15 - US $0.30 / watts
OEM Mono High Efficiency 190 watt Monocrystalline solar panel
The PMX of the monocrystalline solar panel is 190w. It can provide 80.2% power output in 25 years. We use high-quality materials which can withstand high winds and snow loads. We provide OEM service. In order to to ensure quality and reliability of our products. We have updated our production line to the most advanced level, tracking every step of our production and checking with electroluminescence tester 100% of our modules.
- 25-year: 80.2% power output ;
- Positive output tolerance (0-3%)
- Withstands high winds (2400Pa)
- Withstands snow loads (5400Pa)
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 190W |
Peak power(Pmax) | 190W |
Weight | 11.7kg |
Dimensions(mm) | 1500*675*35 |
Max Power voltage(Vmp) | 19.9 |
Max Power current(Imp) | 9.55 |
Open circuit voltage(Voc) | 24.4V |
Short circuit current(Isc) | 10.12A |
Module Efficiency(%） | 18.77% |
Max system voltage | DC 1500V/1000V |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
About us
Sunpro Power is an experienced manufacturer, dedicated to production of high quality photovoltaic solutions with A-grade solar cells. We have updated our production line to the most advanced level, tracking every step of our production and checking with electroluminescence tester 100% of our modules to ensure quality and reliability of our products.Our headquarter is here in China, our branches are in Germany and UK, we have put regular stock in Rotterdam(NL), Warsaw and Random(PL). Fast delivery to European union countries, Option for EXW and DDP.
Our service
1. Our company can provide A-grade quality panels with a full warranty, competitive price, and good after-sales service
2. 12 years quality assurance, 25 years power output warranty
3. Provide the authoritative testing report of products and other technical support.
4. Help clients to purchase the complete accessories, such as batteries, inverter, etc. from our partners
5. Accept OEM for our clients.

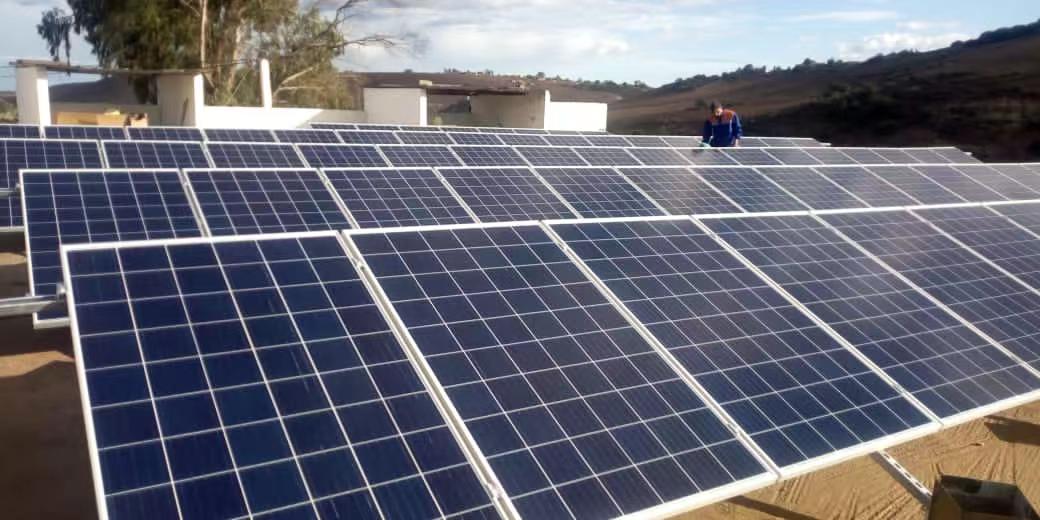

Our Project
