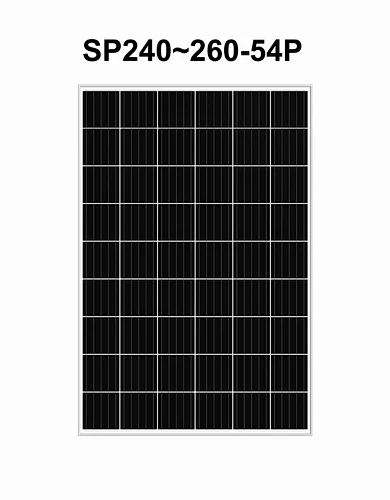

54 Cell Mono Solar Panel
OEM 255W 54 Cells Polycristalline Solar Panel
price

US $0.15 - US $0.21 / watts

SP255-54P
EXW,DDP,CIF,FOB
260 watts
800MWwatts / Year
China
25Day
Power tolerance: 0~±3%
Extreme wind and snow loads testing: Withstand extreme wind(2400 Pascal) and snow loads(5400 Pascal)
Warranties: 12 years guarantee on product materials and workmanship and 25 years Linear Power output warranty.
Quantity

OEM 255W 54cells polycristalline solar panel

54 cell Mono Solar Panel achieves a power output up to 280Wp. The temperature coefficient has been improved to reduce the power loss during high temperature. And we conducted extreme wind and snow load tests, which proved that polycrystalline solar panels has a good pressure bearing capacity.

5 Busbar Cell

  1. Model Type
  1. 255W
  1. Peak Power(Pmax)
  1. 255
  1. Max Power voltage(Vmp)
  1. 28.50
  1. Max Power current(Imp)
  1. 8.96
  1. Open circuit voltage(Voc)
  1. 34.9
  1. Short circuit current(Isc)
  1. 9.37
  1. Module Efficiency(%）
  1. 17.37
  1. Max system voltage
  1. DC 1500V/DC 1000V
  1. Dimensions
  1. 1480X992X35mm
  1. Weight
  1. 15.60kgs
  1. Front glass
  1. 3.2mm tempered glass
  1. Output cables
  1. 4mm²
  2. Symmetrical lengths 900mm
  1. Connectors
  1. MC4 compatible IP67
  1. Cell type
  1. Poly
  2. 156.75mmx156.75mm
  1. Number of cell
  1. 54 cells in series

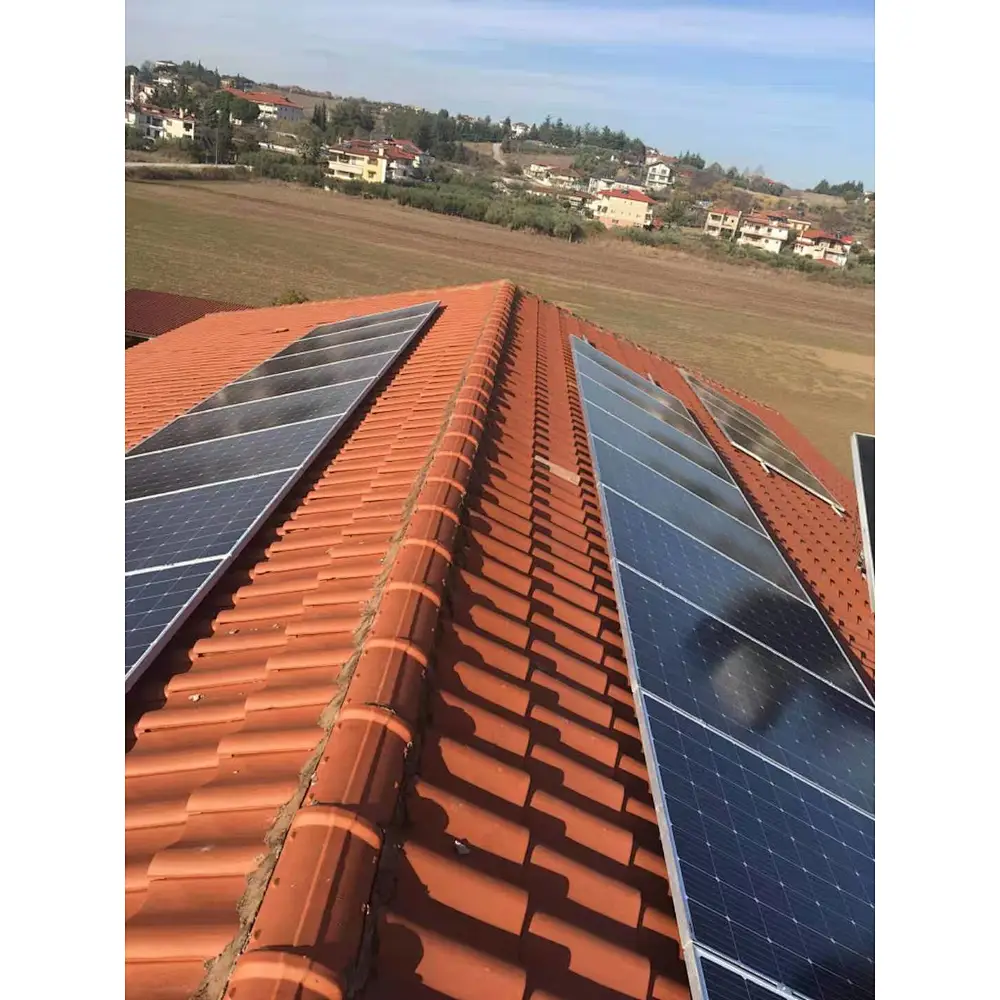

5 Busbar Solar cell adpots new technology to improve the efficiency of modules,offers a better aesthetic apperance making it perfect for rooftop installation and application

High Efficiency

Polycrystalline 54-cell module achieves a power output up to 280Wp.

PID RESISTANT

Eagle modules pass PID test, limited power degradation by PID test is guaranteed for mass production.

Temperature Coefficient

Improved temperature coefficient decreases power loss during high temperatures.

Serve Weather Resilience Certified to withstand

Wind load(2400Pa) and snow load (5400Pa)

Product Specification

Electrical parameters at standard test conditions

(STC:AM=1.5, 1000W/m2, Cells Temperature 25℃)

Our Service

1, All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2, Our sales team 24 hours online, can reply your mail in time.

3, Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4, Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

5, As long as send an order to our company , you will always be our VIP customer, we will actively in updating and adjusting the product price regularly.

Welcome to inquiry our 260W polycrystalline solar panel!!
