US $0.20 - US $0.25 / watts

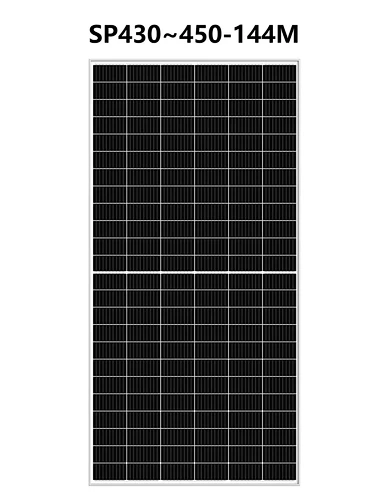

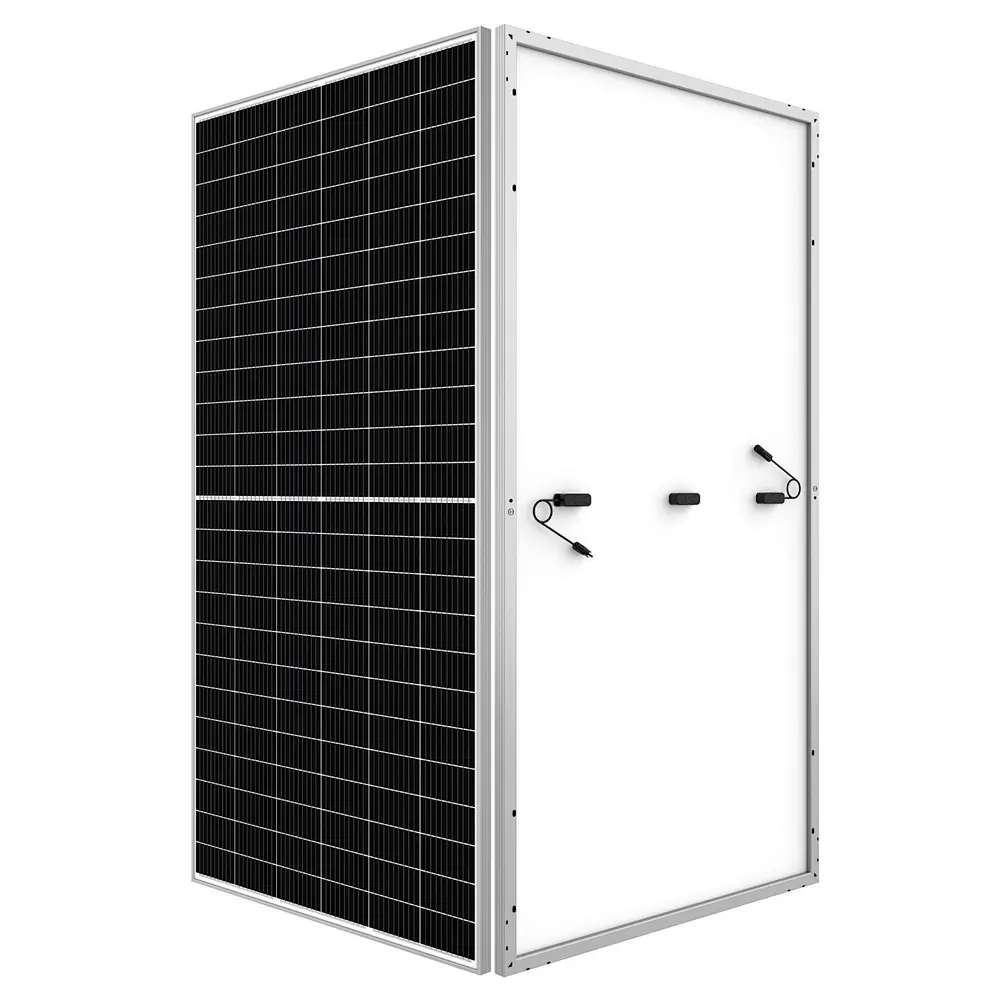

450 Watt Mono Perc Solar Panel modules

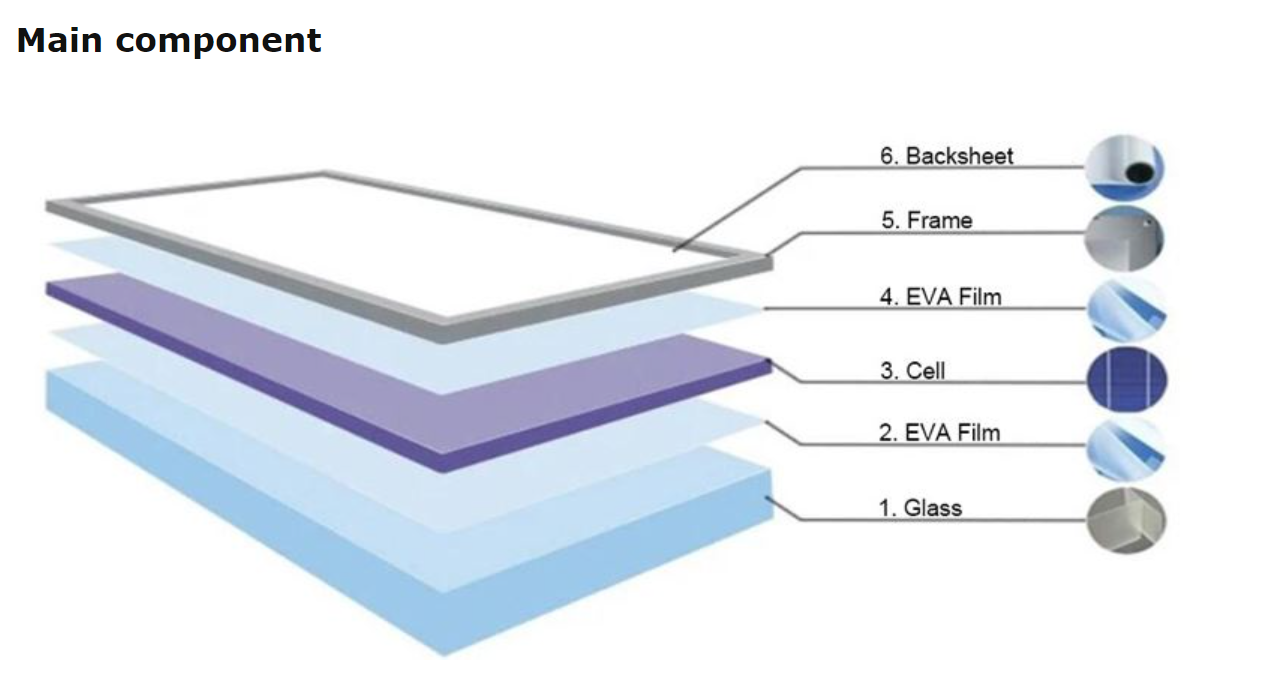

The 450w solar panels are built with strong tempered glass and an aluminum frame, it is also equipped with a completely waterproof junction box which is able to connect it with other 450 watts solar panels to compose a larger solar system. this panel is top quality assured, which has a 12-year product warranty, and 12 years 90.7% power output linear guarantee, 25 years 80.2% power output linear guarantee.
WARRANTY
12 years limited workmanship warranty.
No less than 97%output power in the first year.
No more than 0.7% annual declination since the second year.
25-year warranty at 80.2% power output.
Product liability and insurance has been covered by Solarif
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 450W |
Peak power(Pmax) | 450W |
Weight | 24.2kg |
Dimensions(mm) | 2108x1048x35 |
Max Power voltage(Vmp) | 41v |
Max Power current(Imp) | 10.98A |
Open circuit voltage(Voc) | 49.8V |
Short circuit current(Isc) | 11.56A |
Module Efficiency(%） | 20.37% |
Max system voltage | DC 1500V(TUV) |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 60 | 60 | 64 |
Pallets per container | 5 | 11 | 11 |
Pieces per container | 300 | 660 | 704 |
Application
450 watt solar panel is widely applied in residential or commercial industry.
e.g. rooftop project, ground power plant
Certication
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
Our A/S:
If you find the quality is with problem, please show us the picture, and the series no. , if it does our quality problem, we will replace a new one, or refund you the payment. But please be assured actually the possibility is less than 0.1%.
Q: What is series no.?
A: Every step of our production is recorded by series no. , it can be tracked back if there’s any quality issues
