US $0.20 - US $0.35 / watts
Power tolerance: 0~±3%
Warranties: 12 years guarantee on product quality and 25 years Linear Power output warranty.
72cells polycrystalline solar panel PV energy Poly Solar Module
For our polycrystalline PV module, we offer A-grade quality at a reasonable price. The minimum purchase amount is 325 watts. The more you buy, the greater the discount we offer. We use cartons or wooden box packaging for product transportation. Welcome to place the testing order to check the quality or for testing.
Product Specification:
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25℃)
Model Type | 325W |
Peak Power(Pmax) | 325 |
Max Power Voltage(Vmp) | 37.11 |
Max Power Current(Imp) | 8.77 |
Open circuit voltage(Voc) | 45.67 |
Short circuit current(ISC) | 9.48 |
Module Efficiency(%） | 16.75 |
Max system voltage | DC 1500V/DC 1000V |
Dimensions | 1956X992X35mm |
Weight | 22kgs |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² |
Connectors | MC4 compatible IP67 |
Cell type | Poly |
Number of cells | 72 cells in series |
Temperature Characteristics:
Item | Specification |
Temp.Coeff. of Isc(TK ISC) | 0.0495%°／C |
Temp.Cofeff.of Voc(TK Vod) | -0.2893%°／C |
Temp.Cofeff.of Pmax(TK Pmax) | -0.40%°／C |
Operate Temperature Scope | -40/+85°C |
Normal operating cell temperature | 45±2° |

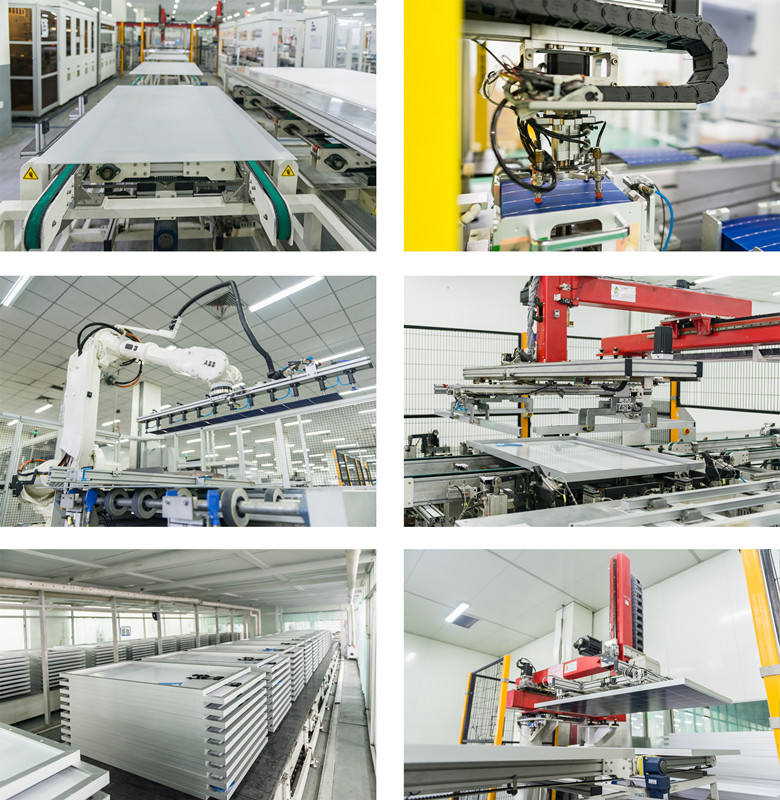

Our Factory:

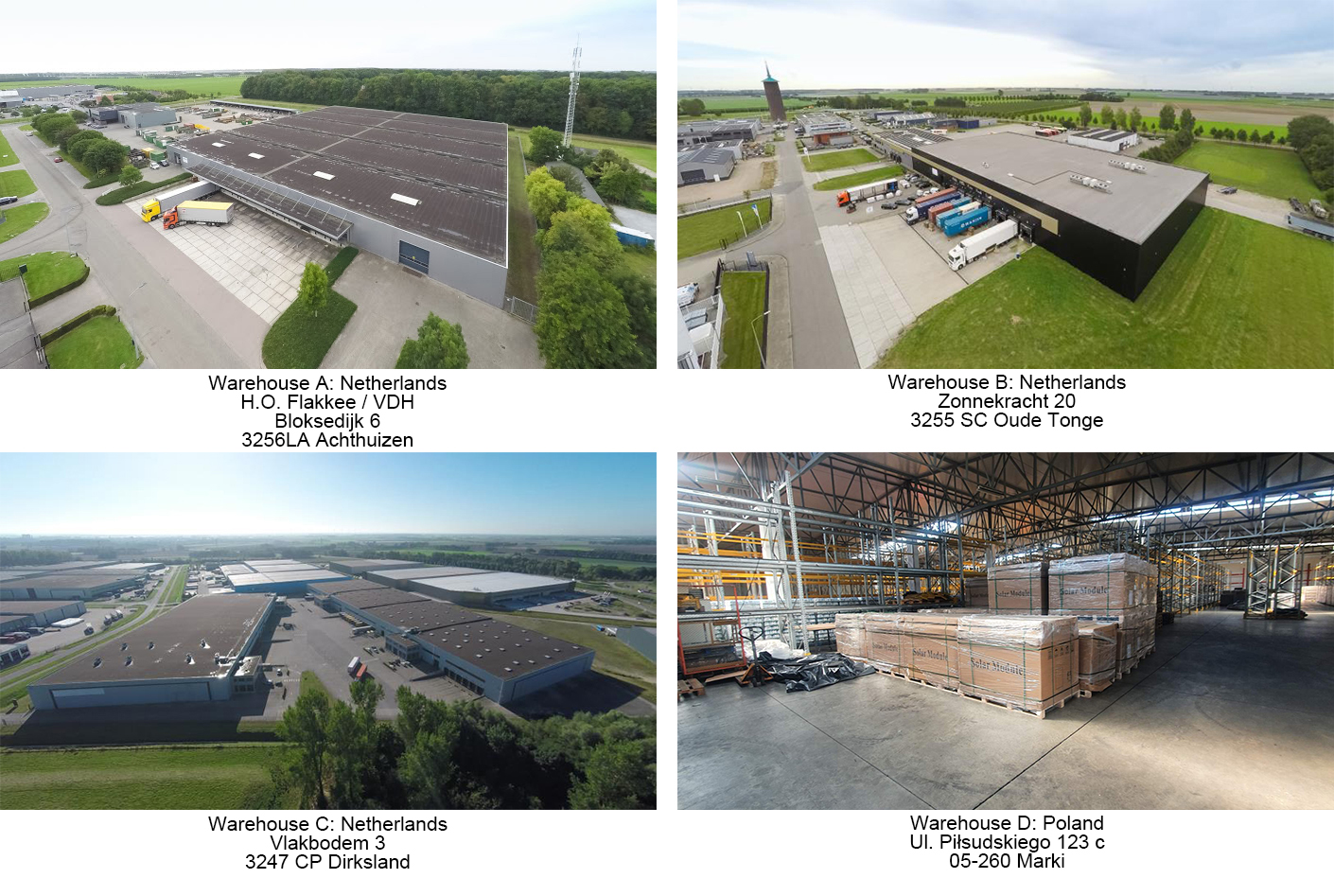

Our warehouse:
