US $0.20 - US $0.35 / watt
108 half cut cell monocrystalline silicon module
100% EL onsite inspection
12 years product warranty, 25 years
84.8% of power
SP600W-120M Solar Panel
We provide 25 years power output guarantee. During the warranty period, you can contact us if you have any questions. Monocrystalline solar cells are the most popular option on the market, as well as the most efficient form of solar cell. You can get decent levels of efficiency with monocrystalline cellsin all weather conditions.
Product specification:
Model type | 600W |
Max power | 600W |
Max Power voltage(Vmp) | 34.4V |
Max Power current(Imp) | 17.45A |
Open circuit voltage(Voc) | 41.50V |
Short circuit current(Isc) | 18.52A |
Module Efficiency(%） | 21.20% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 30A |
Mechanical Data
| Dimensions | 2172*1303*35mm |
| Weight | 30.9kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline PERC Half-Cell 12BB 105x210mm |
Connectors | Mc4 compatible IP68 |
| Number of cells | 120 cells |
Advantages:
Reduce the amount of brackets by 15%, the basic amount of brackets by 16%, and the number of combiner boxes by 31%, while reducing the amount of cables by 8% and the construction cost by 7%, thereby reducing the BOS cost by about 8 cents/W.

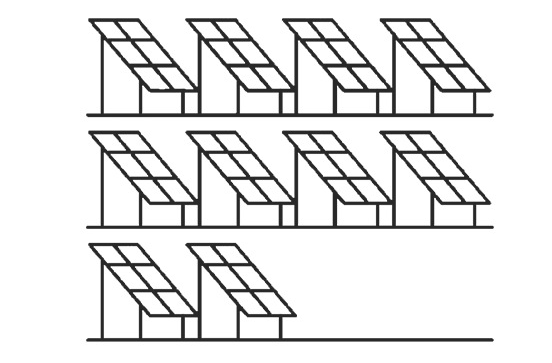

600W Modul: Steel amount for bracket: 45ton/MW, total cable length: 2.1KM/MW, total brackets: 782pcs

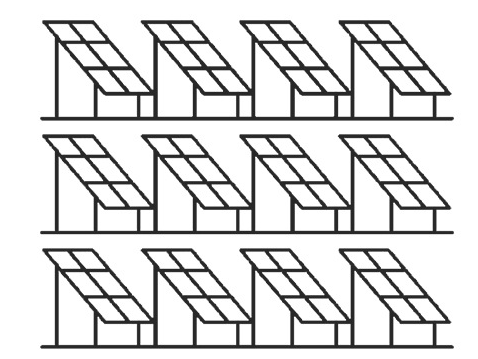

585W Modul: Steel amount for bracket：46.2ton/MW, total cable length: 2.8KM/MW, total brackets: 1070pcs
Our Office:
Comprehensive Certificates
System certs: ISO 9001, ISO14001, OHSAS 18001
Extreme wind and snow loads testing: Withstand extreme wind(2400 Pascal)
Snow loads(5400 Pascal)
Power tolerance: 0~+3%
Transport:
Accodring to the quantity and requirement of your products, we will choose Security and Economical transportation for you .
Including Sea transportation, Air transportation, Land transportation, and Express.
Welcome to inquiry the half-cut solar panel Supplier -Sunpro Power!
