US $0.20 - US $0.35 / watts
About us
Sunpro Power is an experienced manufacturer, dedicated to the production of high-quality photovoltaic solutions with A-grade solar cells. We have updated our production line to the most advanced level, tracking every step of our production and checking with the electroluminescence tester 100% of our modules to ensure the quality and reliability of our products.
Our headquarter is here in China, our branches are in Germany and UK, and we have put regular stock in Rotterdam(NL), Warsaw, and Random(PL). Fast delivery to European Union countries!
EU Stock availability
545 is one of the hot sales types in the Europe market, we have stock available in the Rotterdam warehouse, please feel free to inquire with us, the MOQ is very flexible.
M10 545W High Efficiency Mono Solar Panel
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical Type | 545W |
Max Power(Pmax) | 545 |
Max Power voltage(Vmp) | 41.69 |
Max Power current(Imp) | 13.06 |
Open circuit voltage(Voc) | 49.74 |
Short circuit current(Isc) | 13.92 |
Module Efficiency(%） | 20.09 |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Item | Specification |
Dimensions | 2279x1134x35mm |
Weight | 29kgs |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² |
Connectors | MC4 compatible IP68 |
Cell type | Mono Crystalline PERC Half-Cell |
Number of cells | 144 cells |
Packing Configuration
Item | Specification | ||
Container | 40'HQ | ||
Pieces per pallet | 62 | ||
Pallets per container | 10 | ||
Pieces per container | 620 | ||

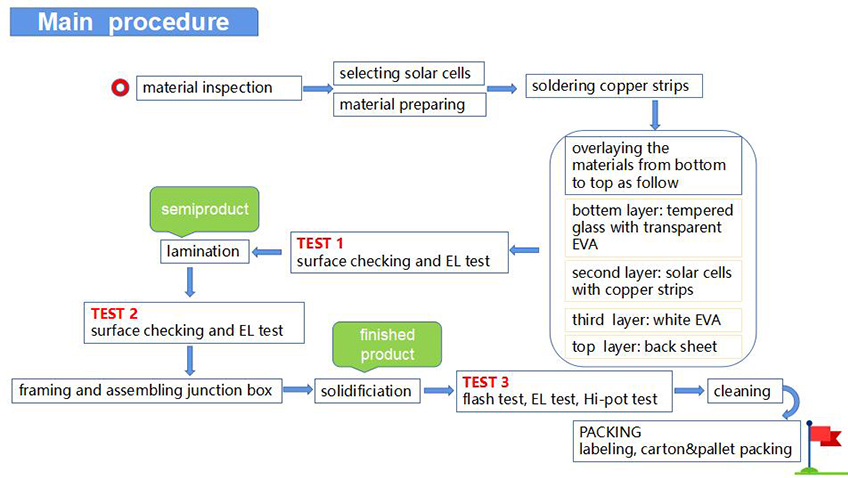

Main procedure
Tempered Glass
- Low iron, high transmission tempered glass, 3.2mm thickness.
- Light transmittance reaches 91% or more.
- The bending strength is 3-5 times of ordinary glass.
- The impact strength is 5-10 times of ordinary glass.
- Has good thermal stability, and can withstand a temperature difference of 3 times that of ordinary glass.
EVA Film- High transparency and high adhesion can be applied to various interfaces.
- Low melting point, easy to flow, can be applied to various glass lamination processes.
- Easy to store.
- Good durability against high temperatures, moisture, UV rays
Mono solar Cell
- Monocrystalline silicon, 83*166mm
TPT Backsheet
- High-pressure resistance and high insulation
- Good weather resistance, UV aging resistance ≥25 years
- Shockproof and can effectively protect the battery from breaking.

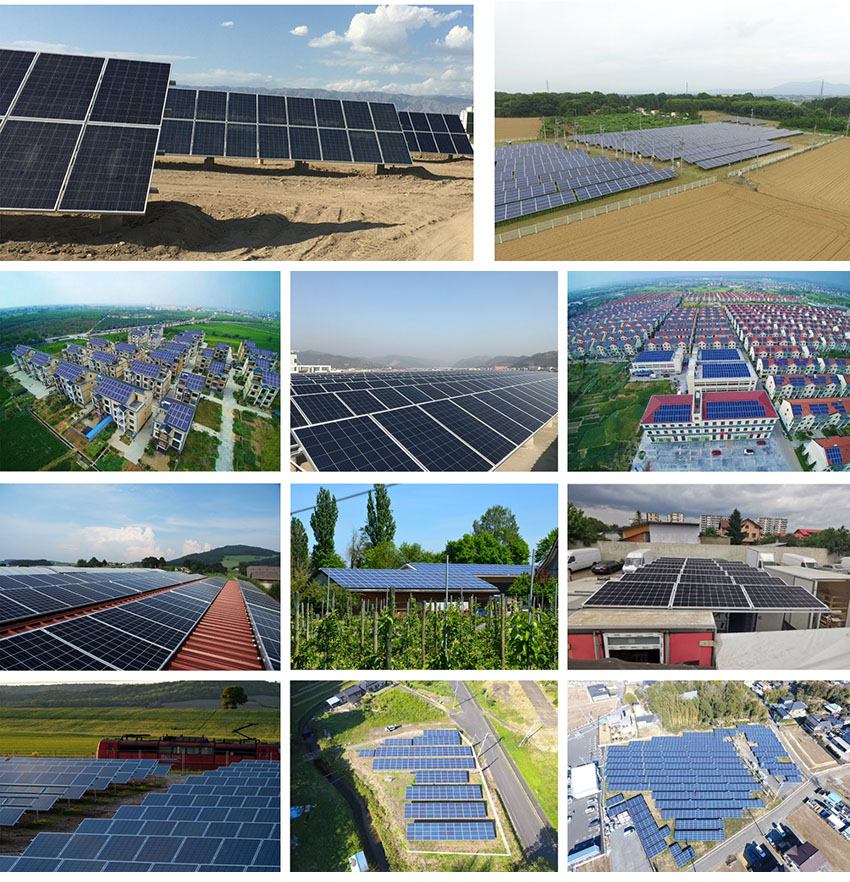

Our project
Application
545-watt solar panel is widely applied in the commercial industry, and ground projects.
e.g. ground power plant
Certification
ISO9001, ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health, and safety
Common questions:
1) What is the difference between polycrystalline and monocrystalline panels? Monocrystalline solar cells require a more complicated manufacturing process and higher energy usage than polycrystalline cells, therefore the price for a polycrystalline panel is lower.
2) How should I connect the panels: parallel or serial? That depends on you :) But it is very important to adapt the whole system to a chosen sort of connection.
3) Which battery type should I use? You can use any sort of battery type, but for the best functioning is best to use the solar battery.
4) Which charging controller should I use? That depends on the number of panels. The charge controller has to endure about 10% more current than the modules can generate at their maximum.
5) What is required when I want to connect two panels parallel? 1X MC4 plug-in, 1x Y- plug-in.
