54 cells 290W solar modules and off grid solar system
price
US $0.20 - US $0.35 / watts
SP290-54M
FOB, EXW, CIF, DDP
290 watts
1GWwatts / Year
CHINA
14Day
Power Tolerance 0~+3%
12 years production warranty, 25 years linear warranty.
12-year: 90.7% power output, 25-year: 80.2% power output.
12 years production warranty, 25 years linear warranty.
12-year: 90.7% power output, 25-year: 80.2% power output.
Quantity
290W Mono-Crystalline Solar Module
Sunpro Power is an integarted photovoltaic manufacturer focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management and strict quality control, power up to 540W. Our factory is basied in china, equiped with fully automatic production lines at 800MW annual capacity.
Production Specification
Electrical parameters at standard test conditions (STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 290W |
Max power | 290W |
Max Power voltage(Vmp) | 30V |
Max Power current(Imp) | 9.67A |
Open circuit voltage(Voc) | 36.8V |
Short circuit current(Isc) | 10.23A |
Module Efficiency(%） | 18.63% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 16A |
Mechanical Data
Dimensions | 1500x1002x35mm |
Weight | 16.1kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 54 cells |

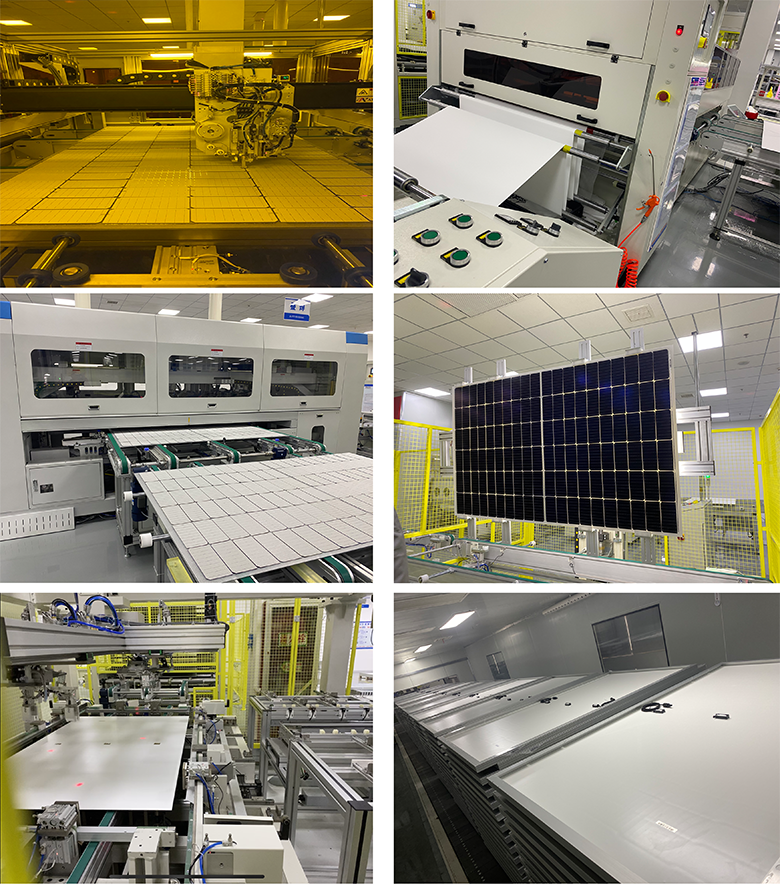

Our Factory
Our main market
In the past decades,Sunpro Power built a wide sales network in global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside portable solar system,etc.
