US $0.20 - US $0.35 / watts
48cells 240W Polycrystalline silicon Solar panel for Street light or car off grid system
The solar panel mostly used in the off grid system or some small roof project.The solar panel composed by 48 polysilicon cells, its voltage 24v.
Application Scenarios

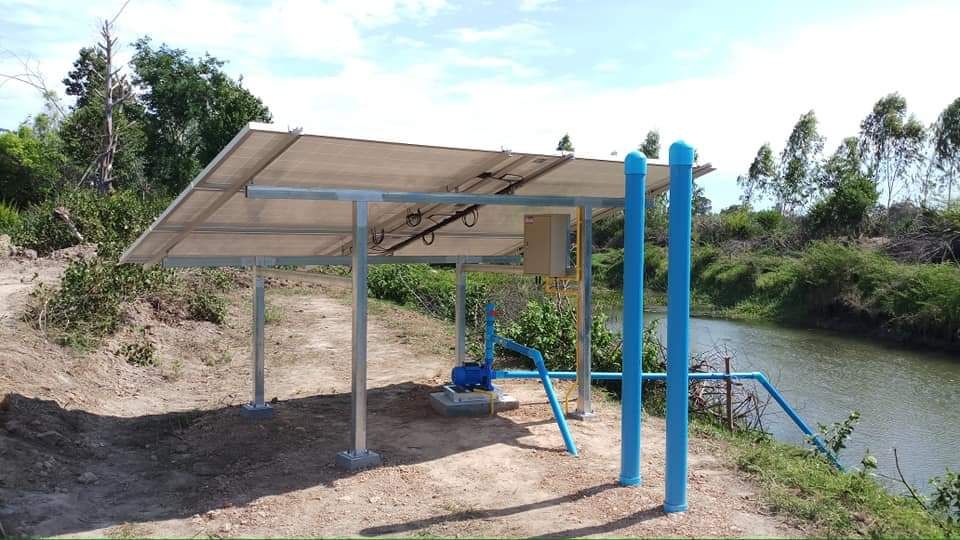

Mostly are used in the car roof, street light,solar pump and home system. It connects with off grid ,and battery, to generated elctricity.
Size is not big as big power panel ,more portable. For some small projects, it dont need more power, this 240w is the best choice.
System Introduction

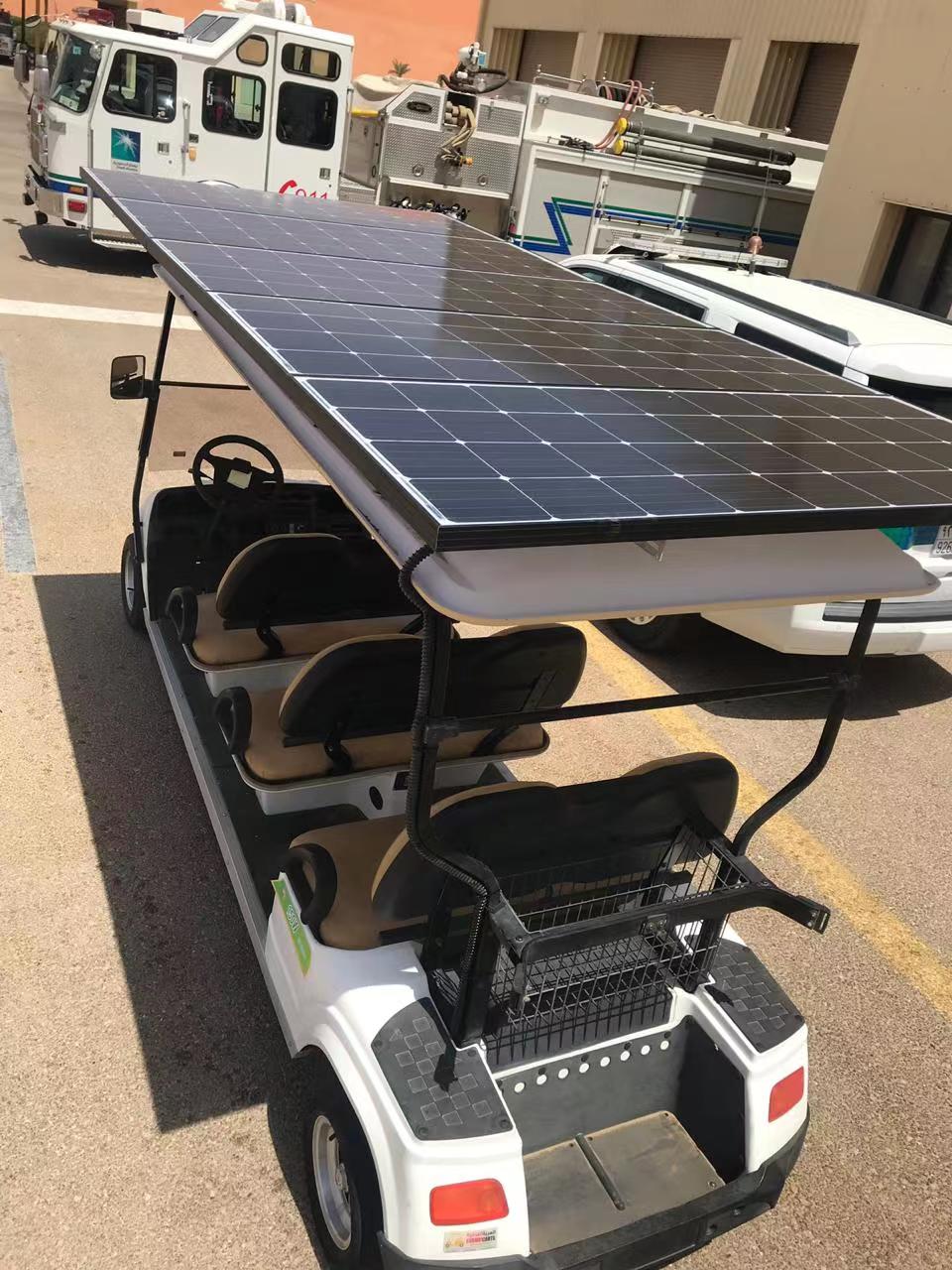

For this picture, we put the panel on the electrocar. It have many advantages.
1.Heat insulation for the passengers.
2.Save the cost of petrol
3.Most for tourism electrocar, more special for the visitors. Enhance the experience.
Datasheet
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical Type | 240W |
Max Power(Pmax) | 240 |
Max Power voltage(Vmp) | 27.8 |
Max Power current(Imp) | 8.64 |
Open circuit voltage(Voc) | 34.1 |
Short circuit current(Isc) | 9.11 |
Module Efficiency(%） | 18.32 |
Maximum Series Fuse Rating | 20A |
Certificates(For company)
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
