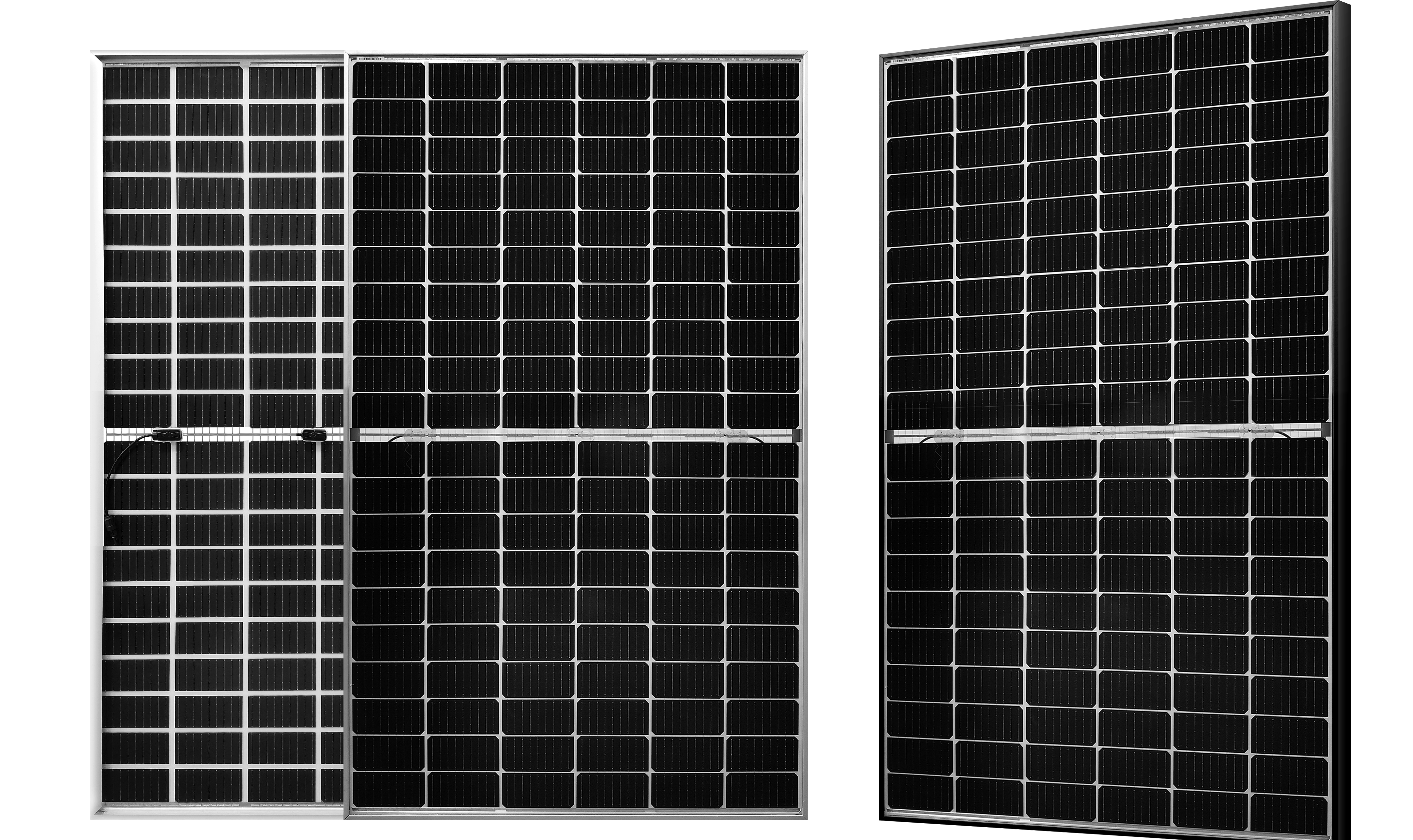

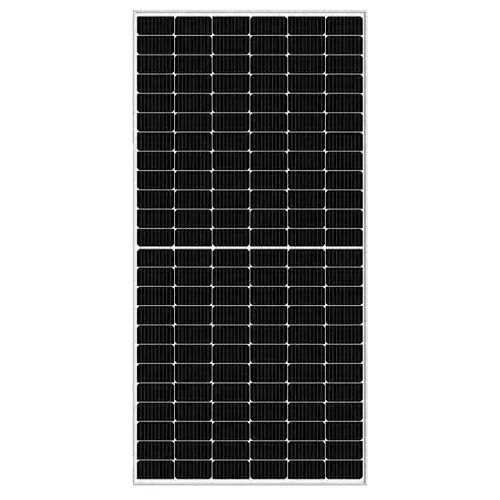

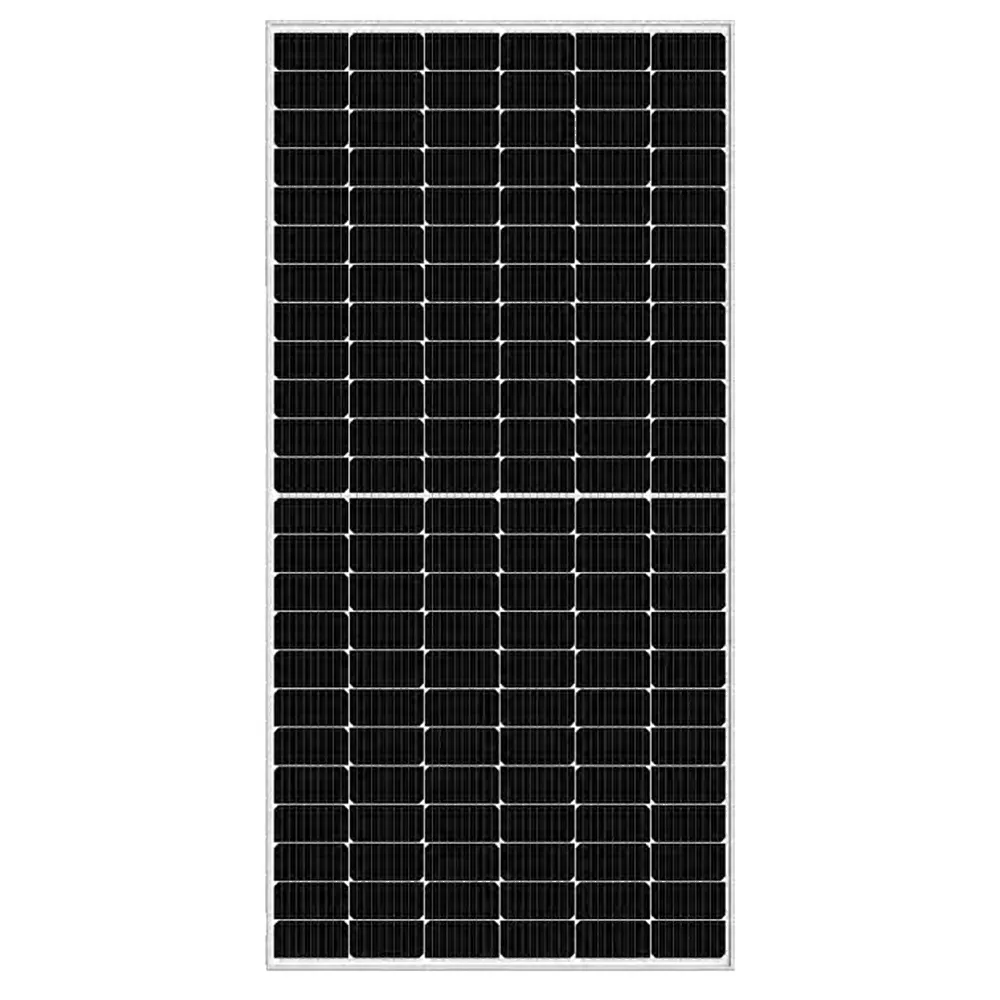

470W HJT mono solar panels bifacial power generation for ground mounting
price
US $0.20 - US $0.35 / watts
SPDG 470W-144M6T(HJT)
FOB, CIF, EXW, DDP
16920 watts
1.5Gwatts / Year
China
15Day
-9BB Half-Cut HJT Cell Technology
-Advanced Bifacial Efficiency(＞92%)
-30 Years Premium Power Warranty
-Industry Best Temperature Coefficient
-Zero PID &Extremely Low LID
-Excellent Weak Light Performance
-Advanced Bifacial Efficiency(＞92%)
-30 Years Premium Power Warranty
-Industry Best Temperature Coefficient
-Zero PID &Extremely Low LID
-Excellent Weak Light Performance
Quantity
Solar Panels Display
Heterojunction (HJT) technology was overlooked for many years, but it has been taking momentum for the last couple of years, showing its true potential. HJT solves some common limiting factors for standard photovoltaic (PV) modules, like reducing the recombination process and improving performance in hot climates.
These are some major benefits of the technology.
HJT cell has a high bifaciality factor of 92%, making HJT deliver a great performance when designed as a bifacial module. This technology is becoming more popular for utility-scale applications, which seek to take advantage of the albedo resource.
Heterojunction solar cell technology is less affected by changes in temperature. This makes it great for applications in locations with high temperatures, which can negatively affect the performance of standard c-Si modules. And withstand strong snow load 5400 Pa/, Wind load 2400 Pa
Mechanical Data
Dimensions 2094X 1038X30 mm
Weight 27.5kg
Glass (F) 2.0mm Anti - eflectivesurface Solar glass
(B) 2.0mm Solar glass
Output cables 4mm²， 200mm in length,
Cell type Mono – Crystalline, Bifacial HJT Half - Cell
Packing Configuration
Packing Configuration
Container 40'HQ
Pieces per pallet 36
Pallets per container 22
Pieces per container 792
Certifications
Quality Assurance
Sunpro Power warrants its Photovoltaic Solar Modules to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, then for a period ending 144 months from date of sale as shown in the invoice to the direct customer of Sunpro Power either repair or replace the product, or refund the purchase price as paid by the CUSTOMER. The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under the"Limited Product Warranty"and shall not extend beyond the 144 months period set forth herein. It will be performed directly to the CUSTOMER only.
Cleaning
Dust accumulation on the glass surface of the module will reduce its power output and may cause hot spots.
So the surface of PV modules should be kept clean. Maintenance work should be performed at least once six
months or frequently.
Warning: It should be carried out by trained personnel. Workers should wear PPE, such as goggles, electric
insulation gloves and safety shoes. The gloves should withstand DC voltages of no less than 2000V.
Overview

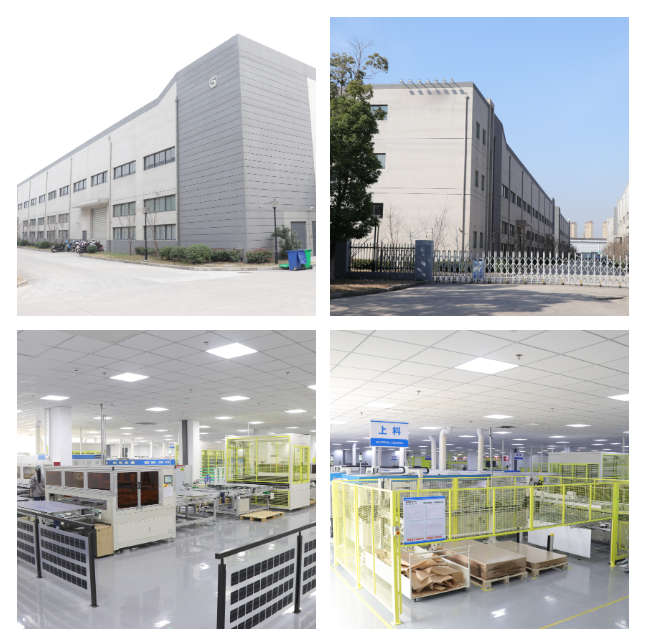

Sunpro Power, a Tier 1 PV modules manufacture, under the mission of “Power the Future”, provides the innovative solar energy solutions for the global clients. And by deep cultivating in the solar energy industry more than over 13 years, the annual capacity have already reached 1.5GW with a PV Module Auto Production Line incl. Auto cell sorting machines, Auto glass-lifting machines, EVA paving machines, EL test machines etc.

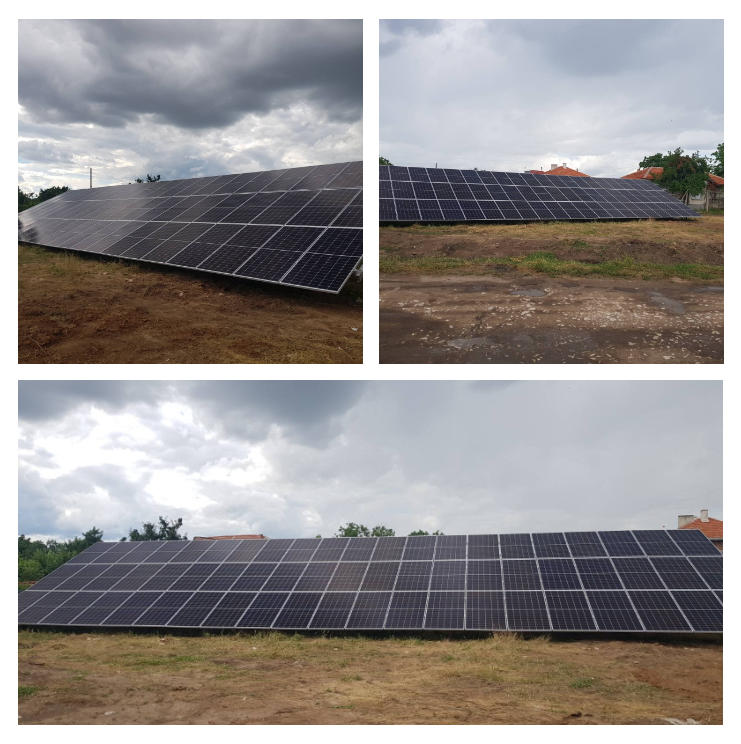

Application View
Site：Bulgaria
Heterojunction (HJT) technology was overlooked for many years, but it has been taking momentum for the last couple of years, showing its true potential. HJT solves some common limiting factors for standard photovoltaic (PV) modules, like reducing the recombination process and improving performance in hot climates.
These are some major benefits of the technology.
High efficiency
Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 22.1%.
HJT Solar panels are double-side power generation, and the rear-side efficiency can be improved by 20% with the tracking bracket.
High bifaciality
HJT cell has a high bifaciality factor of 92%, making HJT deliver a great performance when designed as a bifacial module. This technology is becoming more popular for utility-scale applications, which seek to take advantage of the albedo resource.
Good temperature coefficient
Heterojunction solar cell technology is less affected by changes in temperature. This makes it great for applications in locations with high temperatures, which can negatively affect the performance of standard c-Si modules. And withstand strong snow load 5400 Pa/, Wind load 2400 PaMechanical Data
Dimensions 2094X 1038X30 mm
Weight 27.5kg
Glass (F) 2.0mm Anti - eflectivesurface Solar glass
(B) 2.0mm Solar glass
Output cables 4mm²， 200mm in length,
length can be customized / UV Resistant
Connectors MC4 compatible IP68Cell type Mono – Crystalline, Bifacial HJT Half - Cell
9BB 166 X 83mm
Number of cells 144cells ( Half-Cell )Packing Configuration
Packing Configuration
Container 40'HQ
Pieces per pallet 36
Pallets per container 22
Pieces per container 792
Certifications
Quality Assurance
Sunpro Power warrants its Photovoltaic Solar Modules to be free from defect in materials and workmanship under normal application, installation, use and service conditions. If MODULES fail to conform to this warranty, then for a period ending 144 months from date of sale as shown in the invoice to the direct customer of Sunpro Power either repair or replace the product, or refund the purchase price as paid by the CUSTOMER. The repair or replacement or refund remedy shall be the sole and exclusive remedy provided under the"Limited Product Warranty"and shall not extend beyond the 144 months period set forth herein. It will be performed directly to the CUSTOMER only.
Cleaning
Dust accumulation on the glass surface of the module will reduce its power output and may cause hot spots.
So the surface of PV modules should be kept clean. Maintenance work should be performed at least once six
months or frequently.
Warning: It should be carried out by trained personnel. Workers should wear PPE, such as goggles, electric
insulation gloves and safety shoes. The gloves should withstand DC voltages of no less than 2000V.
Overview
Sunpro Power, a Tier 1 PV modules manufacture, under the mission of “Power the Future”, provides the innovative solar energy solutions for the global clients. And by deep cultivating in the solar energy industry more than over 13 years, the annual capacity have already reached 1.5GW with a PV Module Auto Production Line incl. Auto cell sorting machines, Auto glass-lifting machines, EVA paving machines, EL test machines etc.
Application View
Site：Bulgaria
