US $0.20 - US $0.35 / watt
Synergism EVA
4 times EL Test with 24 Megapixel HD Camera
Four steps Appearance Inspect
SPDG470-144M6T HJT 470W double glass solar module
Product specification:
Model type | 470W |
Max power | 470W |
Max Power voltage(Vmp) | 45.66V |
Max Power current(Imp) | 10.30A |
Open circuit voltage(Voc) | 53.48V |
Short circuit current(Isc) | 10.70A |
Module Efficiency(%） | 21.6% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094*1038*30mm |
| Weight | 27.5kg |
Front glass | 2.0mm+2.0mm, High Transmission, AR Coated Heat Strengthened Glass |
Output cables | 4mm² symmetrical lengths 200mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline PERC Half-Cell 12BB |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |

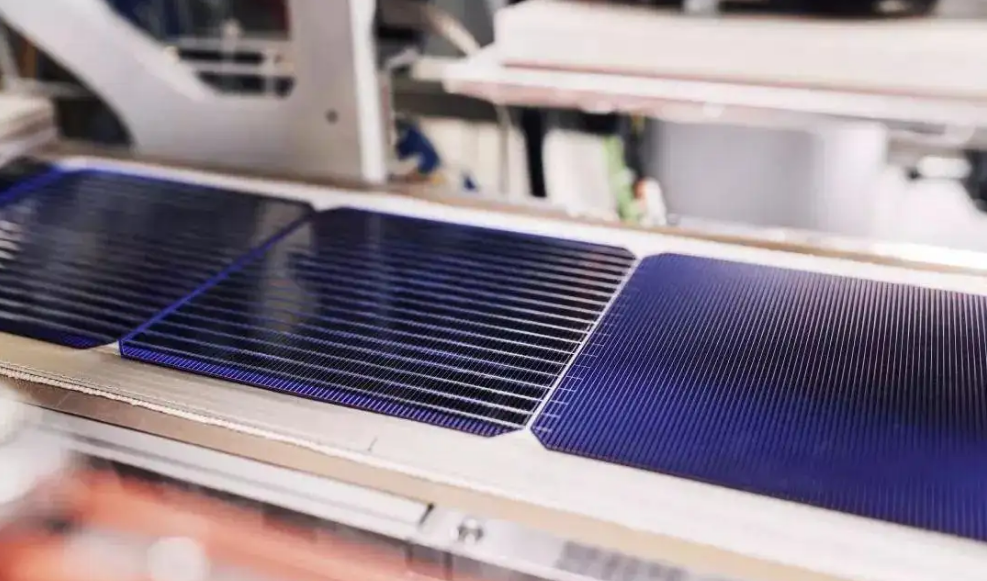

HJT Cells:
That is, amorphous silicon thin film heterojunction cells. It is a heterojunction composed of two different semiconductor materials. The crystalline silicon heterojunction solar cell (HJT) is a thin film of amorphous silicon deposited on crystalline silicon. It combines the advantages of crystalline silicon cells and thin film cells, and has the advantages of high conversion efficiency, low process temperature, high stability, low decay rate, With the advantages of double-sided power generation, the technology is subversive.
Why HJT？
The essence of cell technology iteration is that cost reduction and efficiency improvement, high efficiency and low cost are the direction of development.
HJT is the development direction of a new generation of cell technology because of its high photoelectric conversion efficiency, high bifacial ratio, simplified equipment process, low product light attenuation, strong stability, large space for cost reduction and efficiency enhancement, and broad prospects.
About us
Sunpro Power is an experienced manufacturer, dedicated to the production of high-quality photovoltaic solutions with A-grade solar cells. We have updated our production line to the most advanced level, tracking every step of our production and checking with electroluminescence tester 100% of our modules to ensure the quality and reliability of our products. Our headquarter is here in China, our branches are in Germany and UK, we have put regular stock in Rotterdam(NL), Warsaw and Random(PL). Fast delivery to European Union countries!

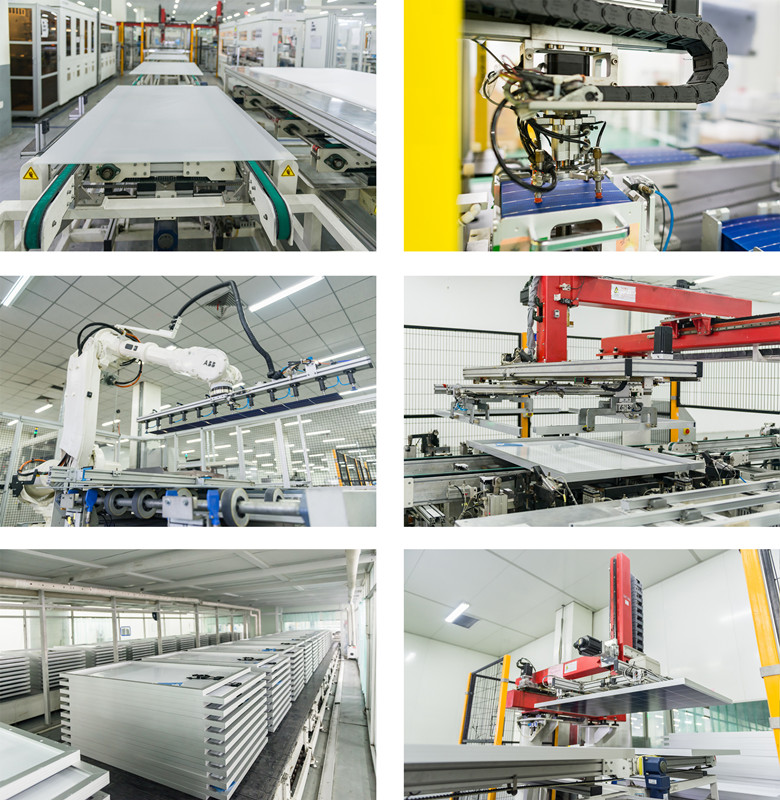

Our factory
Sunpro had set up a industry-leading automatic photovoltaic module production line , which including automatic cell sorting machines、automatic glass-lifting machines、EVA paving machines、automatic single welding&series welding machines、EL test machines、automatic edge trimmer、automatic integrated sealant&framing machines、automatic integrated durable &insulated grounding continuity test machines and etc with capacity 1.5GW per year.
Technology Advantage
1.LOW LID(Silicon Wafer With Ga)
2.Synergism EVA
3.100% EL Test With 24 Megapixel HD Camera
4.Four Steps Appearance Inspect
5.MBB Cells Increase 10W
| Consistency appearance A Grade cells Anti-Pid resistant |
| Silver or black color is optional Aluminum Alloy Frame Boost bearing capability and prolong the service life Serrated-clip design tensile strength |
| 12% ultra clear tempered glass 30% lower reflection 3.2mm thickness >91% higher transmittance high mechanical strength |
| IP67(IP65/IP68) Waterproof level The quality diode ensures module running safety -40℃ to +85 ℃ temperature range innovative full-glue-filled junction box |
