US $0.20 - US $0.35 / watts
Withstand strong snow load 5400 Pa / wind load 2400 Pa
Excellent low light performance
100% EL online inspection
Product Guarantee:12-year
Linear Performance Warranty

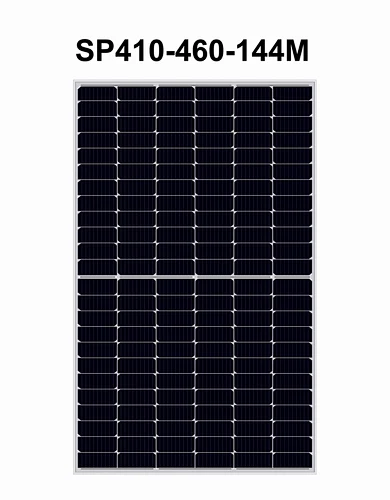

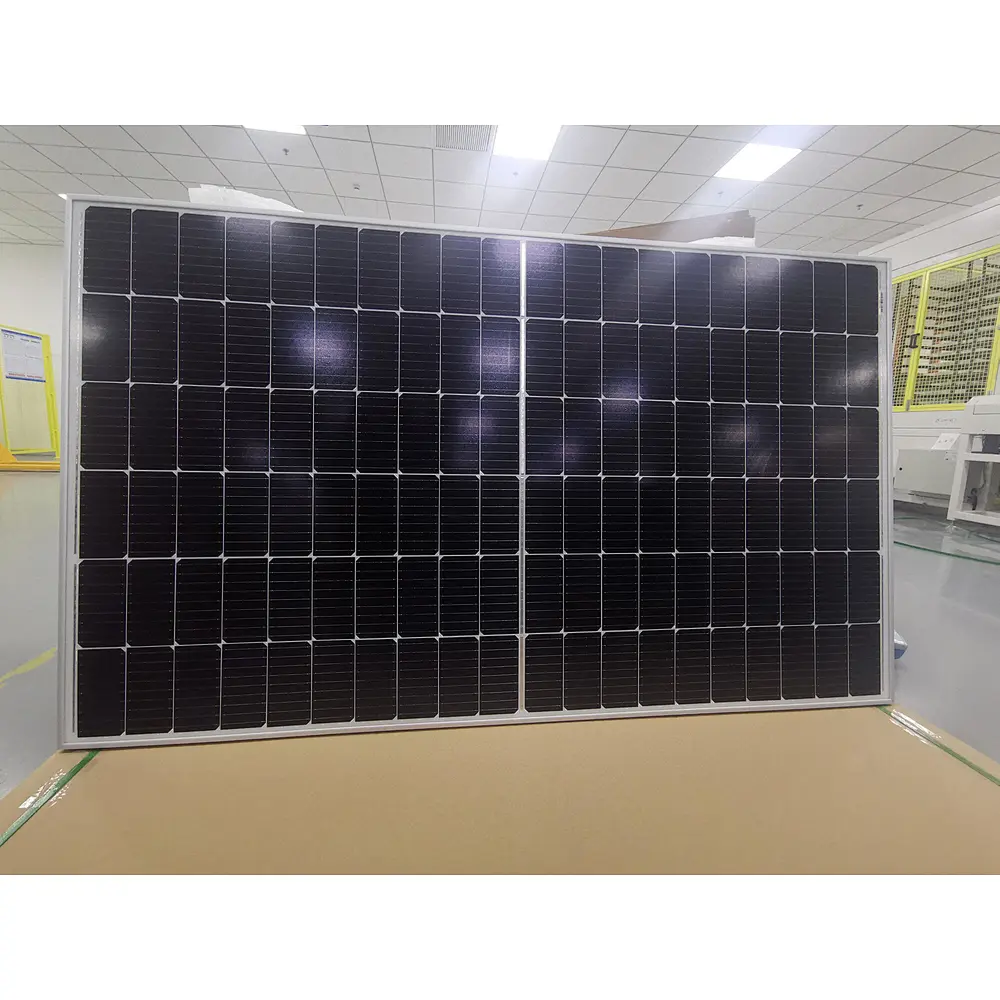

435W 144cells half cut Monocrystalline Solar Panel
China monocrystalline solar panel(36cells-144cells) supplier. We provide 25 years power output guarantee. During the warranty period, you can contact us if you have any questions. Monocrystalline solar cells are the most popular option on the market, as well as the most efficient form of solar cell. You can get decent levels of efficiency with monocrystalline cellsin all weather conditions.
Product specification:
Model type | 435W |
Max power | 435W |
Max Power voltage(Vmp) | 40.6V |
Max Power current(Imp) | 10.59A |
Open circuit voltage(Voc) | 49.4V |
Short circuit current(Isc) | 11.11A |
Module Efficiency(%） | 20.01% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094x1038x35mm |
| Weight | 23.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |
Technology Advantage
1.LOW LID(Silicon Wafer With Ga)
2.Synergism EVA
3.100% EL Test With 24 Megapixel HD Camera
4.Four Steps Appearance Inspect
5.MBB Cells Increase 10W
| Consistency appearance A Grade cells Anti-Pid resistant |
| Silver or black color are optional Aluminum Alloy Frame Boost bearing capability and prolong service life Serrated-clip design tensile strength |
Glass
| 12% ultra clear tempered glass 30% lower reflection 3.2mm thickness >91% higher transmittance high mechanical strength |
Junction Box
| IP67(IP65/IP68) Waterproof level Quality diode ensures module running safety -40℃ to +85 ℃ temperature range innovative full-glue-filled junction box |
Packing Configuration
Item | Specification |
Container | 40’HQ |
Pieces per pallet | 64 |
Pallets per container | 11 |
Pieces per container | 704 |
Comprehensive Certificates
System certs: ISO 9001, ISO14001, OHSAS 18001
Extreme wind and snow loads testing: Withstand extreme wind(2400 Pascal)
Snow loads(5400 Pascal)
Power tolerance: 0~+3%
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
