US $0.20 - US $0.35 / watts
Withstand strong snow load 5400 Pa / wind load 2400 Pa
Excellent low light performance
100% EL online inspection
Product Guarantee:12-year
Linear Performance Warranty
A GRADE 430W 144cells half-cut PERC mono solar panel solar projects
Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk. We offer OEM service, and small trial orders, swift pre-service, and after-sales service, welcome to inquiry with us.
Half-cut solar cells advantages:
By cutting solar cells in half, the current generated from each cell is halved, and lower current flowing leads to lower resistive losses as electricity moves throughout cells and wires in a solar panel.
2. Higher shade tolerance
Typically, cells in a standard panel are connected in 3 rows. shading of a single cell might put the whole row out of action, thus affecting a third of the total power output. on the other hand, split cells panels have twice more rows. therefore, the shading of one cell affects only a sixth of the total power output.
3. Less hot spots
When one solar cell in a panel cell string is shaded, all the preceding unshaded cells can dump the energy they produce into the first shaded cell as heat. this creates a hot spot that can potentially damage the solar panel if it lasts for a long time. Twice as many panel cell strings mean only half as much heat. The lower heat production should be less damaging to the panel so there would be an improvement in resistance to hot spot damage and increases the module longevity.

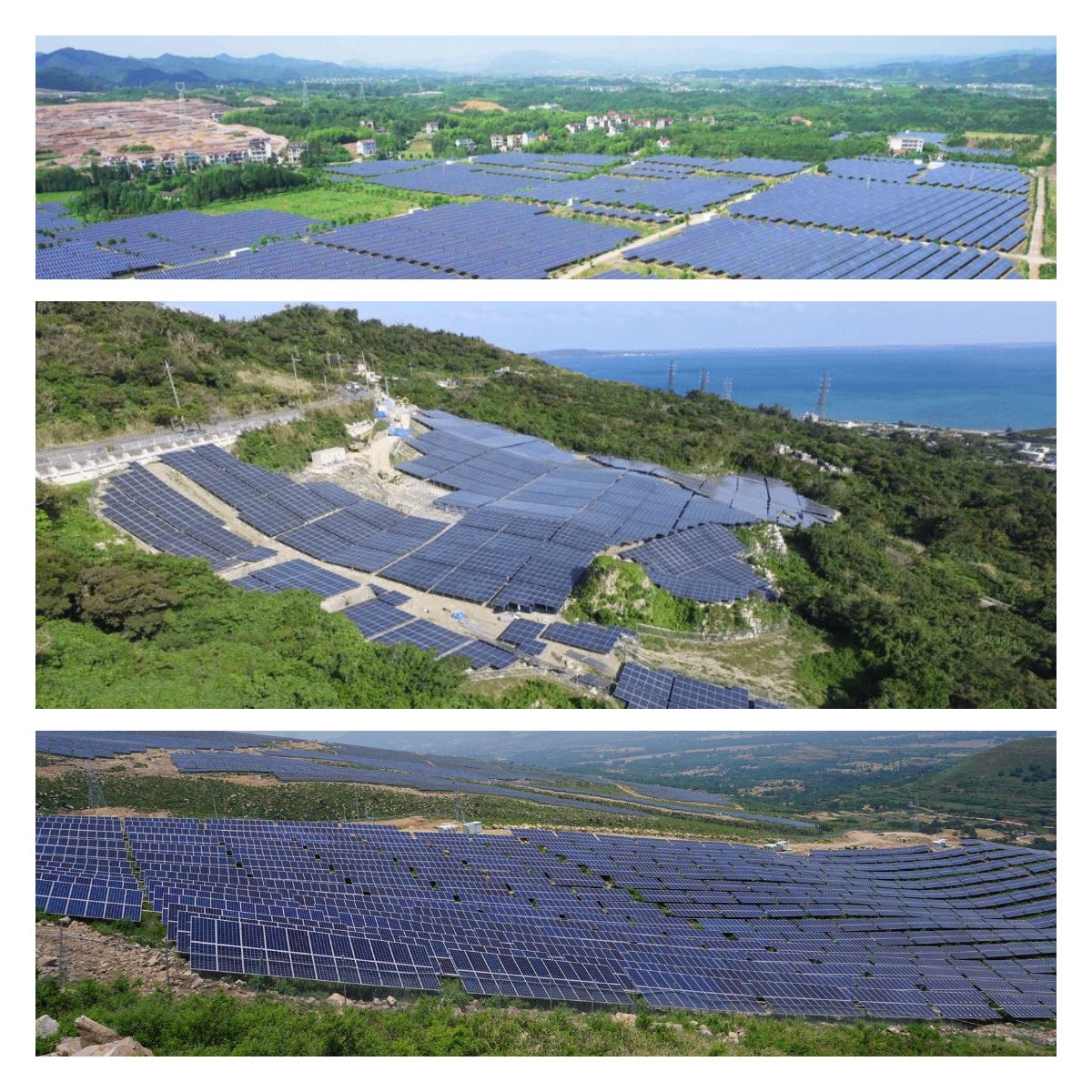

144 half-cut cells 450W is a hot choice for big power plants.
Product specification:
Model type | 430W |
Max power | 430W |
Max Power Voltage(Vmp) | 40.6V |
Max Power Current(Imp) | 10.59A |
Open circuit voltage(Voc) | 49.4V |
Short circuit current(ISC) | 11.11A |
Module Efficiency(%） | 20.01% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094x1038x35mm |
| Weight | 23.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |
About us
Sunpro Power is an experienced manufacturer, dedicated to the production of high-quality photovoltaic solutions with A-grade solar cells. We have updated our production line to the most advanced level, tracking every step of our production and checking with electroluminescence tester 100% of our modules to ensure the quality and reliability of our products.

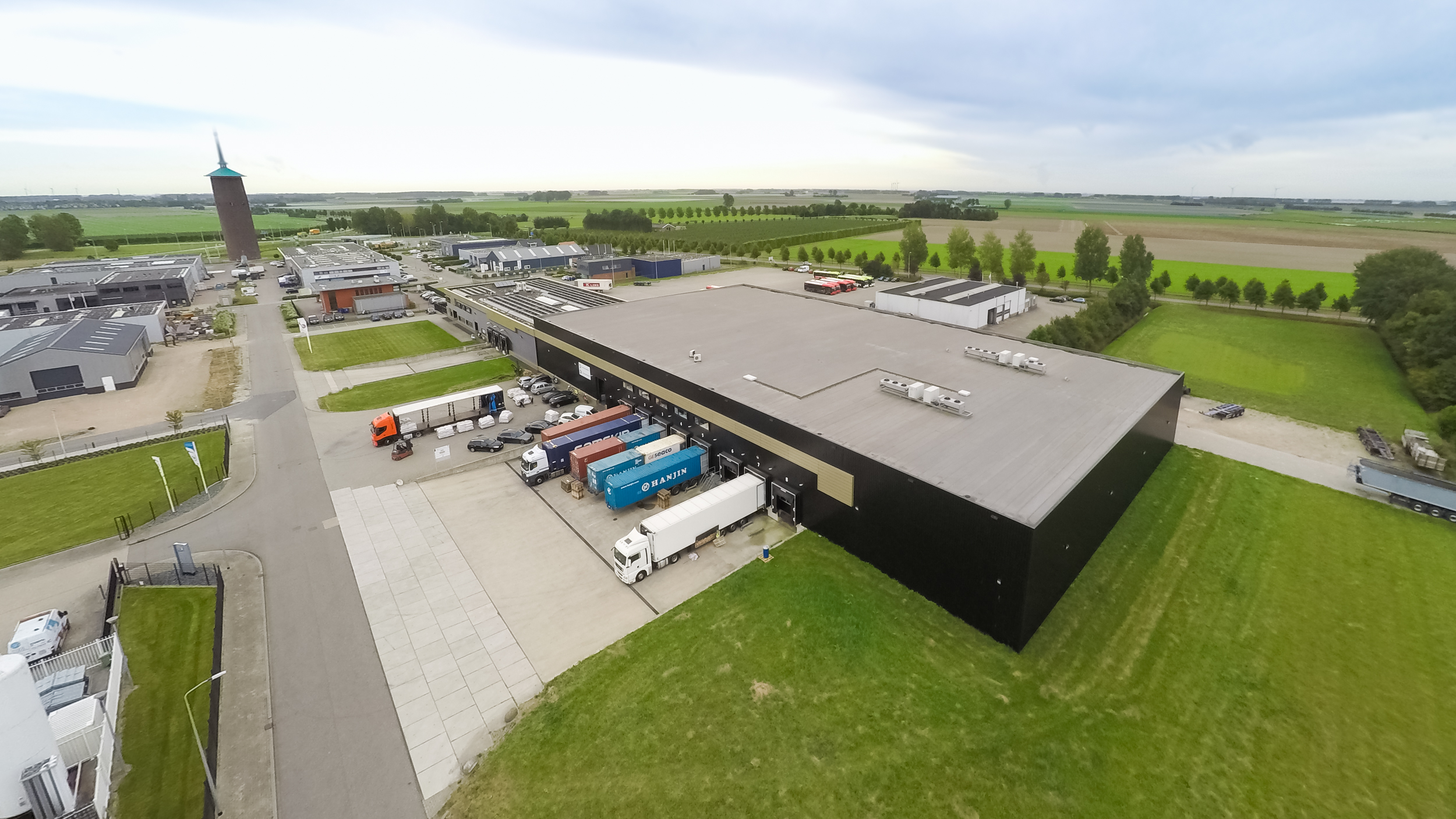

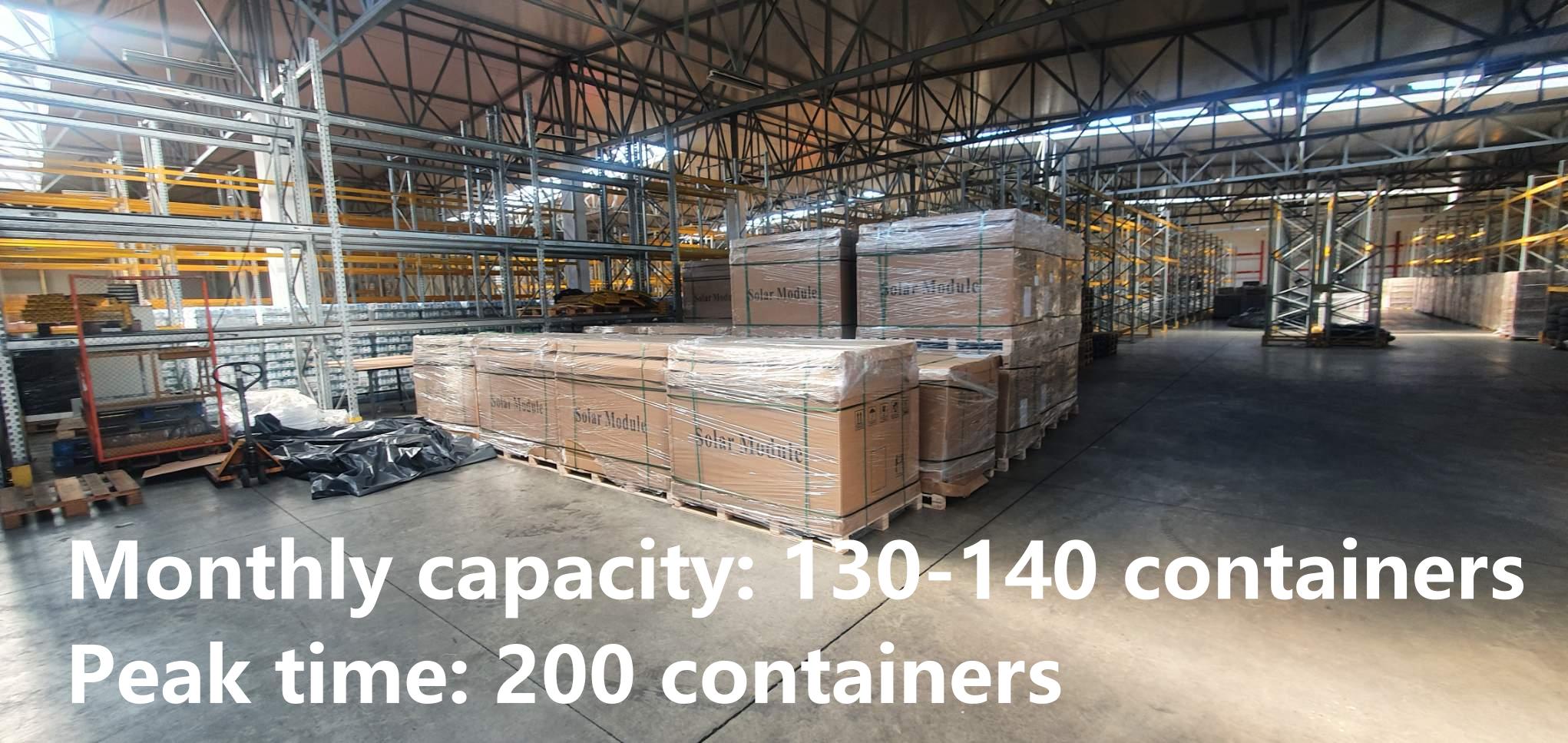

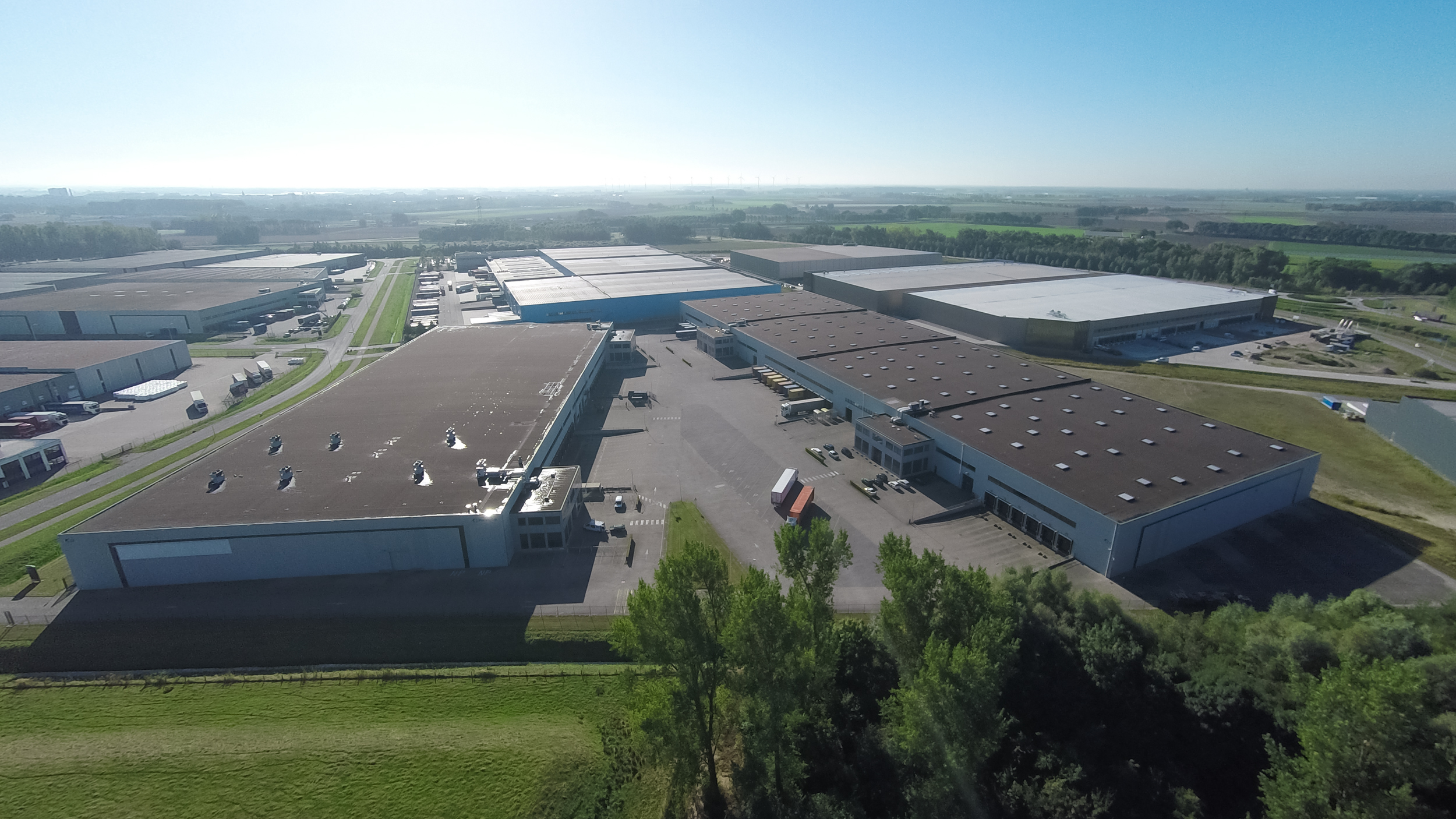

Our headquarter is here in China, our branches are in Germany and UK, we have put regular stock in Rotterdam(NL), Warsaw and Random(PL). Fast delivery to European Union countries, Option for EXW and DDP.
System certs:ISO 9001, ISO14001, OHSAS 18001
Product certs: TUV.IEC61215, TUV.IEC61730
