US $0.20 - US $0.35 / watts

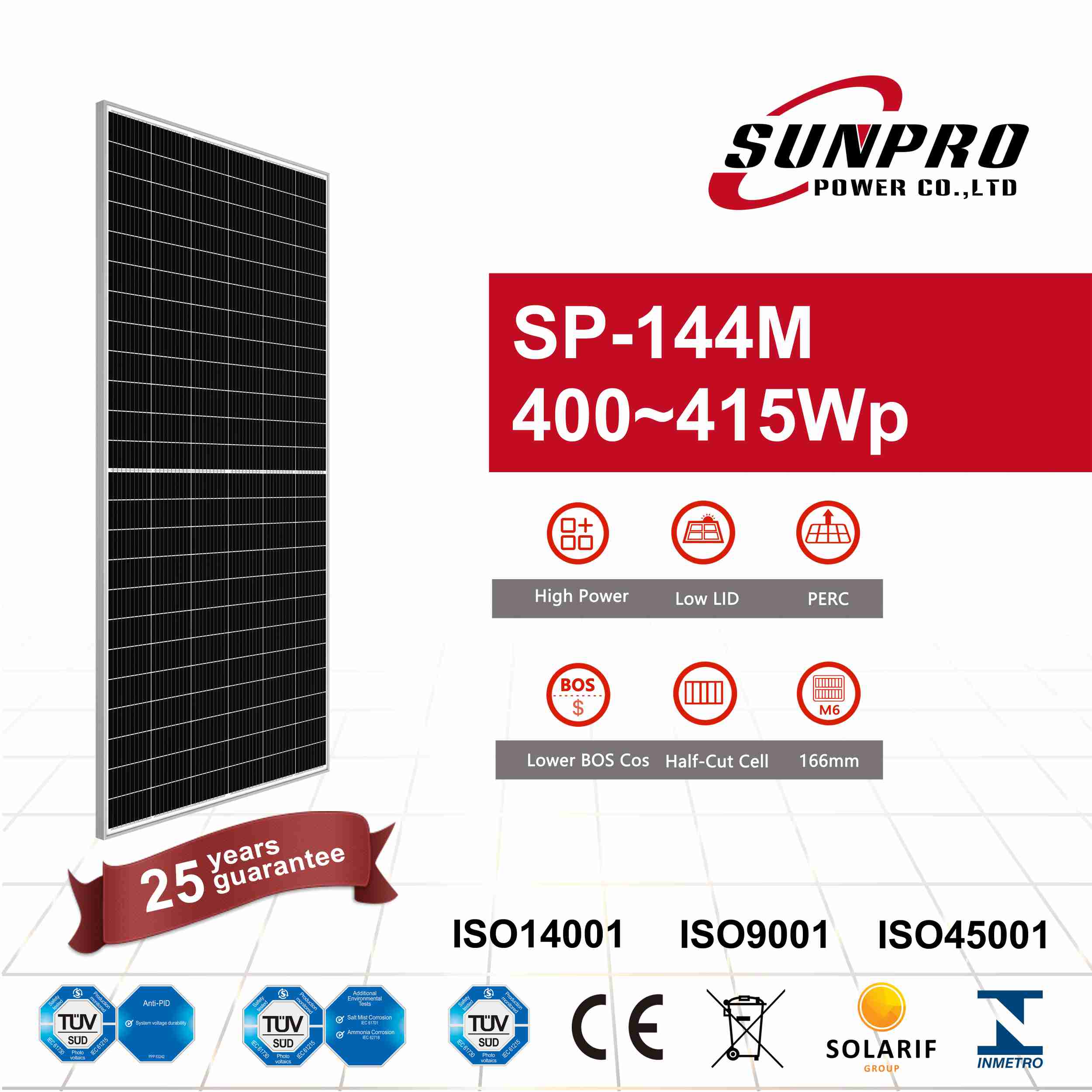

410W High Efficiency Half Cut Mono Solar Panel
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical Type | 410W |
Max Power(Pmax) | 410 |
Max Power voltage(Vmp) | 40.8 |
Max Power current(Imp) | 10.05 |
Open circuit voltage(Voc) | 49.7 |
Short circuit current(Isc) | 10.55 |
Module Efficiency(%） | 20.18 |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Item | Specification |
Dimensions | 2024x1004x35mm |
Weight | 22.5kgs |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² |
Connectors | MC4 compatible IP68 |
Cell type | Mono Crystalline PERC Half-Cell |
Number of cells | 144 cells |
Packing Configuration
Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 60 | 60 | 64 |
Pallets per container | 5 | 11 | 11 |
Pieces per container | 300 | 660 | 704 |
Main procedure
Our project
Application
410 watt solar panel is widely applied in residential or commercial industry.
e.g. rooftop project, ground power plant
Certication
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
Our A/S:
If you find the quality is with problem, please show us the picture, and the series no. , if it does our quality problem, we will replace a new one, or refund you the payment. But please be assured actually the possibility is less than 0.1%.
Q: What is series no.?
A: Every step of our production is recorded by series no. , it can be tracked back if there’s any quality issues.
