US $0.20 - US $0.25 / watts

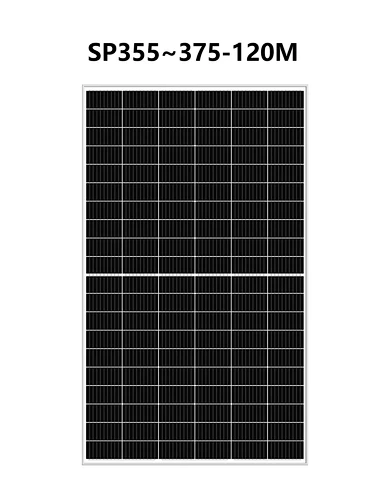

375 Watt Mono Perc Solar Panel
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 370W |
Peak power(Pmax) | 370W |
Weight | 20.2kg |

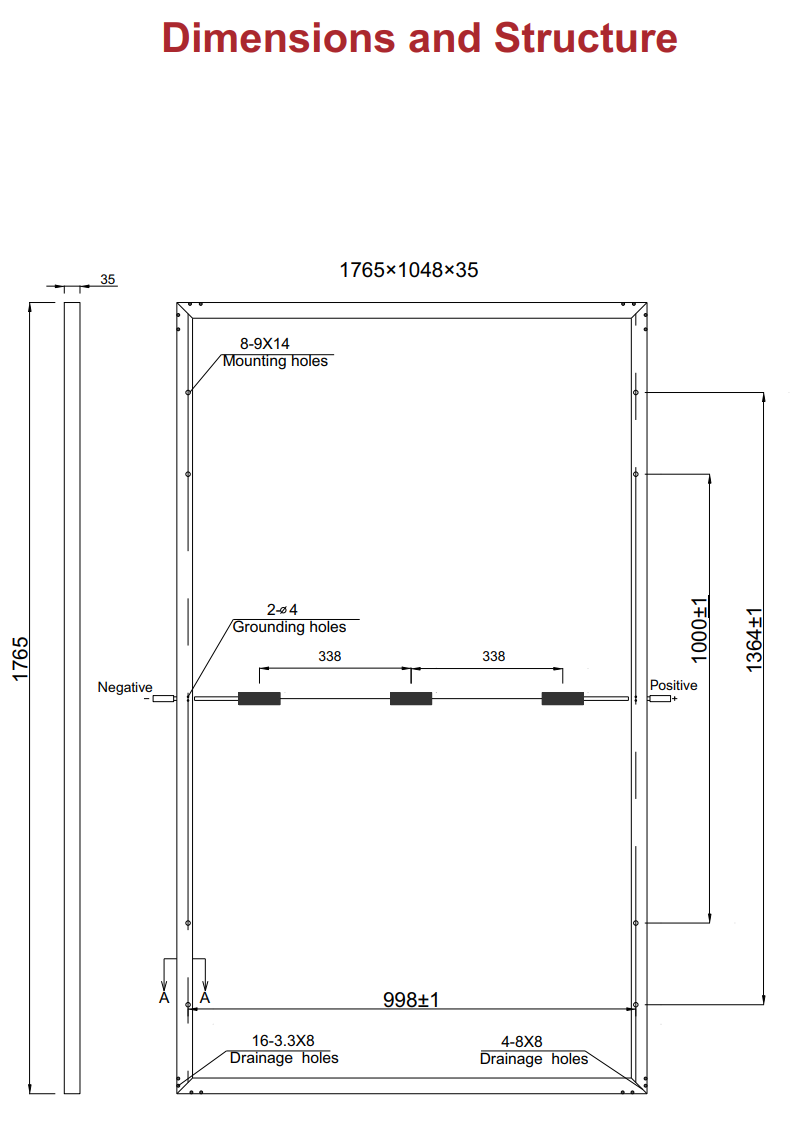

Dimensions(mm) | 1765x1048x35 |
Max Power voltage(Vmp) | 34.1v |
Max Power current(Imp) | 10.50A |
Open circuit voltage(Voc) | 41.4V |
Short circuit current(Isc) | 11.41A |
Module Efficiency(%） | 20.00% |
Max system voltage | DC 1500V(TUV) |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 900mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 58 | 60 | 64 |
Pallets per container | 6 | 13 | 13 |
Pieces per container | 348 | 780 | 832 |
Application

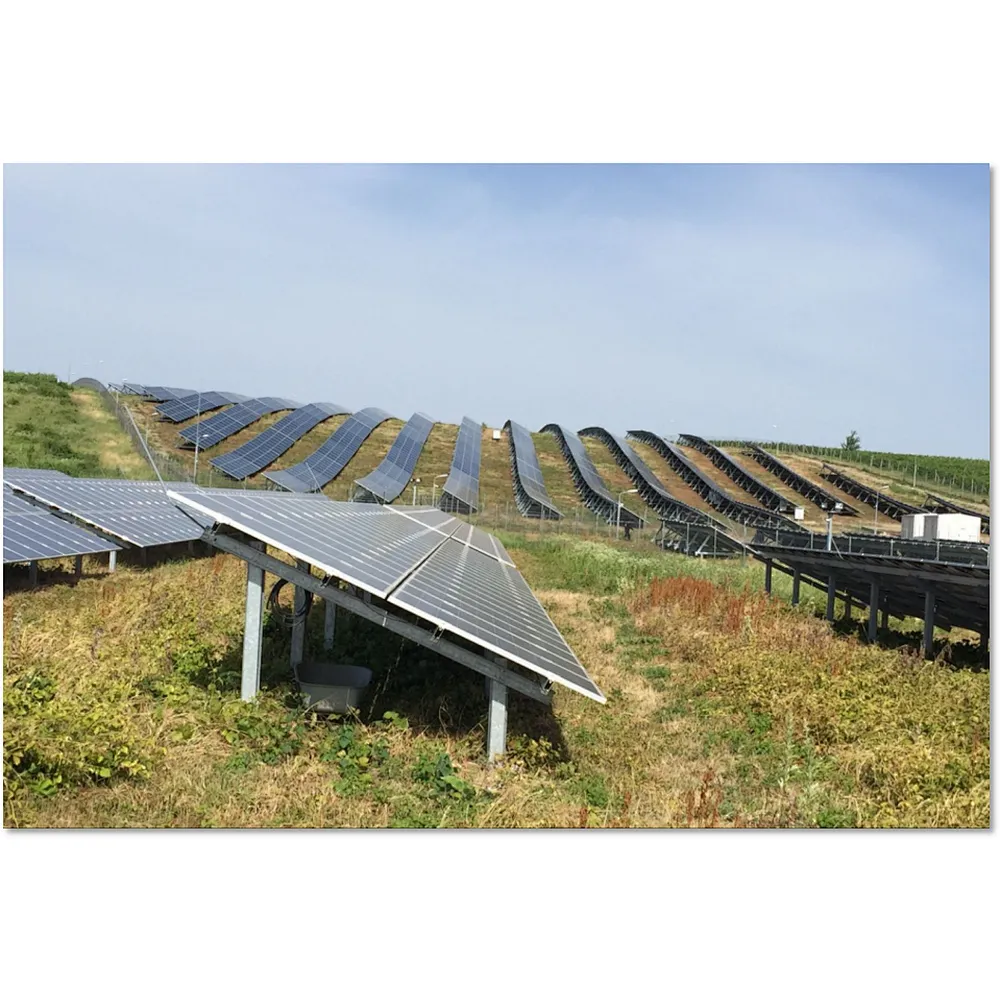

180 watt solar panel can be applied in RV, Boat, Back-up power, Cabin, commercial and residential.
Main procedure
Production capacity
Our lastest annual capacity is 800MW.
Main export market: Germany, Sapin, Poland, Italy, Pakistan, UAE, etc.
Certication
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
Ammonia & Salt resistance PID free
Our service
1. Our company can provide A grade quality panels with full warranty, competitive price and good after-sales service
2. 12 years quality assurance, 25 years power output warranty
3. Provide the authoritative testing report of products and other technical support.
4. Help clients to purchase the complete accessories, such as batteries, inverter etc. from our partners
5. Accept OEM for our clients.
