US $0.20 - US $0.35 / watt
High efficiency 365w mono semi half cut
Production Introduction
This 365w mono solar panel is made by 166mm(M6) cells. It uses half cut technology, and synergism EVA,which make the power higher enough.
This type widely used for roof proejct,which is easy to carry meanwhile it is with high efficiency reducing BOS cost.
Product Specification
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical Type | 365W |
Max Power(Pmax) | 365 |
Max Power voltage(Vmp) | 34 |
Max Power current(Imp) | 10.74 |
Open circuit voltage(Voc) | 41.3 |
Short circuit current(Isc) | 11.3 |
Module Efficiency(%） | 20.04% |
Weight | 19.5kg |
Maximum Series Fuse Rating | 20A |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 55 | 55 | 66 |
Pallets per container | 6 | 13 | 13 |
Pieces per container | 330 | 715 | 858 |

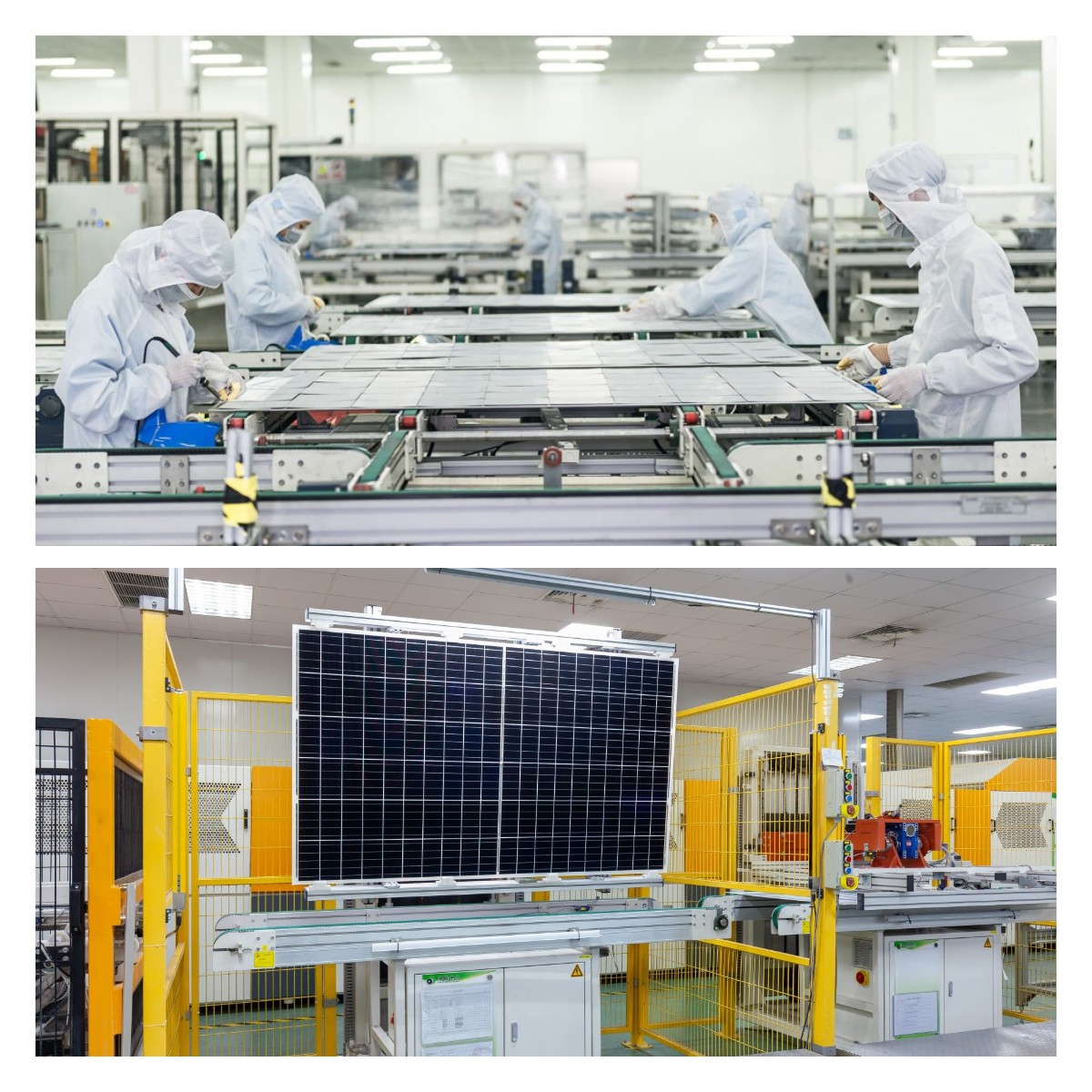

Advanced Equipment And Technology with Strict Quality Control
1.LOW LID(Silicon Wafer With Ga)
2.Synergism EVA
3.100% EL Test With 24 Megapixel HD Camera(Three EL test)
4.Four Steps Appearance Inspect(Ensure no dirty inside of panel)
5.Production line is compatible with 166mm(G6),182mm(M10),210mm(G12) cell ，which can offer you different type module.
6.Professional quality control team, incoming quality control ,produce process monitoring and final products inspect.

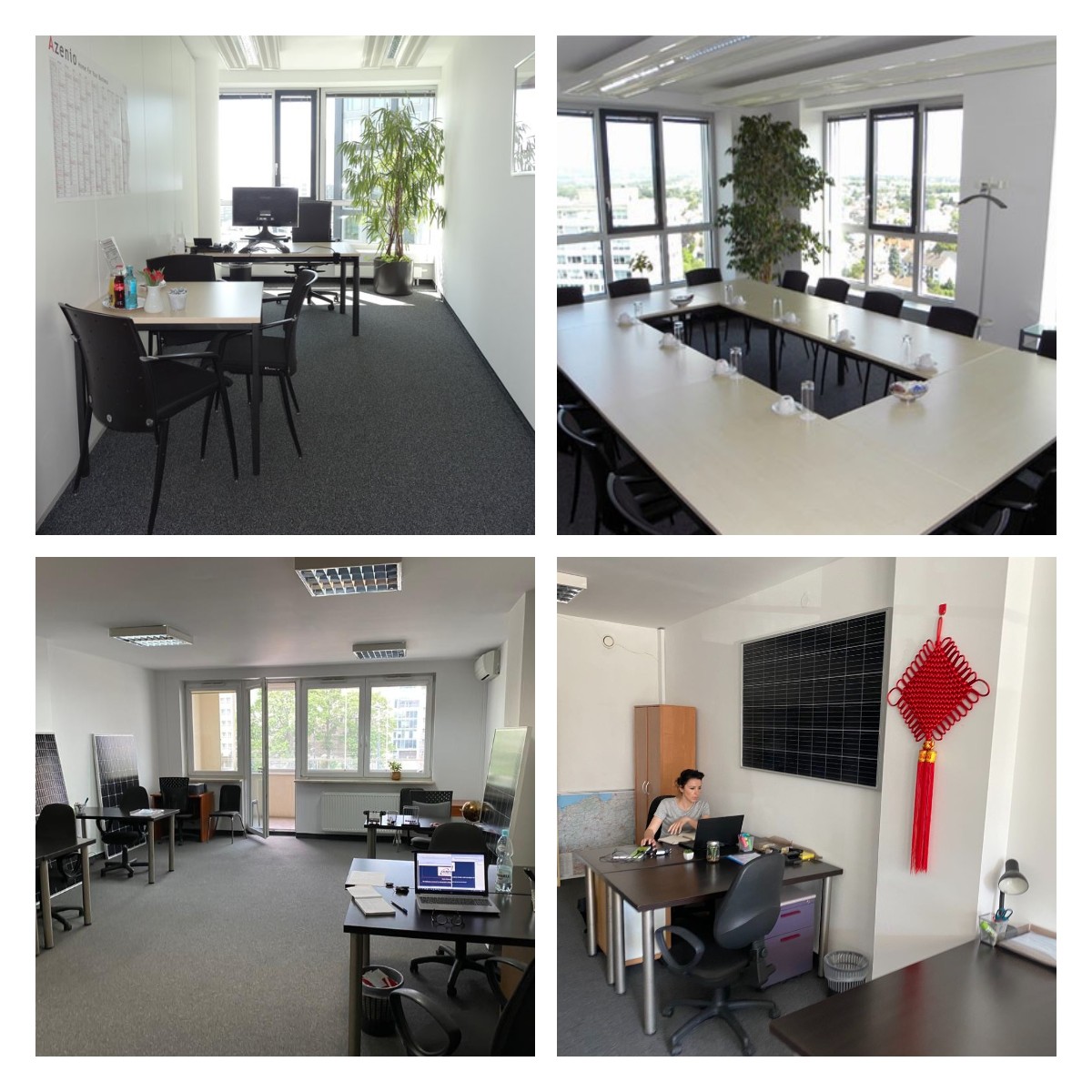

Our European office(Germany, Poland)
Offer you fast ,efficient and timely service by our local colleagues.
Poland office is in Warsaw. Germany office is in Frankfurt.

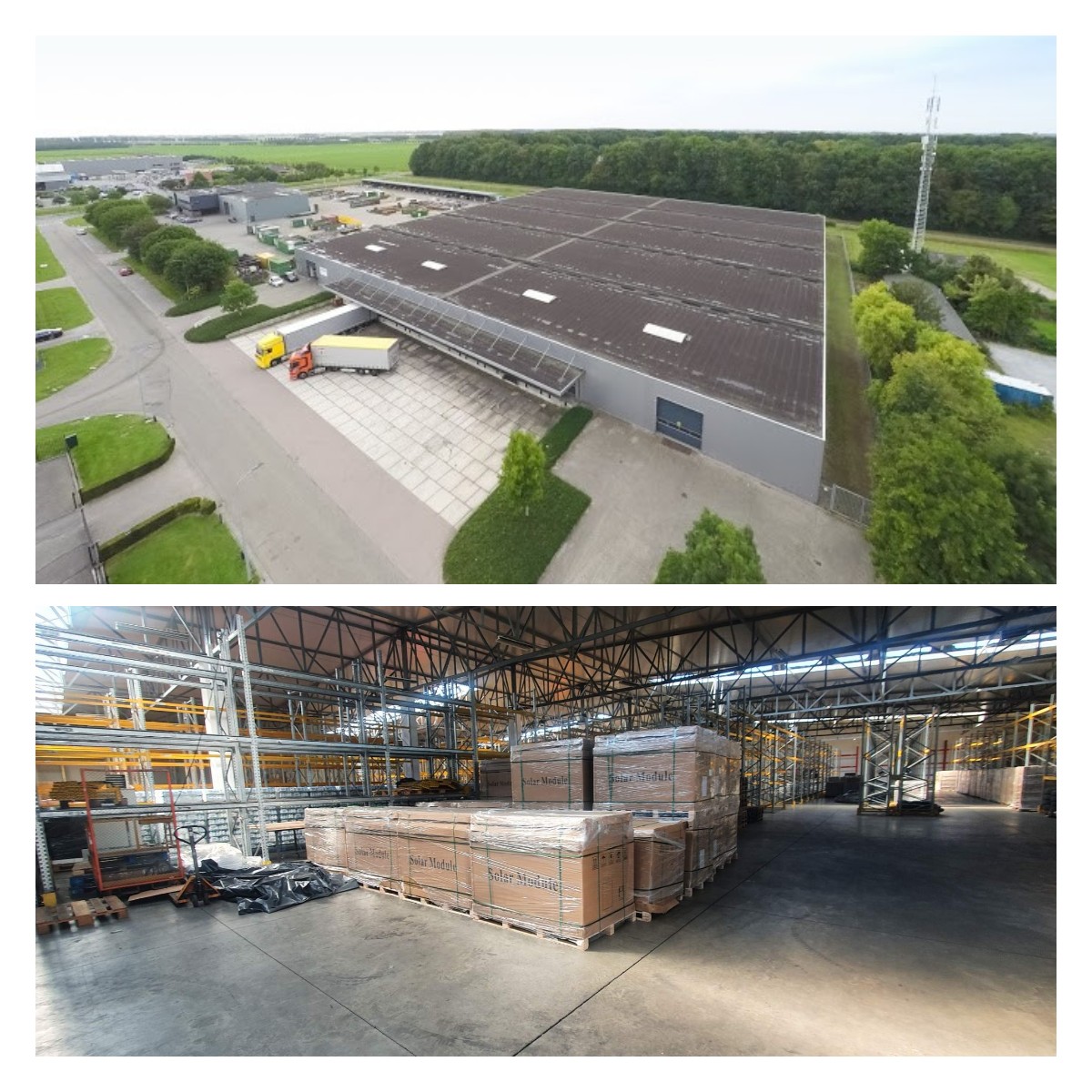

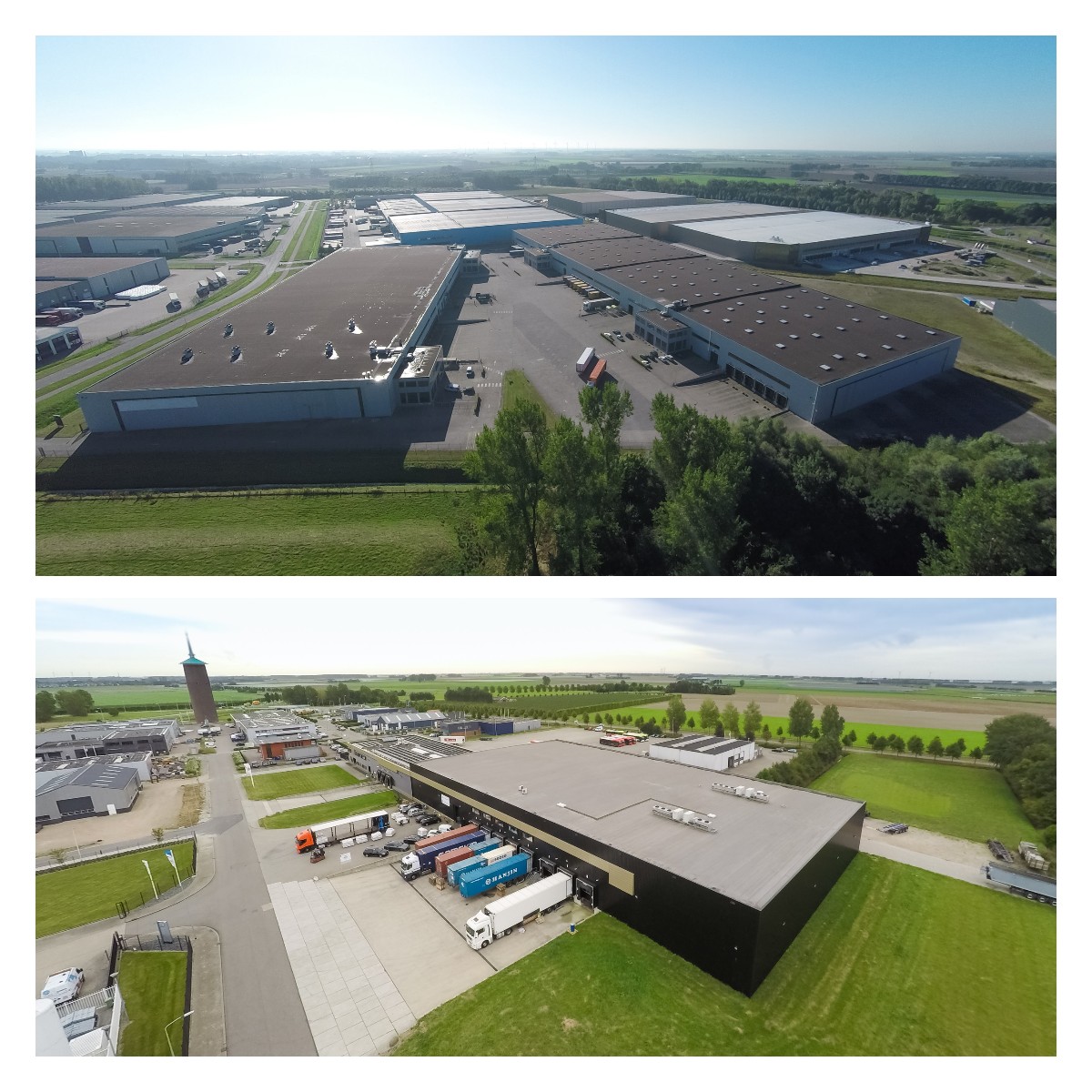

Welcome to our Rotterdam and Warsaw Warehouse.(Total 6 warehouses)
What is the advantage of local European warehouse?
1.Fast delivery of the regular stock in warehouse.
2. Fast solution if any quality and package complaints
3.Offer transport ,DDP term
4.Offer free warehousing within 1 month
5.Special service of replacing carton box and back label.
