US $0.20 - US $0.35 / watts
122 half cut cell monocrystalline silicon module
Tempered glass on the front
100% EL onsite inspection
12 years quality warranty
345W half cut monocrystalline solar panel for solar home system
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical type | 345W |
Max power(Pmax) | 345 |
Max power voltage(Vmp) | 33.6 |
Max power voltage(Vmp) | 10.27 |
Open circuit voltage(Voc) | 40.9 |
Short circuit current(Isc) | 10.85 |
Module Efficiency(%) | 20.43 |
Max system voltage | DC 1500V |
Maximum Series Fuse Rating | 16A |
Mechanical Data
Item | Specification |
Dimensions | 1685x1002x35mm |
Weight | 18.0kgs |
Front Glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
connectors | MC4 compatible IP68 |
Cell Type | Mono crystalline PERC Half-Cell 9BB 79.375x158.75mm |
Number of cells | 120cells in series |

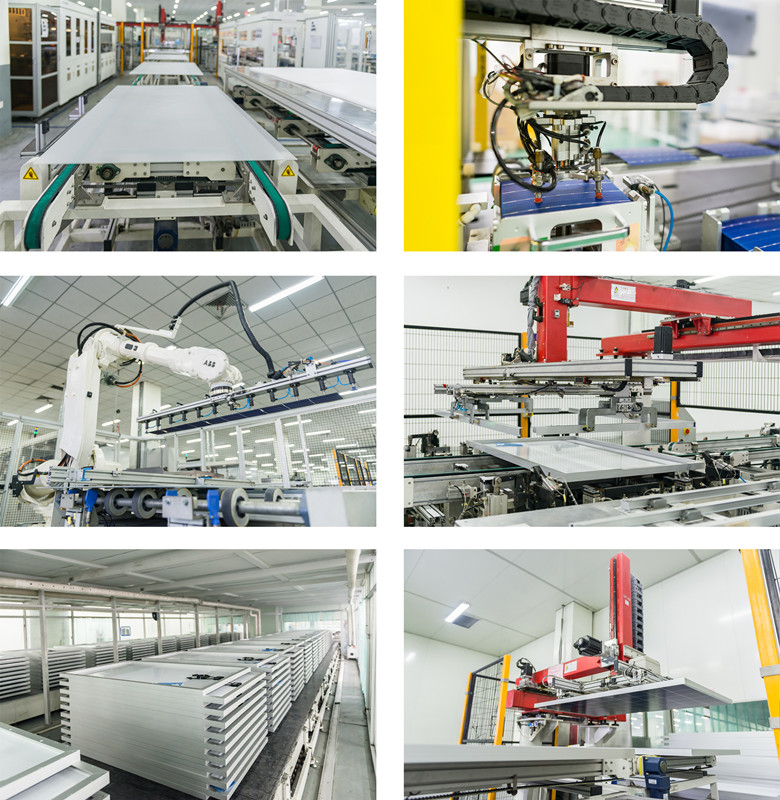

Our factory
Our A/S:
If you find the quality is with the problem, please show us the picture, and the series no. , if it does our quality problem, we will replace a new one, or refund you the payment. But please be assured actually the possibility is less than 0.1%.
Q: What is series no.?
A: Every step of our production is recorded by series no. , it can be tracked back if there are any quality issues.
