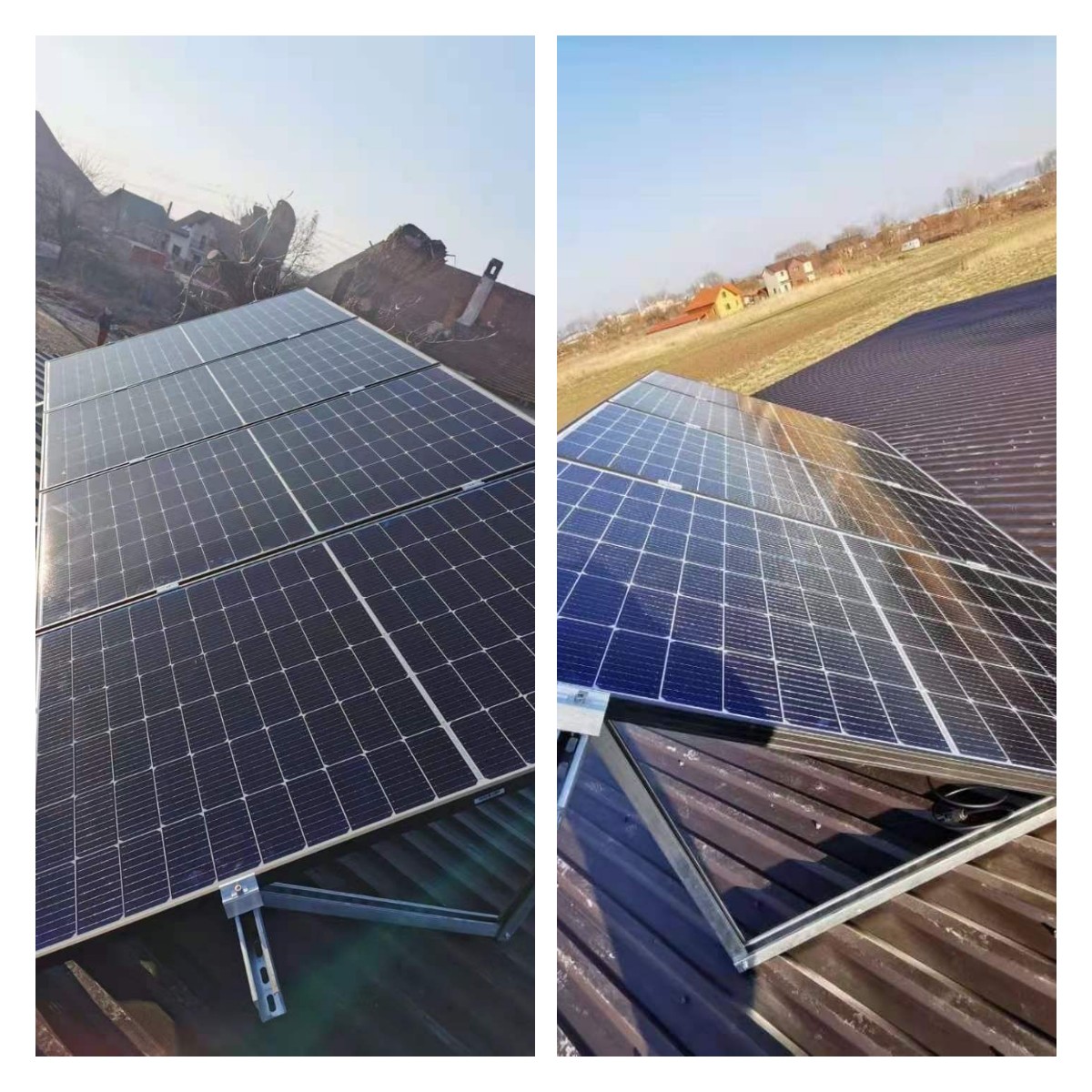

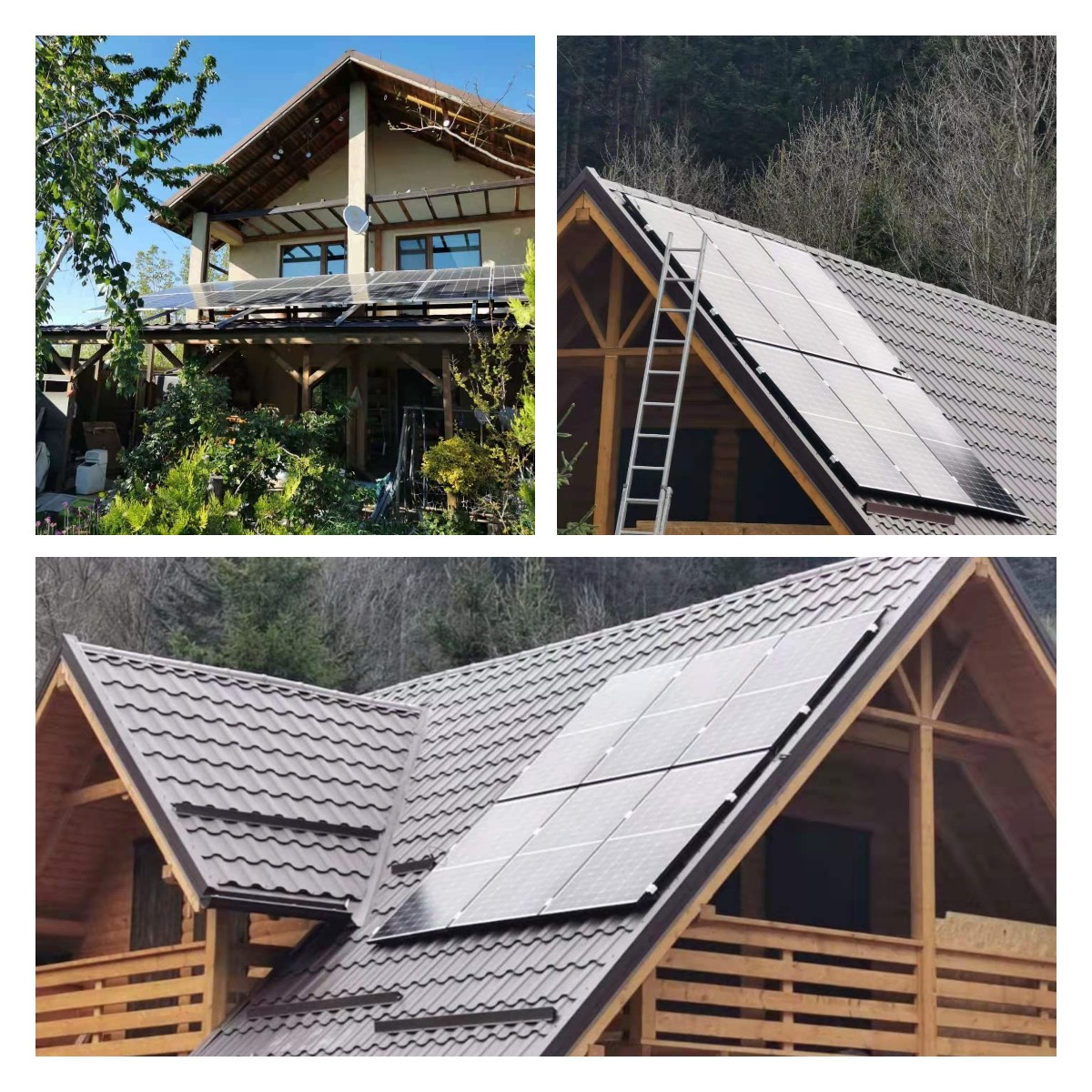

340W 120cells half cut mono solar panel for roof solar project
price
US $0.20 - US $0.35 / watts
SP340-120MG
EXW,DDP,CIF,FOB
340 watts
1GWwatts / Year
China
25Day
● 25-year transferable power output ; 12-year material and workmanship
● Power Source Type: Solar-Powered
●Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
● Power Source Type: Solar-Powered
●Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Quantity
340W 120cells half cut mono solar panel for roof solar project
Sunpro Power Co., Ltd is a high-tech enterprise taking photovoltaic R&D and manufacturing as its core industry. Our company is mainly engaged in the PV cells、PV modules and the design、development、production and sales of photovoltaic system. Our products are widely applied into front-end fields, for instance,commercial, household and industrial off-grid and grid-connection solar power generation system as well as photovoltaic power station etc .
Product Specifification
| Typical Type | 340W |
| Max power(Pmax) | 340 |
| Max power voltage(Vmp) | 34.2 |
| Max power current(Imp) | 9.94 |
| Open circuit voltage(Voc) | 41.1 |
| Short circuit current(Isc) | 10.6 |
| Module efficiency(%) | 20.12 |
| Max system voltage | DC 1500V/DC 1000V |
| Maxmium Series Fuse Rating | 16A |
Mechanical Data
| Item | Specification |
| Dimensions | 1685*1002*35mm |
| Front glass | 3.2mm tempered glass |
| Output cable | 4mm² symmetrical lengths 1100mm |
| Connectors | MC4 compatible IP68 |
| Cell Type | Mono-Crystalline PERC Half-Cell 9BB 79.375x158.75mm |
| Number of cells | 120 cells |
1.Save money – Reduce your energy bills
2.High Reliability & Low Maintenance – 25 year warranty!
3.Energy independence – Protect your family if there is a shortage of energy. Rely on the sun, not just the energy companies.
4.Reduce your CO2 emissions.
5.Make money – Sell back your unused electricity to the grid.
Install a solar system, and from the initial estimate to a full system design,
installation and handover,you can rest assured that you are in trustworthy,
safe hands with Sunpro Power

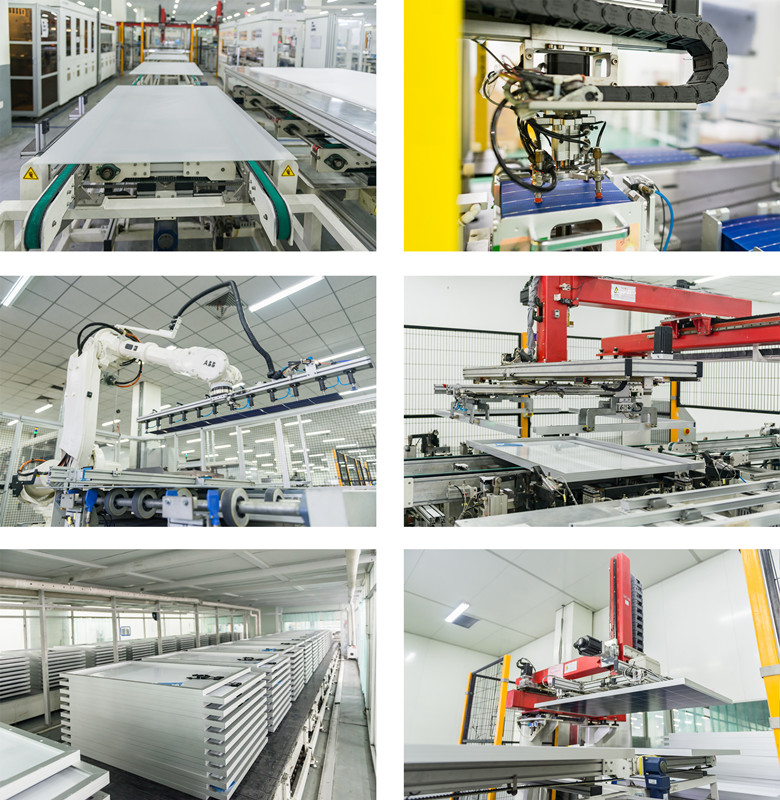

Our factory
