330 watt mono solar panel
330W 120cells half cut mono Roof Top solar panel
price

US $0.15 - US $0.26 / watts

SP330-120MG
EXW,DDP,CIF,FOB
335 watts
800MWwatts / Year
China
25Day
● 25-year transferable power output ; 12-year material and workmanship
● Power Source Type: Solar-Powered
●Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Quantity

330W 120cells half cut mono Roof Top solar panel

The 330w solar panels are built with strong tempered glass and an aluminum frame, it is also equipped with a completely waterproof junction box which is able to connect it with other 330 watts solar panels to compose a larger solar system. this panel is top quality assured, which has a 12-year product warranty, and 12 years 90.7% power output linear guarantee, 25 years 80.2% power output linear guarantee.


Product Specifification

Typical Type330W
Max power(Pmax)330
Max power voltage(Vmp)33.8
Max power current(Imp)9.76
Open circuit voltage(Voc)40.6
Short circuit current(Isc)10.4
Module efficiency(%)19.55%
Max system voltageDC 1500V/DC 1000V
Maxmium Series Fuse Rating20A

Mechanical Data

Item Specification
Dimensions1685*1002*35mm
Front glass3.2mm tempered glass
Output cable4mm² symmetrical lengths 1100mm
ConnectorsMC4 compatible IP68
Cell Type Mono-Crystalline PERC Half-Cell 9BB 79.375x158.75mm
Number of cells120 cells


Packing Configuration

Item

Specification

Container

   20'GP

      40'GP

    40'HQ

Pieces per pallet

       60

         52

        64

Pallets per container

       6

        14

        13

Pieces per container

      360

       728

       832

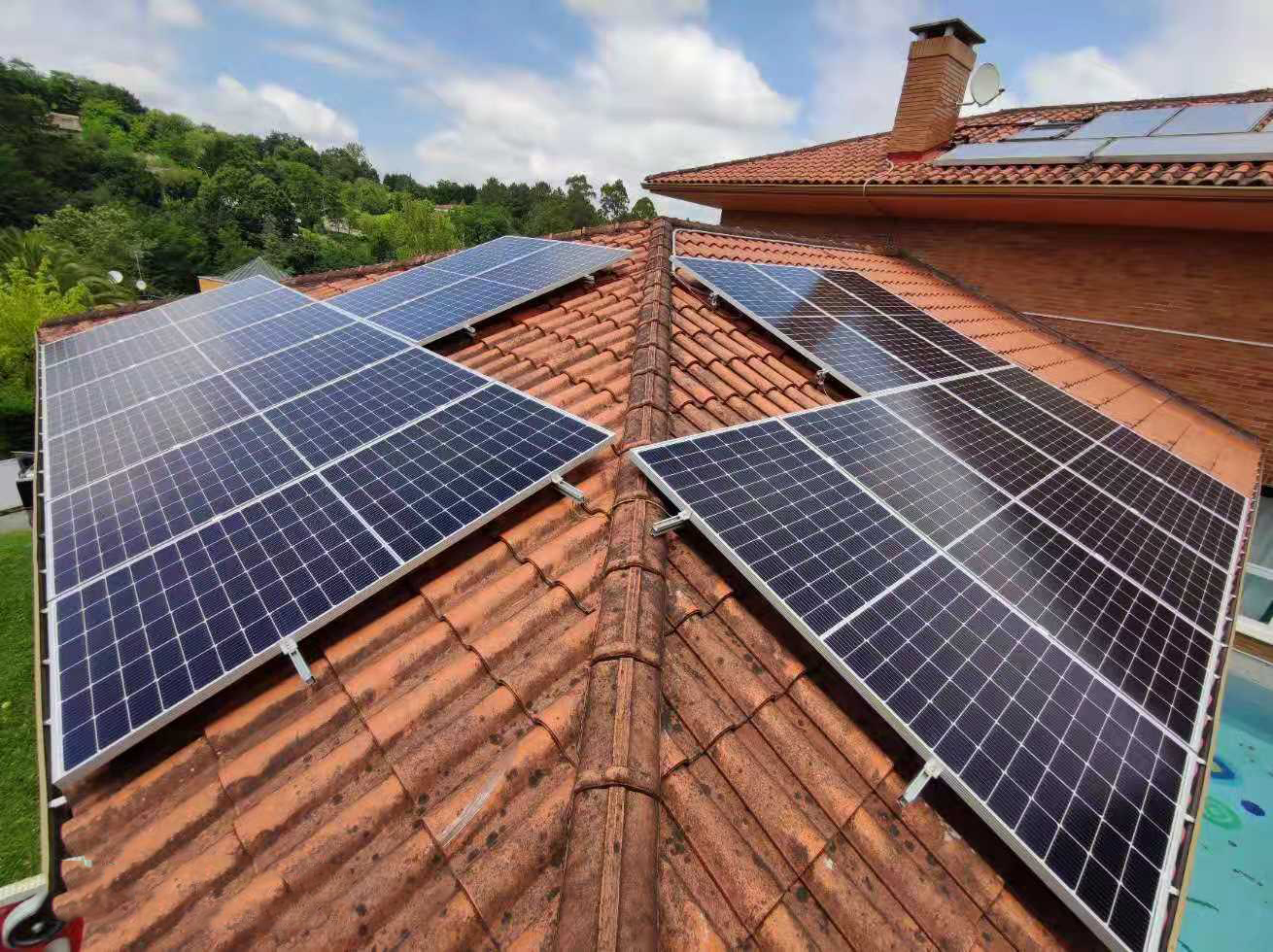

Project
mono solar panel

Our service

1. 12 years products-warranty, 25 years power output-warranty

2. Provide the TUV CE testing report of products

3.Provide the whole system with on-grid and off grid

4.OEM for our clients.
