325W Mono High Efficiency Solar Panel
price
US $0.20 - US $0.35 / watts
SP325-60M
FOB
325 watts
1GWwatts / Year
China
14Day
+3% power tolerance, 19.2% efficiency
Quantity
325W Mono High Efficiency Solar Panel
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 320W |
Peak power(Pmax) | 320W |
Weight | 19kg |

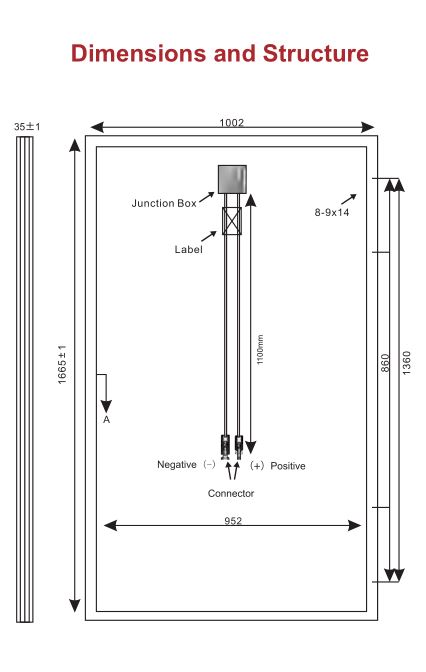

Dimensions(mm) | 1665*1002*35mm |
Max Power voltage(Vmp) | 33.4V |
Max Power current(Imp) | 9.59A |
Open circuit voltage(Voc) | 40.9V |
Short circuit current(Isc) | 10.15A |
Module Efficiency(%） | 19.2% |
Max system voltage | DC 1500V(TUV)/DC1000V(TUV) |
Maximum Series Fuse Rating | 16A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Operate Temperture Scope | -40/+85°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 60 | 52 | 60 |
6 | 6 | 14 | 14 |
Pieces per container | 360 | 728 | 840 |
Product detail

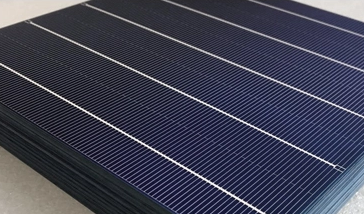

Solar cell | High conversion efficiencyOutstanding power outputLong-term stability, reliability and performanceColor uniformity |

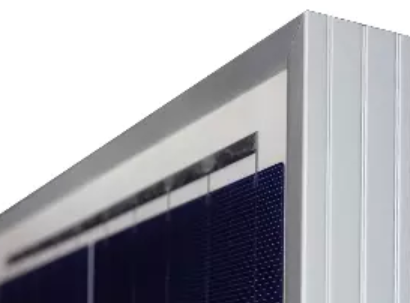

Frame | Simple and easy installationHigh brightness and hardnessAnti-scratch, smoothness |
Glass | High transparency tempered glassHigh stability, waterproof and high safetyLow reflectivity |

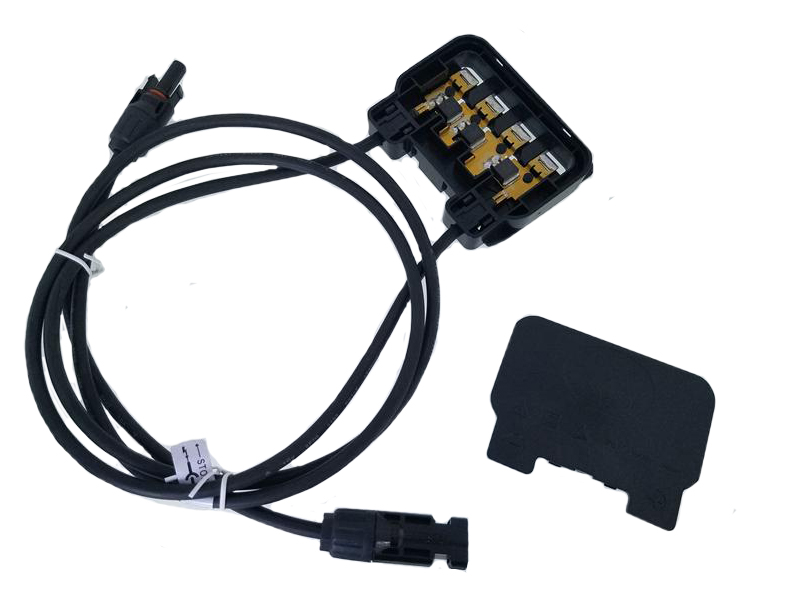

Junction box | 3 terminal blocks can be set as needed.All connection methods are connected by quick plug-in.The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.IP67 rate protection level. |
Application
325 watt solar panel can be applied in RV, Boat, Back-up power, Cabin, commercial and residential.
Main procedure
Production capacity
Our lastest annual capacity is 800MW.
Main export market: Germany, Sapin, Poland, Italy, Pakistan, UAE, etc.
