US $0.20 - US $0.35 / watt
Withstands high winds (2400Pa) and snow loads (5400Pa)
3 times El tested solar modules; no hot-spot heating guaranteed
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
Monocrystalline Solar Panel 305watt 60cells solar power panel
Monocrystalline panel specification:
25-year transferable power output ; 12-year material and workmanship
Withstands high winds (2400Pa) and snow loads (5400Pa)
El tested solar modules; no hot-spot heating guaranteed
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
Model type | 305W |
Max power | 305W |
Max Power voltage(Vmp) | 32.6V |
Max Power current(Imp) | 9.19A |
Open circuit voltage(Voc) | 39.9V |
Short circuit current(Isc) | 9.64A |
Module Efficiency(%） | 18.28% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
 | |
Glass Higher Transmittance High solar transmittance High mechanical strength |  |
Frame Anodized Aluminium Alloy Silver or Black Thickness 30/35/40/45/50mm Stress test |  |
Junction box IP67 protection level 3 bypass diodes Double permanent connection are adapted for all of the connecting. |  |
Packing:
5 or 7 layers Corrugated Cartons , reinforced wooden box with pallet.
All-round protection your products during transportation.
Make sure all solar panels safety.

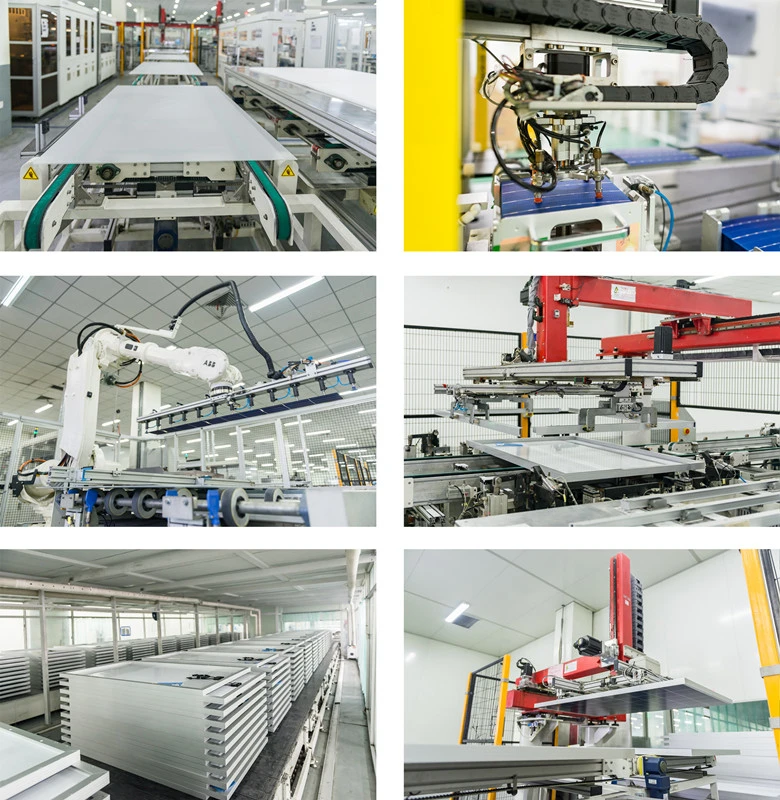

Our Factory
Features
1. Positive Power Tolearance (0 ~ +5W) guaranteed
2. High module efficiency (up to 18.28%)
3 Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
