Excellent low light performance
100% EL online inspection
12 years quality warranty
25 years power output warranty

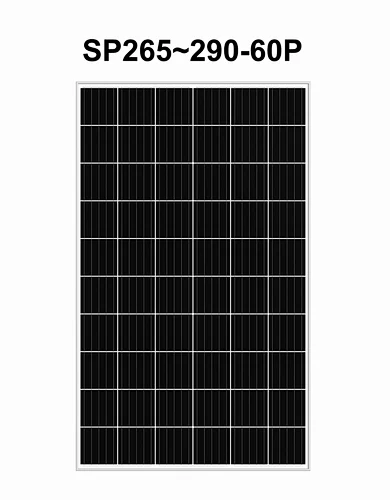

285watt Poly Crystalline Solar Panel home use
This home solar panel is suitable for residential installations, vehicle and RV installations, as well as industrial applications. The solar for home use has Excellent low light performance, low-temperature coefficient, excellent low irradiance performance, and 100% EL online detection.
About us
Sunpro Power is an experienced manufacturer, dedicated to the production of high-quality photovoltaic solutions with A-grade solar cells. We have updated our production line to the most advanced level, tracking every step of our production and checking with electroluminescence tester 100% of our modules to ensure the quality and reliability of our products.
Our headquarter is here in China, our branches are in Germany and UK, we have put regular stock in Rotterdam(NL), Warsaw and Random(PL). Fast delivery to European Union countries!
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 285W |
Peak power(Pmax) | 285W |
Weight | 19.0kg |
Dimensions(mm) | 1650x992x35 |
Max Power voltage(Vmp) | 31.6v |
Max Power Current(Imp) | 9.02A |
Open circuit voltage(Voc) | 38.8V |
Short circuit current(ISC) | 9.42A |
Module Efficiency(%） | 17.36% |
Max system voltage | DC 1000V(TUV) |
Maximum Series Fuse Rating | 16A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Poly-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | specification | ||
| Container | 20'GP | 40'GP | 40'HQ |
| Piece per pallet | 60 | 52 | 64 |
| Pallets per container | 6 | 14 | 14 |
Pieces per container | 360 | 728 | 896 |

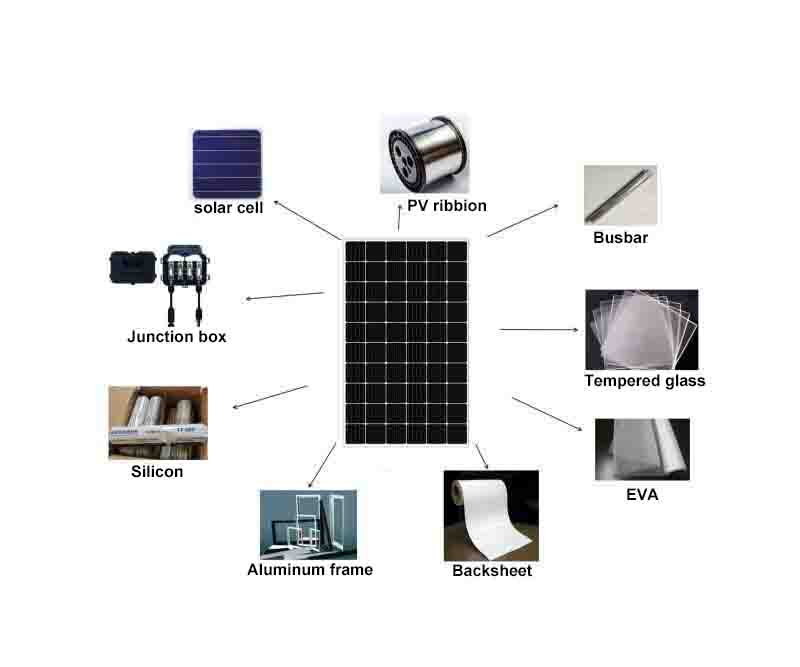

Main components

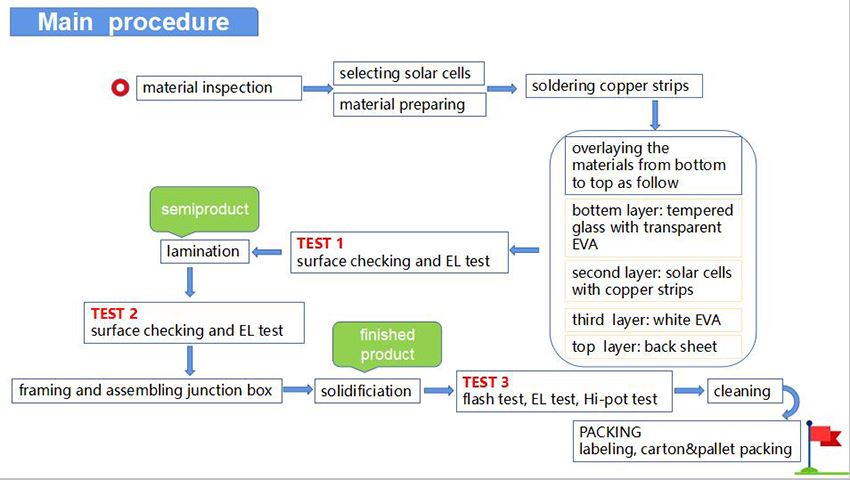

Main procedure

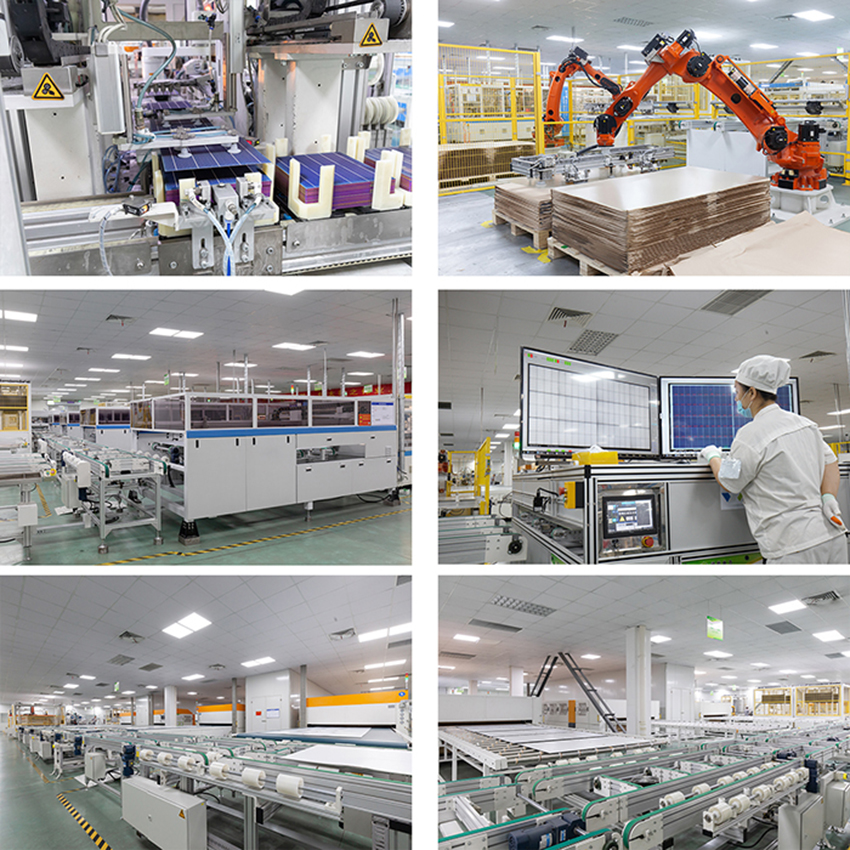

Our factory

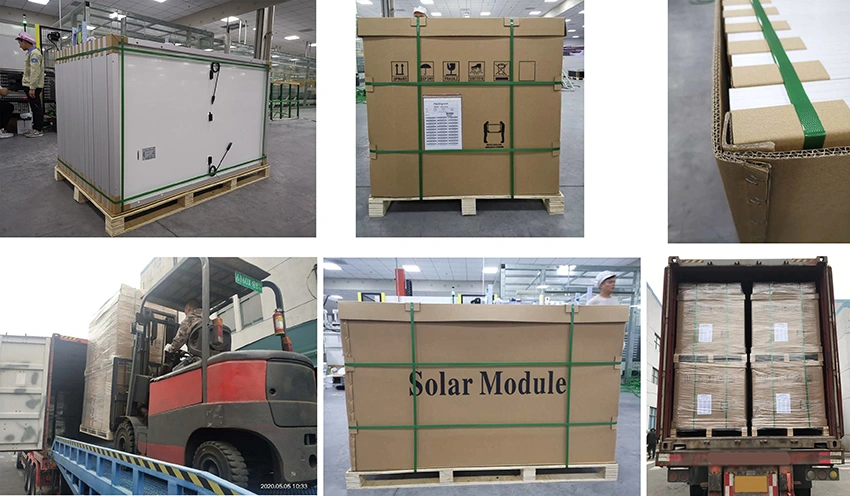

Packing

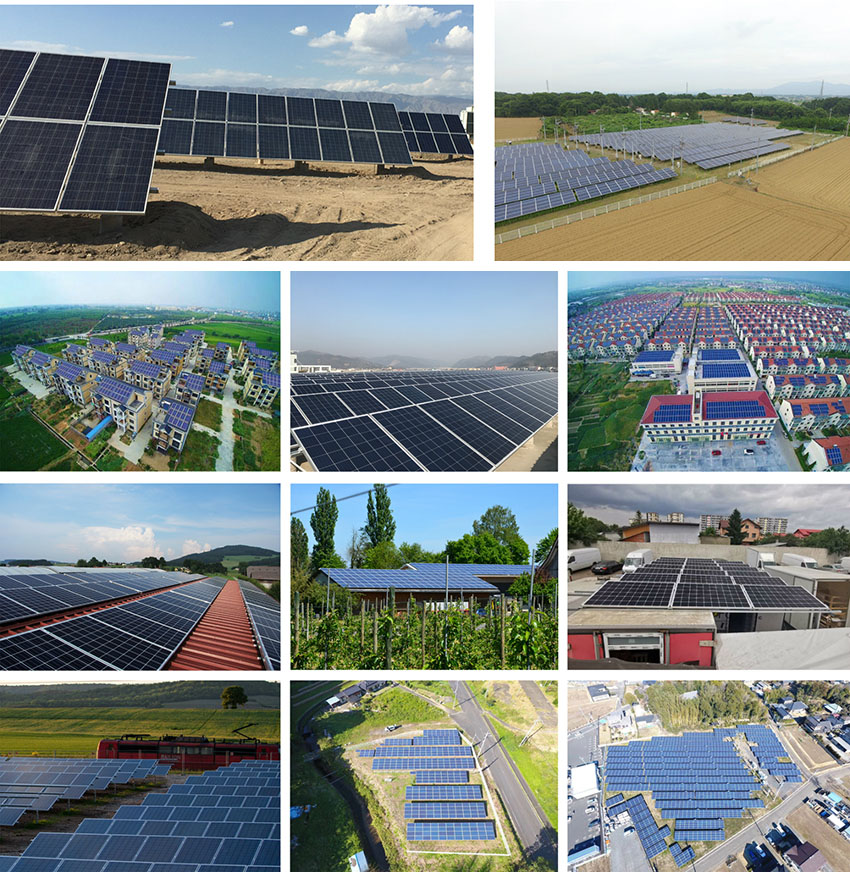

Our projects
Certification
ISO9001, ISO quality management system
ISO14001, ISO environment management system
ISO45001, Occupational health, and safety
