280watt Poly Crystalline Solar energy module for roof and ground system
Sunpro Power is an integarted photovoltaic manufacturer focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management and strict quality control,equiped with full automatic production lines at 800MW annual capacity.Our agents are all over the world with good reputaiton.
Production Specification
Electrical parameters at standard test conditions (STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 280W |
Max power | 280W |
Max Power voltage(Vmp) | 31.4V |
Max Power current(Imp) | 8.92A |
Open circuit voltage(Voc) | 38.2V |
Short circuit current(Isc) | 9.4A |
Module Efficiency(%） | 17.1% |
Maximum Series Fuse Rating | 20A |
Package Specification
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 55 | 55 | 68 |
Pallets per container | 6 | 14 | 14 |
Pieces per container | 330 | 770 | 952 |

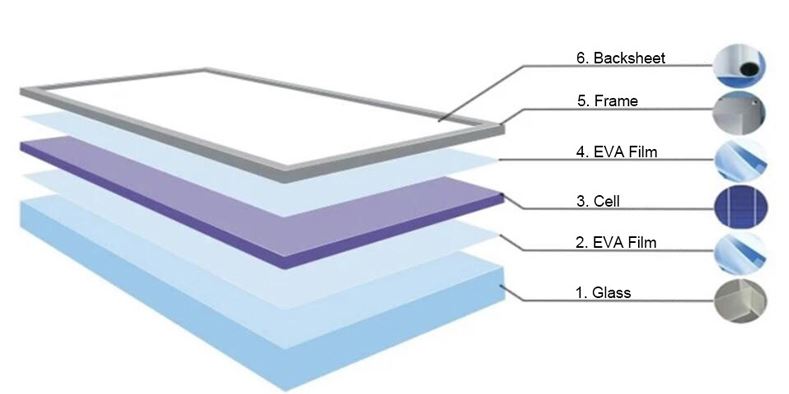

Main Materials

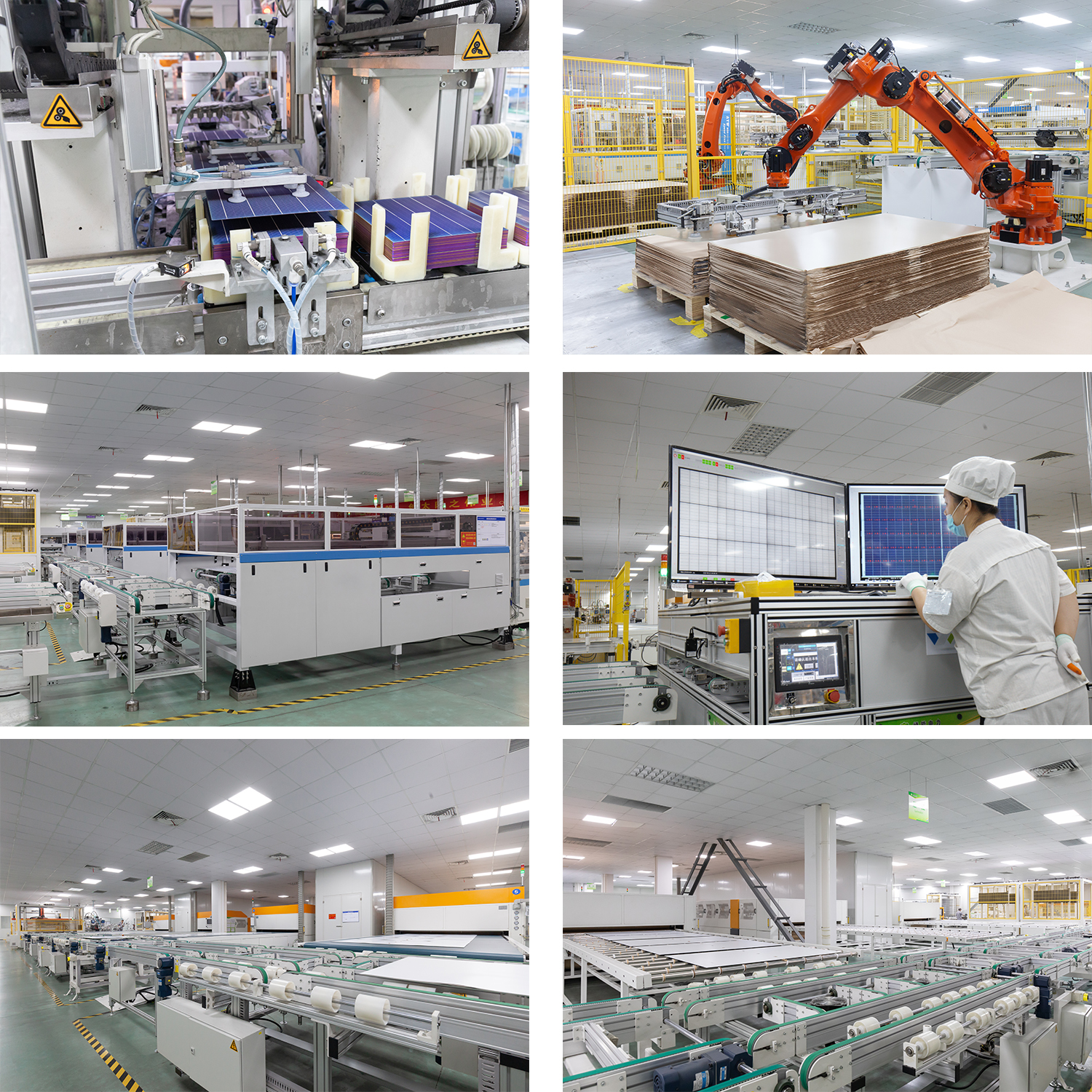

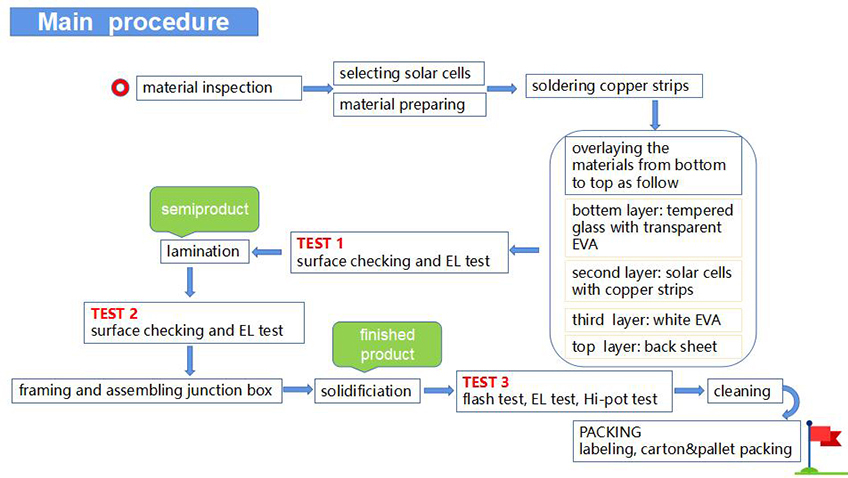

Main Procedure( 100% automatic production line)
1.Material Inspection before produce then prepare mateirals for produce.
2.Prepare solar cells(full cell or half cut cell) to start single and series weldding with machine.
3.Overlaying the materials from bottom to top (glass,EVA,cells, EVA,backsheet in trun)
4.Surface check and EL test.
5.Lamination then surface check and EL test again.
6,Framing and assembling junction box.
7.Solidify for 4 hours.
8.Final test and cleaning.
9.Packaging with carton box and wooden pallet.
S
Reference

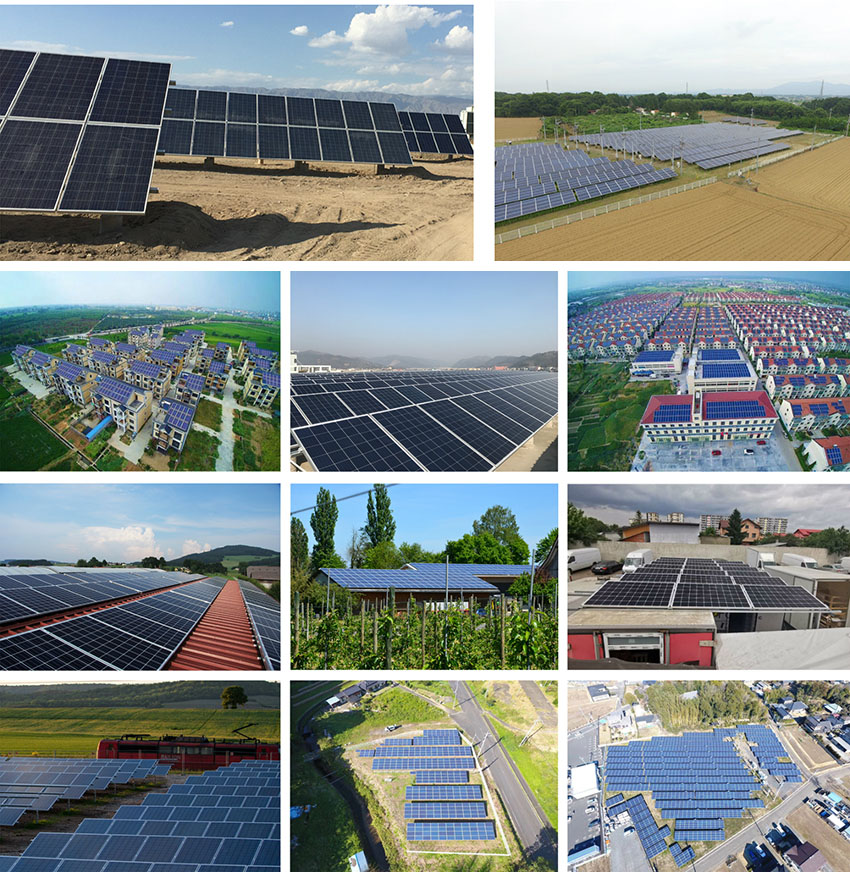

Ground projects are mostly for some big power station,and it is installed on the vacant lot.
