US $0.20 - US $0.35 / watt
230w Polycrystalline Solar Panel
230 watt poly solar panel can be applied in RV, Boat, Back-up power, Cabin, commercial and residential.
Production Specification
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Typical type | 230W |
Max power(Pmax) | 230 |
Max power voltage(Vmp) | 25.2 |
Max power current(Imp) | 9.13 |
Open circuit voltage(Voc) | 30.7 |
Short circuit current(Isc) | 9.65 |
Module Efficiency(%) | 17.16 |
Max system voltage | DC 1500V(TUV)/ DC 1000V(TUV) |
Mechanical Data
Item | Specification |
Dimensions | 1320x992x35mm |
Weight | 14.2kgs |
Front Glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 900mm |
connectors | MC4 compatible IP67 |
Cell Type | Poly Crystalline Silicon 157mm x 157 mm |
Number of cells | 48 cells in series |
Packing Configuration
Item | Specification | ||
Container | 20'HQ | 40’GP | 40’HQ |
Pieces per pallet | 60 | 60 | 64 |
Pallets per container | 5 | 12 | 12 |
Pieces per container | 300 | 720 | 768 |

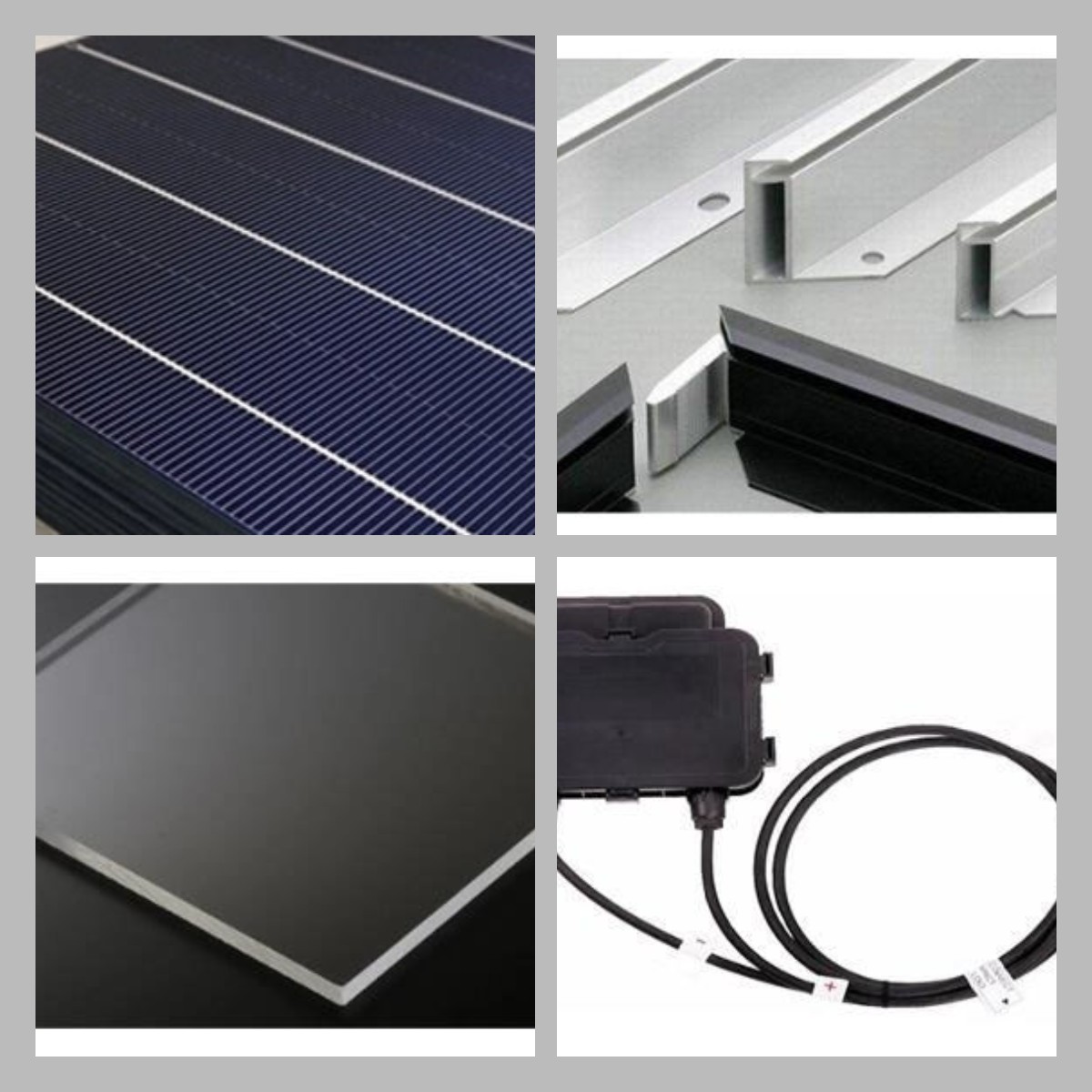

Product detail

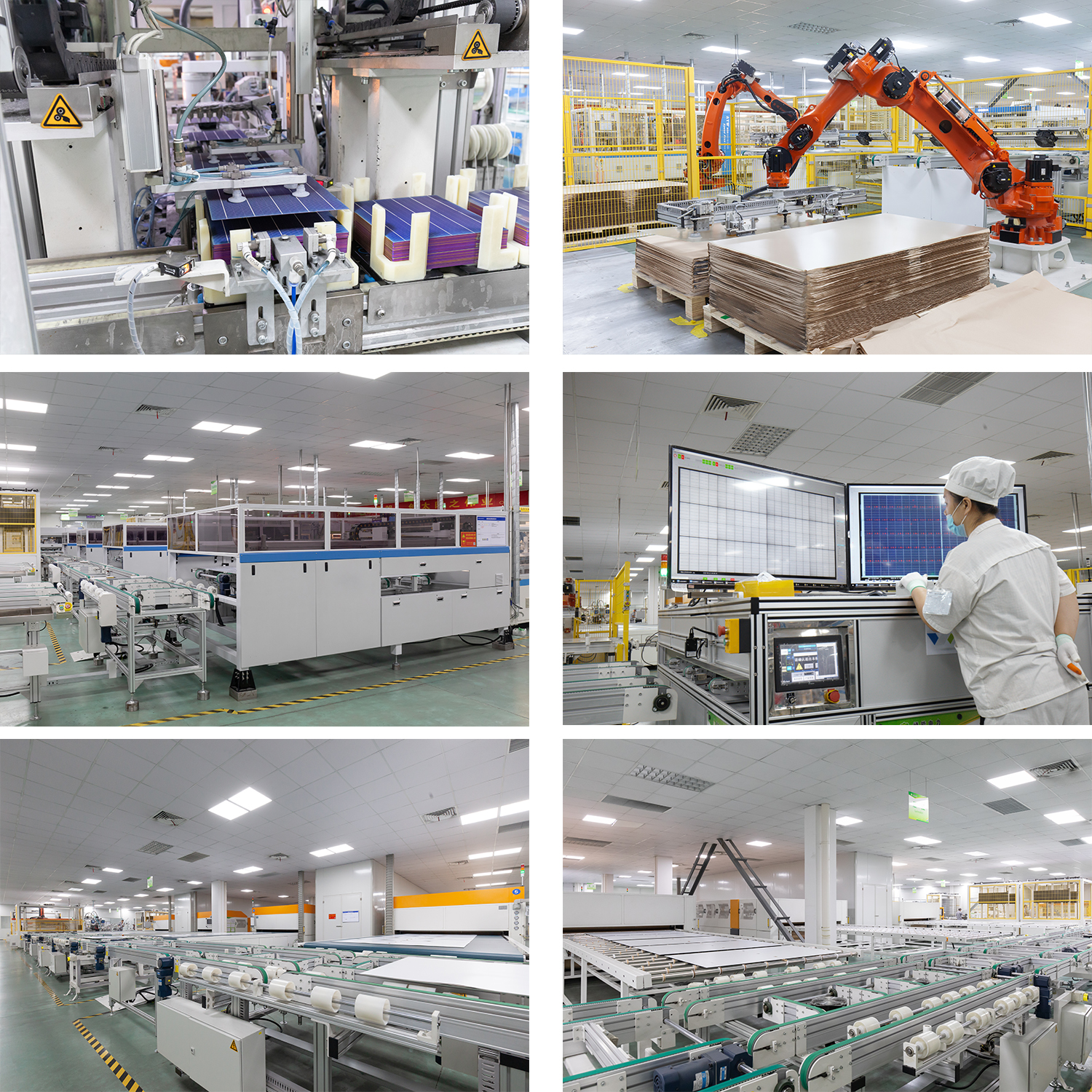

Produce Process
Certificates
IEC standard certificate
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
Ammonia & Salt resistance PID free
Our service
1. Our company can provide A grade quality panels with full warranty, competitive price and good after-sales service
2. 12 years quality assurance, 25 years power output warranty
3. Provide the authoritative testing report of products and other technical support.
4. Help clients to purchase the complete accessories, such as batteries, inverter etc. from our partners
5. Accept OEM for our clients.
