US $0.15 - US $0.20 / watts
Warranty: 12 years quality assurance, 25 years power output warranty
215W 48Cells Poly Solar Panel
Product Description
Poly Solar panel converts solar energy into electric energy to achieve the effect of generating electricity. This model is made up of 48 batteries in series. Poly solar panelis highly resistant to pressure, it can withstand high winds and snow loads. And we lso promise 12 years quality assurance, 25 years power output warranty.Product Specification
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25℃)
| Model Type | 215W |
| Peak Power(Pmax) | 215 |
| Max Power voltage(Vmp) | 24.7 |
| Max Power current(Imp) | 8.71 |
| Open circuit voltage(Voc) | 30.3 |
| Short circuit current(Isc) | 9.18 |
| Module Efficiency(%） | 16.42% |
| Max system voltage | DC 1500V/DC 1000V |
| Dimensions | 1320x992x35mm |
| Weight | 14.2kg |
| Front glass | 3.2mm tempered glass |
| Output cables | 4mm² Symmetrical lengths 900mm |
| Connectors | MC4 compatible IP67 |
| Cell type | Poly 156.75mmx156.75mm |
| Number of cell | 48 cells in series |

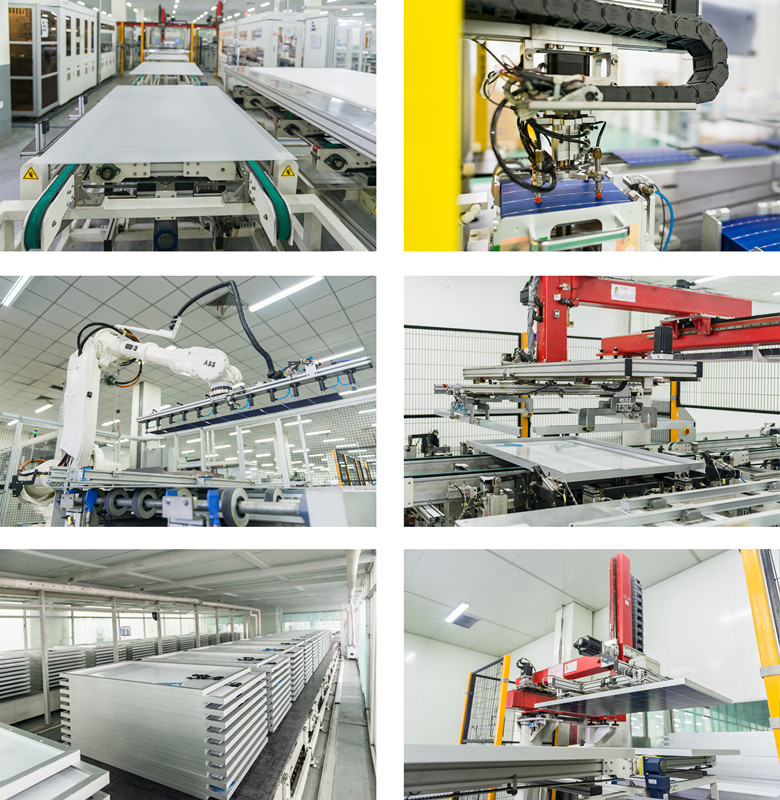

Our Factory

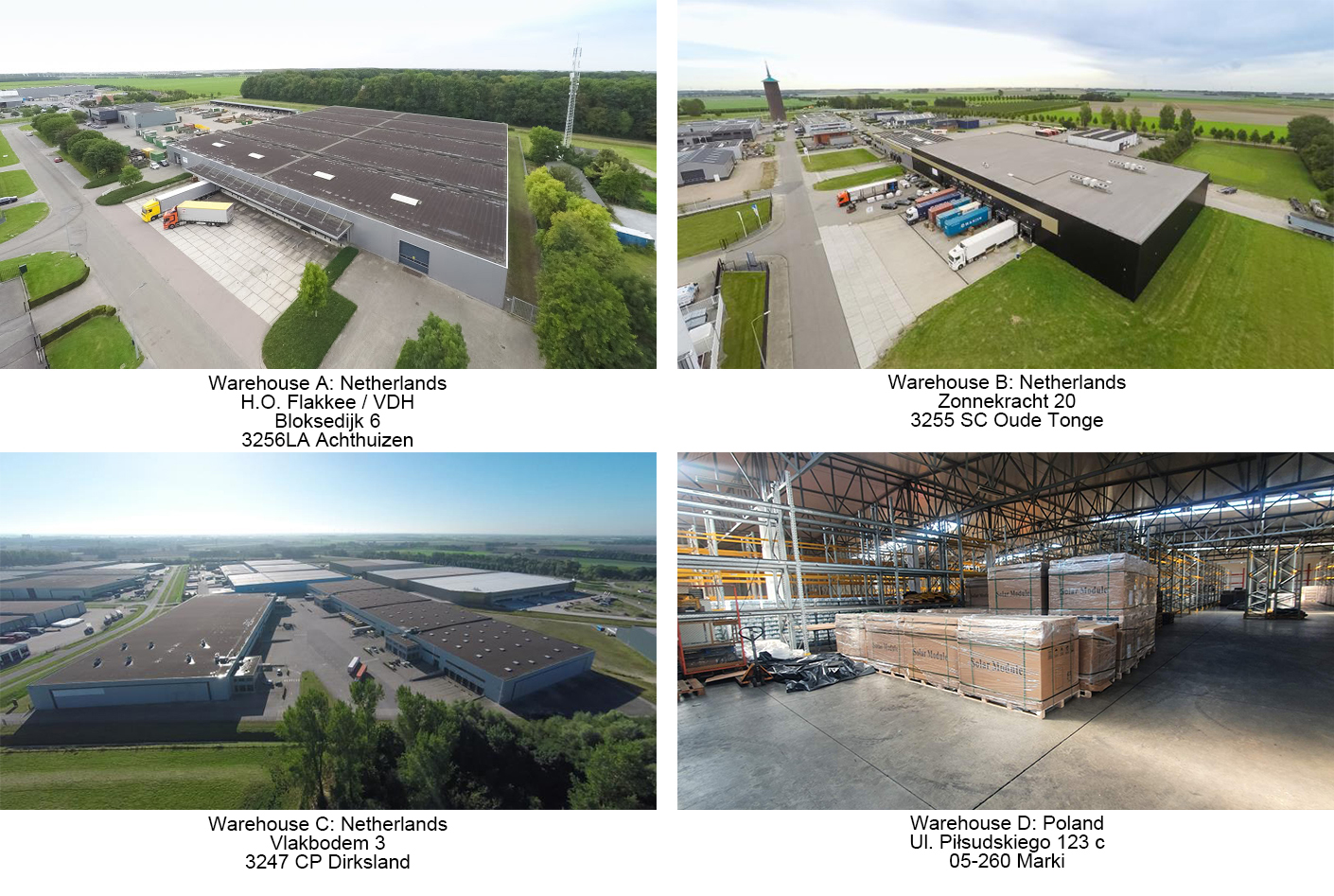

Our warehouse
Quality control
We monitor the production on site
We continuously improve our quality management
We regularly monitor and evaluate the quality assurance measures of our production partners and actively contribute to their improvement
We control and measure each module delivery according to a proven sampling procedure
We subject our modules to regular, additional measurements and quality controls such as electroluminescent tests, UV long-term tests, steam / heat tests, stress tests, temperature tests, power measurements under STC and partial load behavior, spectral sensitivity and insulation measurements
FAQ:
Are you a factory or trading company?
We are a manufacturer with expert license.
Do you test all your goods before delivery?
Yes,we do 3 times EL test and have 100% test before delivery.
How can I get some samples?
We are honored to offer you samples.
How about your delivery time?
Generally,it will take 20 to 35 days after receiving your
advance payment.
The specific delivery time depends on the items and the quantity of your order.
