US $0.20 - US $0.35 / watts
2. 10 years workmanship warranty and 25 years performance guarantee.
3. Passed IEC 61730, IEC 61215 test standard.
4. Excellent Temperature Parameter
195 Watt Mono Perc Solar Panel
Mono perc solar panel is built with strong tempered glass and aluminum frame and certified to withstand challenging environmental conditions. Also, polycrystalline silicon pv panels can be applied in RV, Boat, Back-up power, Cabin, commercial and residential.
Production capacity
Our lastest annual capacity is 800MW.
Main export market: Germany, Sapin, Poland, Italy, Pakistan, etc.
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 195W |
Peak power(Pmax) | 195W |
Weight | 12kg |

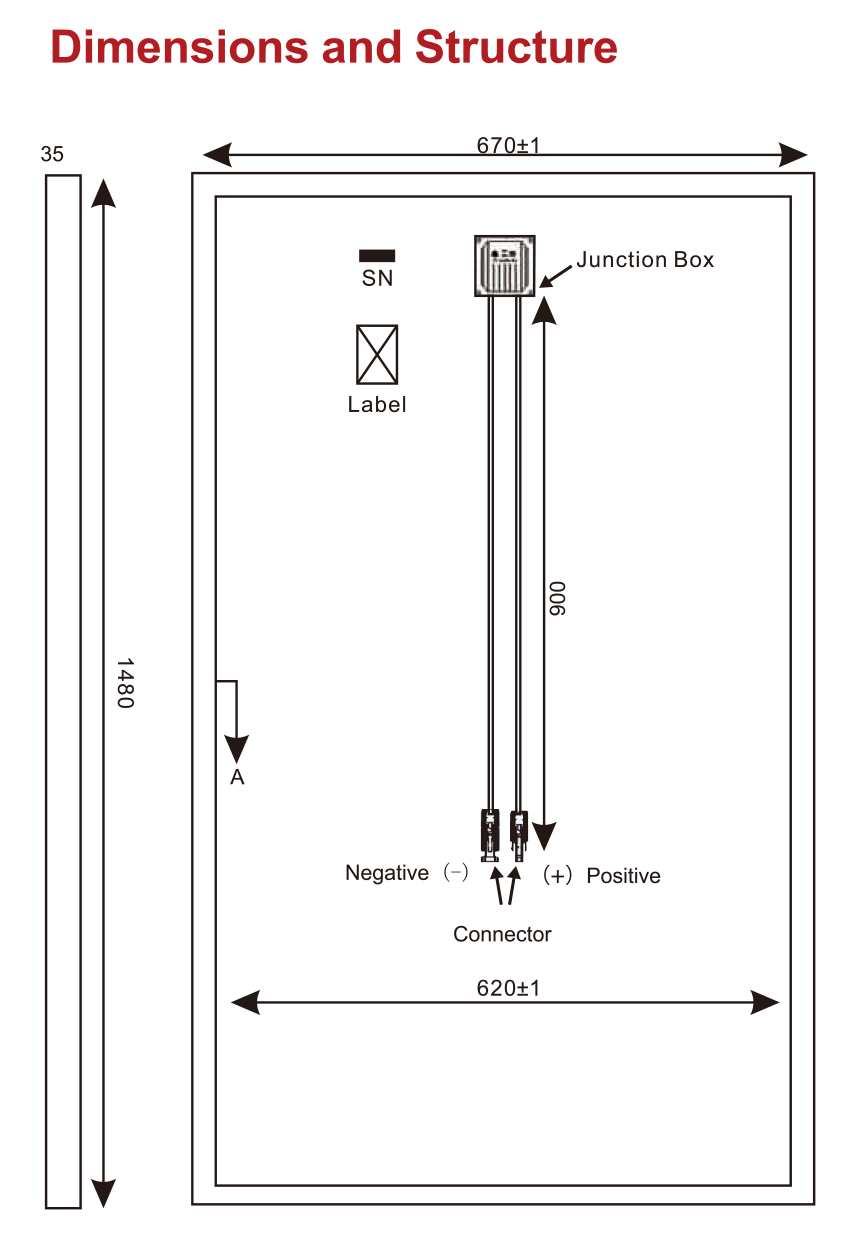

Dimensions(mm) | 1480x670x35 |
Max Power voltage(Vmp) | 20.16V |
Max Power current(Imp) | 9.68A |
Open circuit voltage(Voc) | 24.8V |
Short circuit current(Isc) | 10.22A |
Module Efficiency(%） | 19.38% |
Max system voltage | DC 600V(TUV) |
Maximum Series Fuse Rating | 15A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 900mm |
Connectors | MC4 compatible IP67 |
Cell type | Mono-Crystalline Silicon |
Operate Temperture Scope | -40/+85°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 84 | 64 | 90 |
Pallets per container | 7 | 15 | 15 |
Pieces per container | 588 | 960 | 1350 |
Product detail

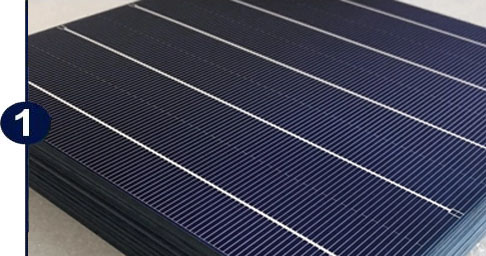

Solar cell
| High conversion efficiency Outstanding power output Long-term stability, reliability and performance Color uniformity |

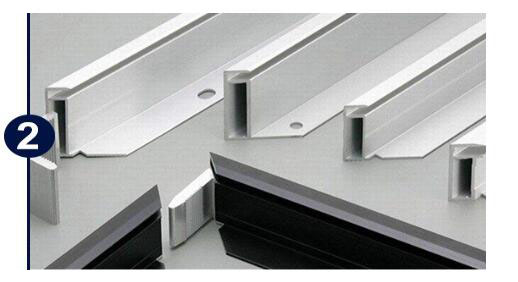

Frame
| Simple and easy installation High brightness and hardness Anti-scratch, smoothness |

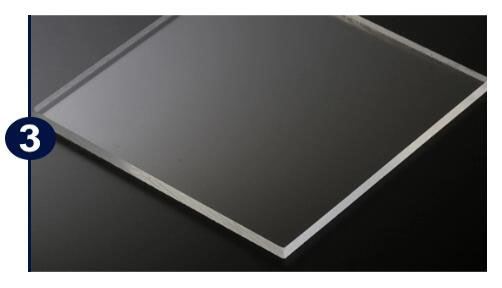

Glass
| High transparency tempered glass High stability, waterproof and high safety Low reflectivity |

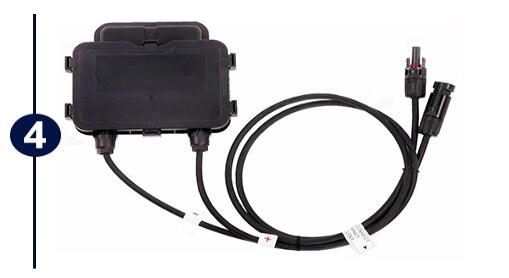

Junction box
| 3 terminal blocks can be set as needed. All connection methods are connected by quick plug-in. The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance. IP67 rate protection level. |
Certication
IEC61215,IEC31730
ISO9001,ISO quality management system
ISO14001, ISO environment management system
ISO 45001, Occupational health and safety
Ammonia & Salt resistance PID free
Our service
1. Our company can provide A grade quality panels with full warranty, competitive price and good after-sales service
2. 12 years quality assurance, 25 years power output warranty
3. Provide the authoritative testing report of products and other technical support.
4. Help clients to purchase the complete accessories, such as batteries, inverter etc. from our partners
5. Accept OEM for our clients.
