US $0.20 - US $0.35 / watts
190 Watt Mono PV crystallines Small Solar Panel
The mono PV solar panels are built to last and feature a 25-year limited power output warranty. to ensure long life, the high-efficiency solar cells are encapsulated between a special tempered, low-iron solar glass and a TPT back-sheet. the mounting frame is manufactured from anodized aluminum, which allows the panel to be installed in extreme weather conditions. The mono PV solar panels are made of A-grade cells, the cells are made of high-quality silicone which leads to higher efficiency up to 18.7%, and also performs better in low light. The Junction box is IP67 rated with the MC4 connector, totally safe for connecting with other panels.
Key Features:
12-year product warranty25 year: 80.2% power output
Positive output tolerance (0-3%)
Withstands high winds (2400Pa)
Withstands snow loads(5400Pa)

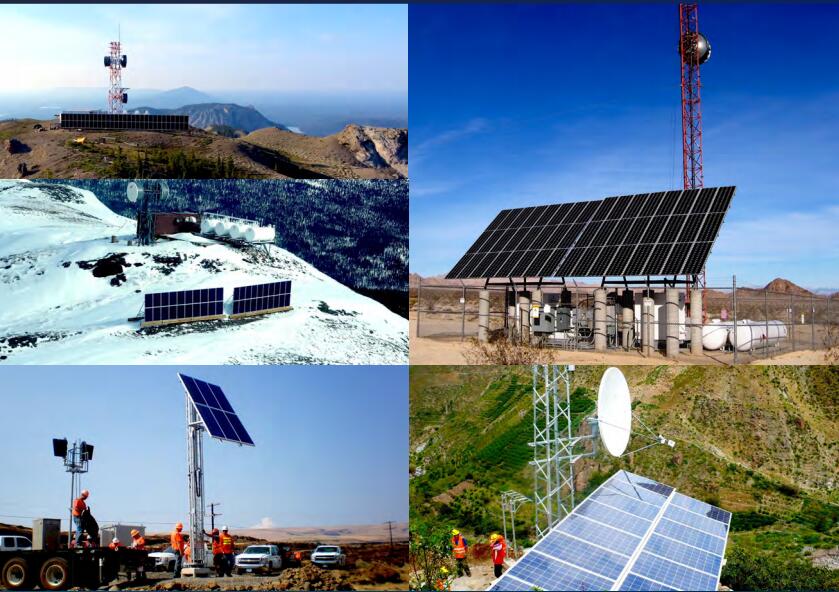

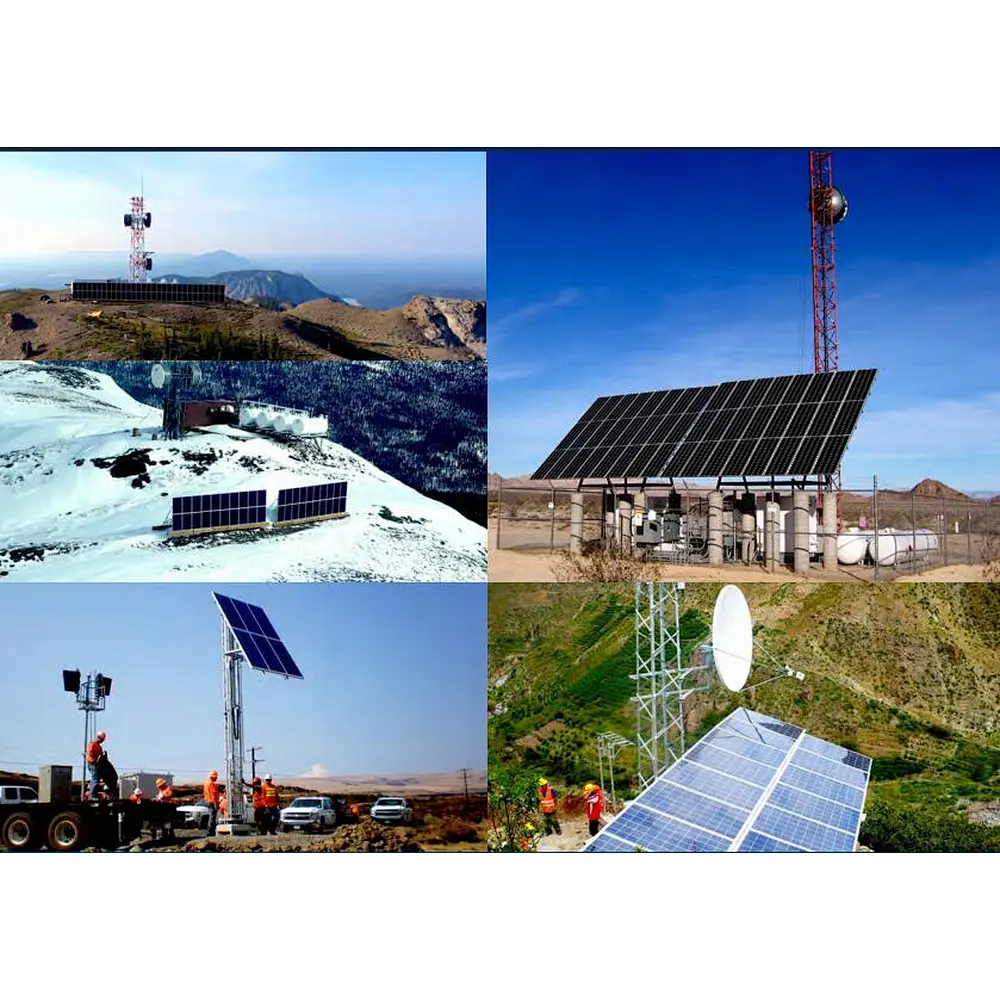

The SP190-36M is ideal for：
- RV/Marine- 12/24 Volt battery systems
- Telecommunications
- Other off-grid applications
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 190W |
Peak power(Pmax) | 190W |
Weight | 11.7kg |
Dimensions(mm) | 1500*675*35 |
Max Power Voltage(Vmp) | 19.9 |
Max Power Current(Imp) | 9.55 |
Open circuit voltage(Voc) | 24.4V |
Short circuit current(ISC) | 10.12A |
Module Efficiency(%） | 18.77% |
Max system voltage | DC 1500V/1000V |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm²； Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Our Certification:

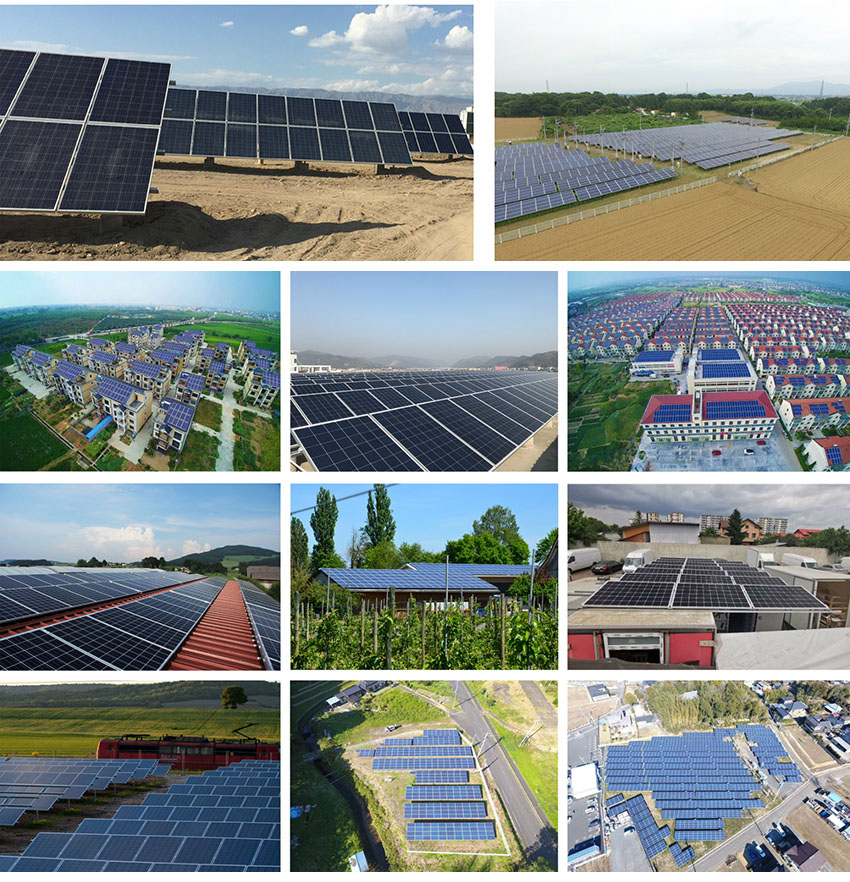

Our PV Solar Panels Project:
