US $0.20 - US $0.35 / watts
180 Watt Mono Perc Solar Panel modules

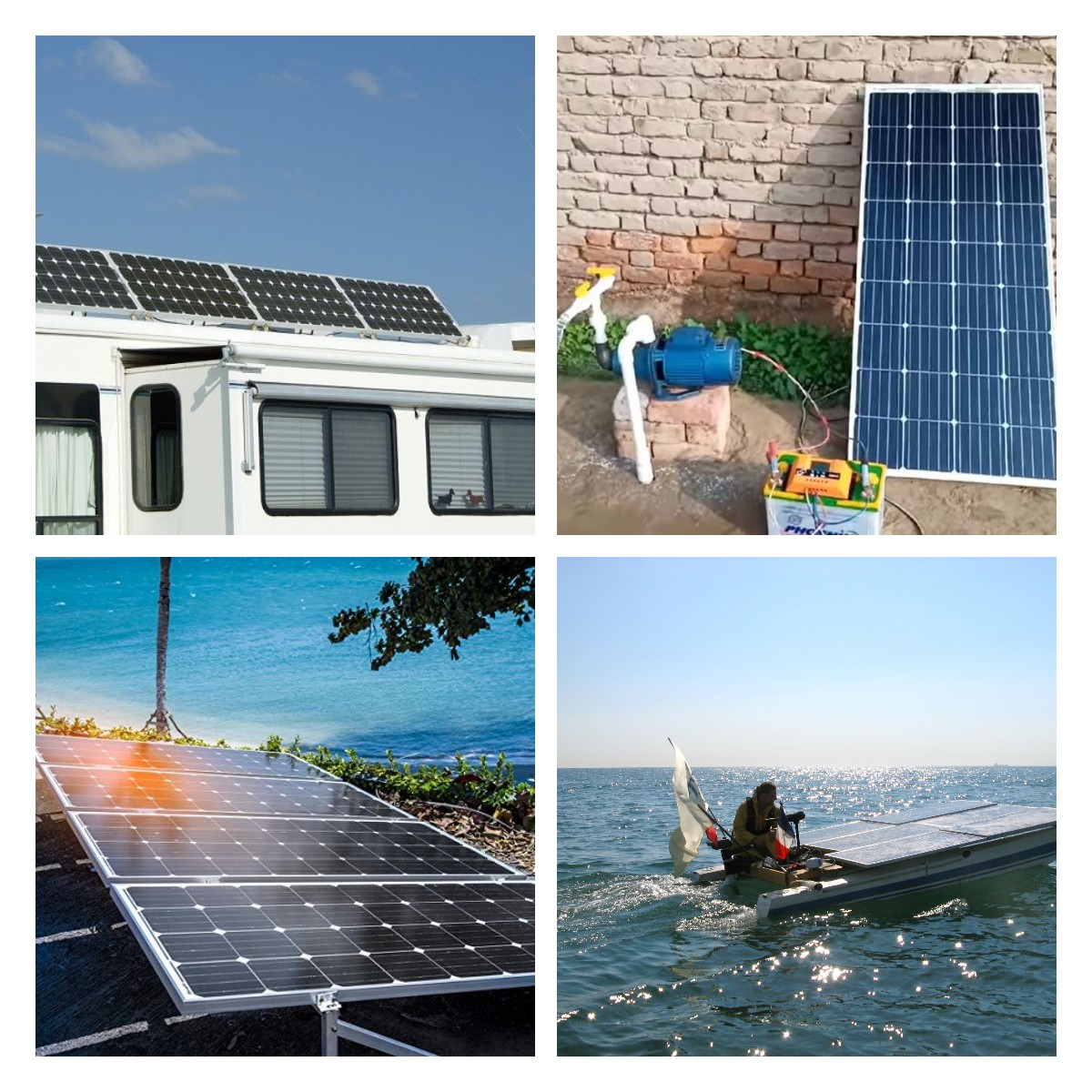

The 180w solar panels are built with strong tempered glass and an aluminum frame, it is also equipped with a completely waterproof junction box which is able to connect it with other 180 watts solar panels to compose a larger solar system. this panel is top quality assured, which has a 12-year product warranty, and 12 years 90.7% power output linear guarantee, 25 years 80.2% power output linear guarantee. The 180w solar panels modules are the optimum option for use in both on-gird and off-grid solar systems, with its rigid anodized aluminum frame and toughened 3.2mm tempered glass, having high resistance against snow, strong wind. The SP180-36M solar panel has built-in bypass diodes which avoid any hot-spot effects contribute to placing in series with other panels when installing a larger solar system. The backside of the panel's frame is designed with mounting holes and drainage holes making it risk-free for accumulation of rain or snow water in bad weather. The solar panels modules are powerful enough to be applied in RV, Boat, Backup power, Cabin, such as lights and pumps, etc.
Solar Panel module Specification:
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 180W |
Peak power(Pmax) | 180W |
Weight | 12kg |

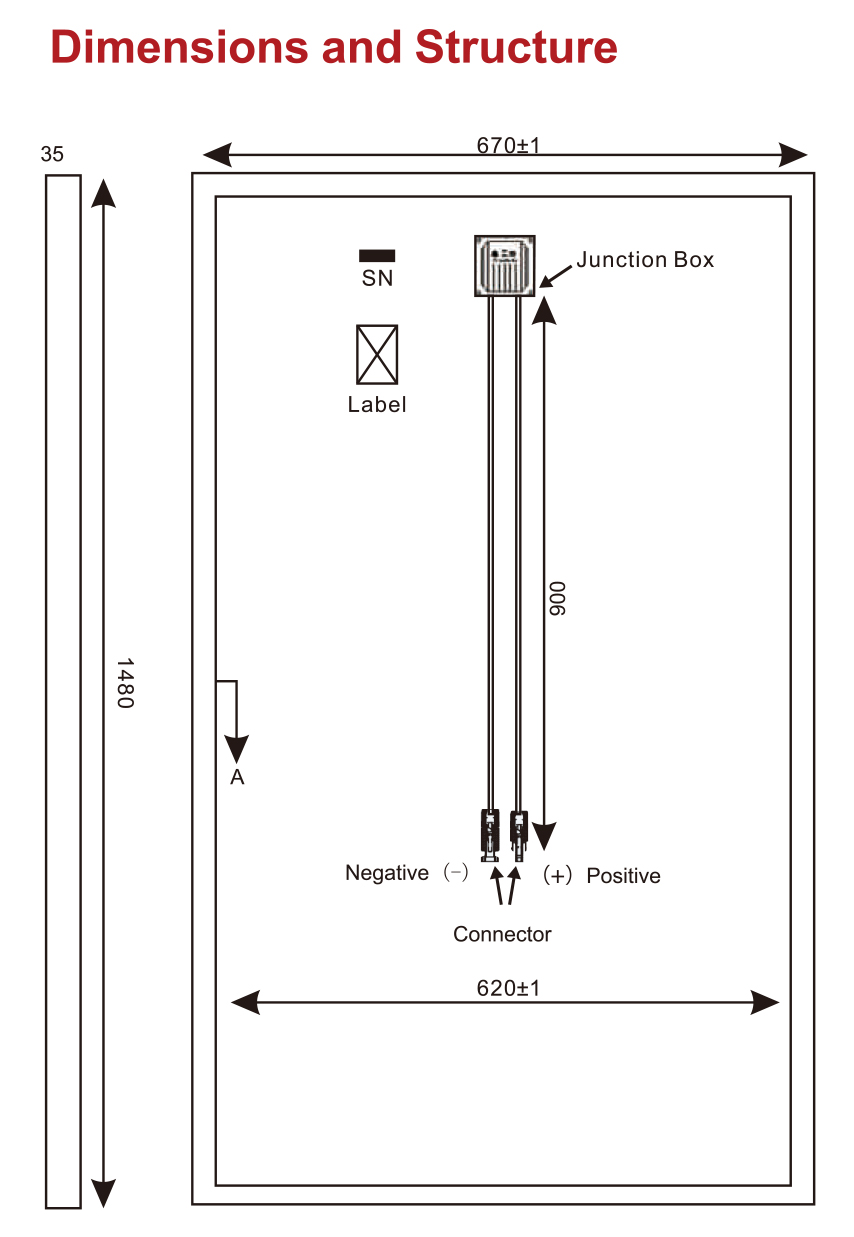

Dimensions(mm) | 1480x670x35 |
Max Power Voltage(Vmp) | 19.68v |
Max Power Current(Imp) | 9.15A |
Open circuit voltage(Voc) | 23.88V |
Short circuit current(ISC) | 9.6A |
Module Efficiency(%） | 18.15% |
Max system voltage | DC 600V(TUV) |
Maximum Series Fuse Rating | 15A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 900mm |
Connectors | MC4 compatible IP67 |
Cell type | Mono-Crystalline Silicon |
Operate Temperture Scope | -40/+85°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Product Details:

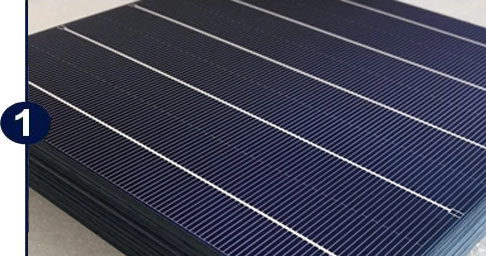

Solar cell
| High conversion efficiency Outstanding power output Long-term stability, reliability Color uniformity |

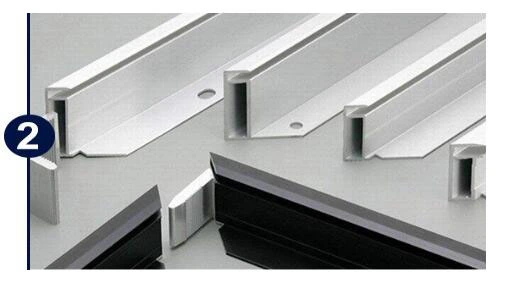

Frame
| Simple and easy installation High brightness and hardness Anti-scratch, smoothness |

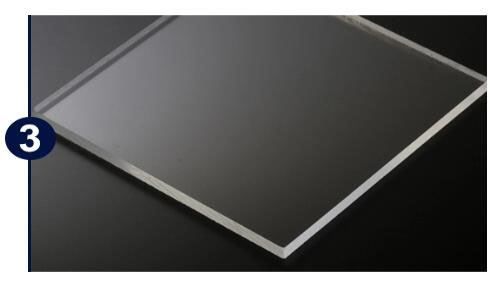

Glass
| High transparency tempered glass High stability, waterproof and high safety Low reflectivity |

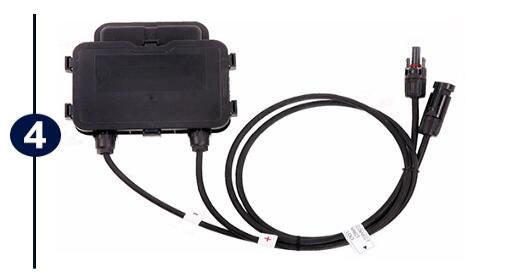

Junction box
| 3 terminal blocks can be set as needed. All connection methods are connected by the quick plug-in. The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance. IP67 rated protection level. |
Packing information
Item | Specification | ||
Container | 20’GP | 40’GP | 40’HQ |
Piece per pallet | 84 | 64 | 90 |
Pallets per container | 7 | 15 | 15 |
Pieces per container | 588 | 960 | 1350 |
Production Capacity:
Our latest annual capacity is 1GW.
Main export market: Germany, Sapin, Poland, Italy, Pakistan, UAE, etc.
Germany and Poland office:
