US $0.20 - US $0.35 / watt

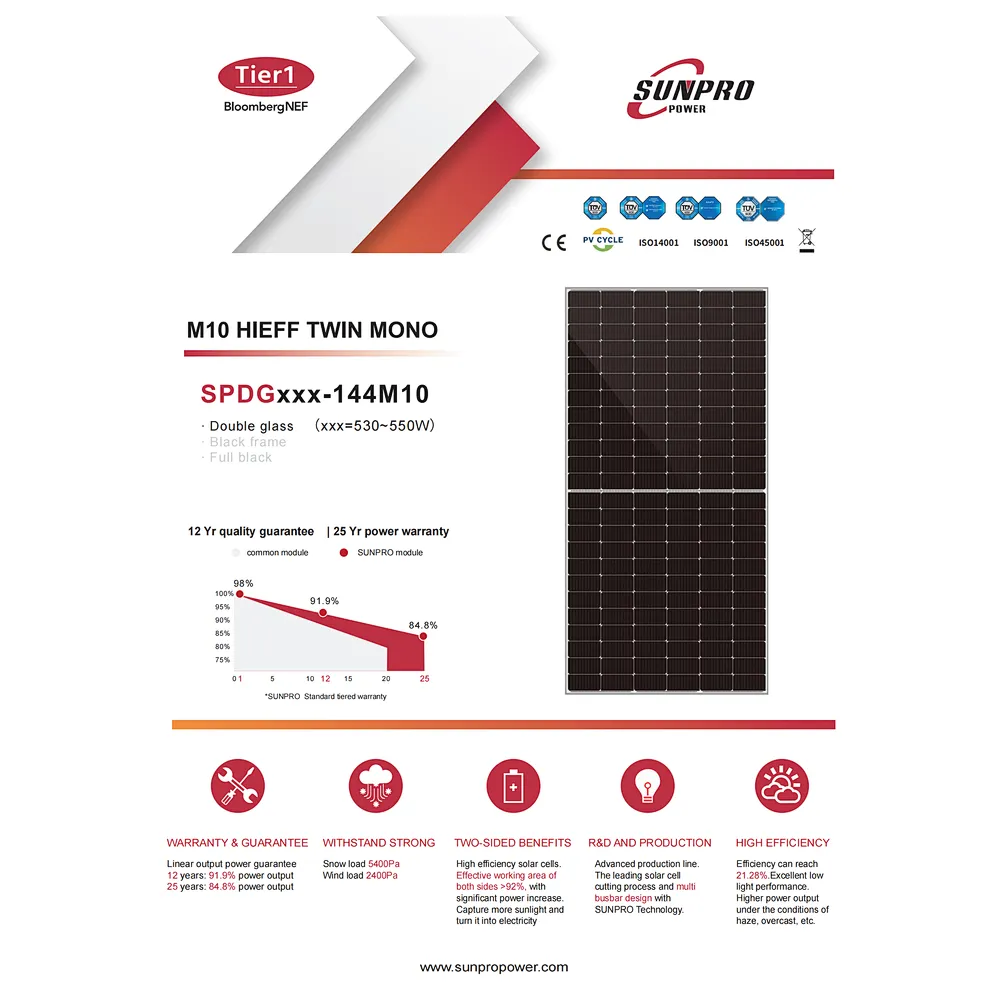

25-year: 84.8% power output ,efficiency rate of up to 21.16%.

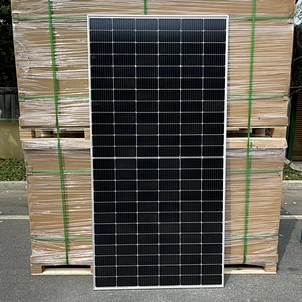

High efficiency M6 double-glass bifacial 460W solar moduels
Sunpro Power is an integrated photovoltaic company focusing on R&D of Solar cells, modules, power system.
The headquarter - Yuhuan Sunpro Power CO.,LTD started in Zhejiang province China in 2008.
We provide solar projects, solar solutions, entire solar system. Our yearly capacity is 1GW, we can produce 3w up to 600w, providing 12 years product guarantee.
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
| Model type | 460W |
| Max power | 460W |
| Max Power Voltage(Vmp) | 41.2V |
| Max Power Current(Imp) | 11.17A |
| Open circuit voltage(Voc) | 50.0V |
| Short circuit current(Isc) | 11.69A |
| Module Efficiency(%） | 21.16% |
| Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
| Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 2094x1038x35mm |
| Weight | 23.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 144 cells |
Packing Configuration
| Item | Specification | ||
Container | 40'HQ | ||
Pieces per pallet | 66 | ||
Pallets per container | 11 | ||
Pieces per container | 726 | ||

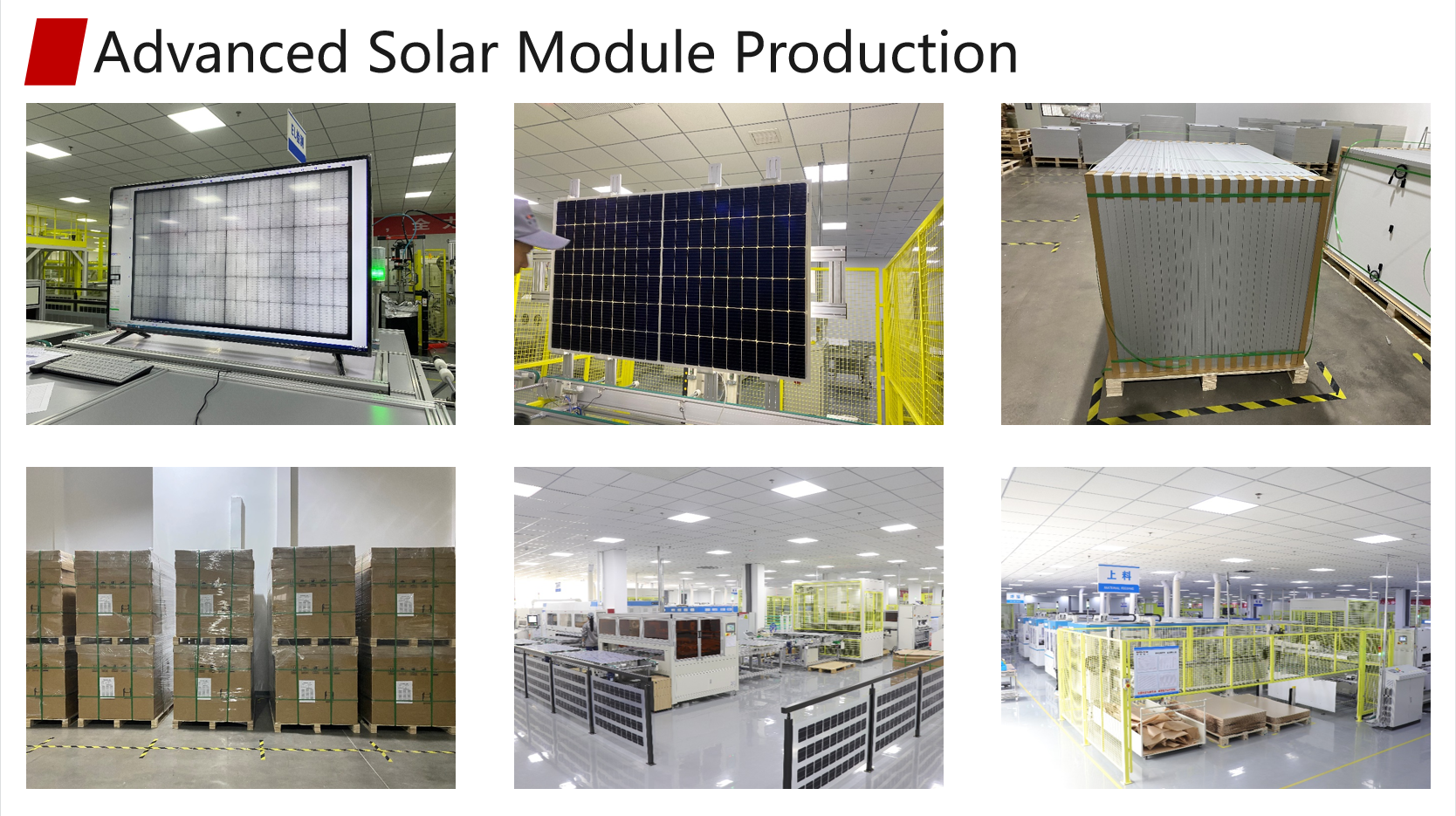

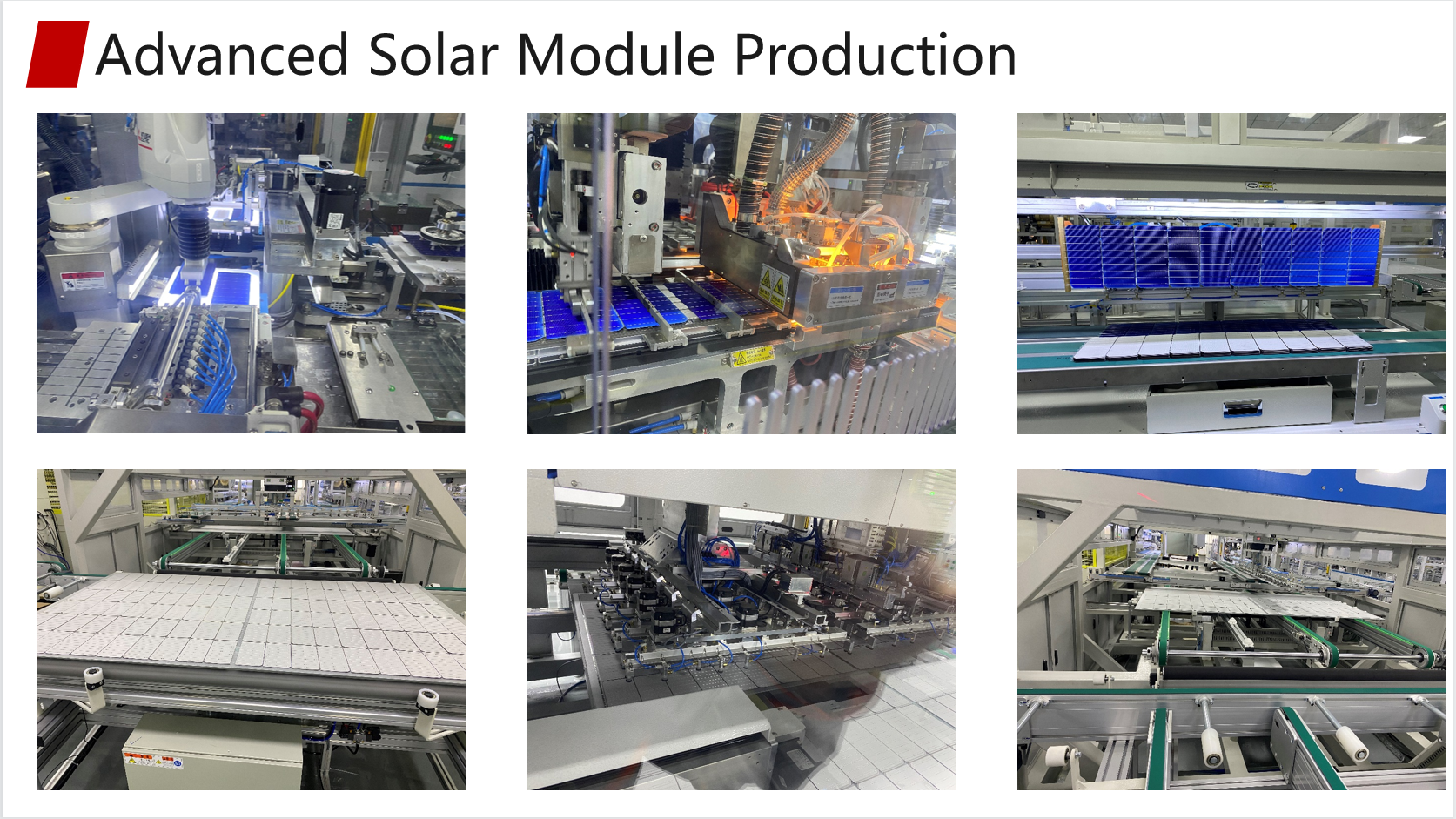

Our Factory

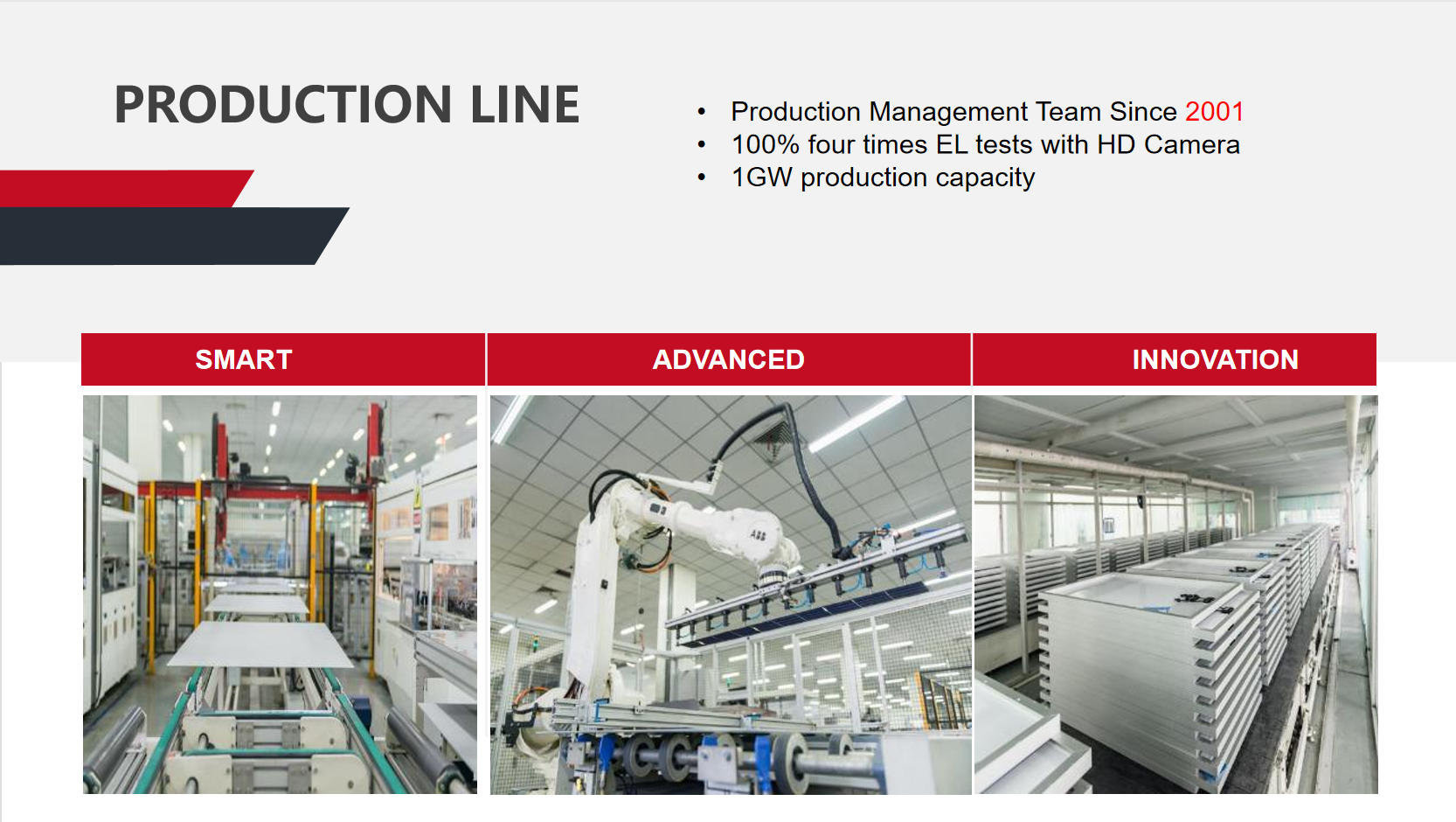

100% Automatic Procution Lines

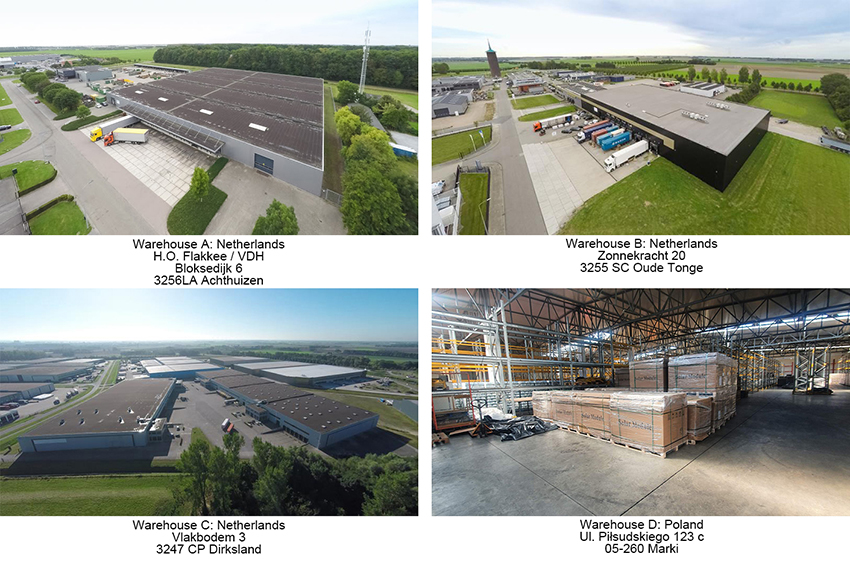

Globle Warehouse

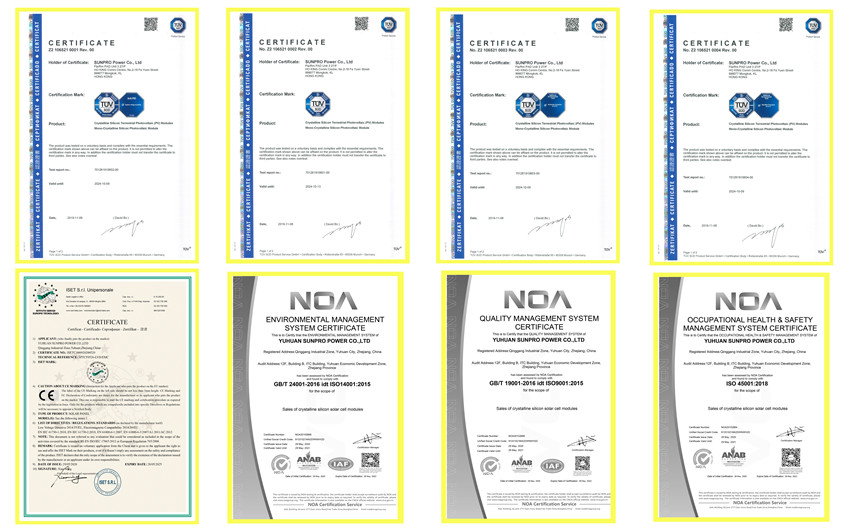

Certificates
Our Advantages
Common questions:
1) What is the difference between polycrystalline and monocrystalline panels? Monocrystalline solar cells require a more complicated manufacturing process and higher energy usage than polycrystalline cells, therefore the price for a polycrystalline panel is lower.
2) How should I connect the panels: parallel or serial? That depends on you :) But it is very important to adapt the whole system to a chosen sort of connection.
3) Which battery type should I use? You can use any sort of battery type, but for the best functioning is best to use the solar battery.
4) Which charging controller should I use? That depends on the number of panels. The charge controller has to endure about 10% more current than the modules can generate at their maximum.
5) What is required when I want to connect two panels parallel? 1X MC4 plug-in, 1x Y- plug-in.
