US $0.20 - US $0.35 / watt
MONO PREC 185W 190W 195W 200W 36 Cells Solar Panel

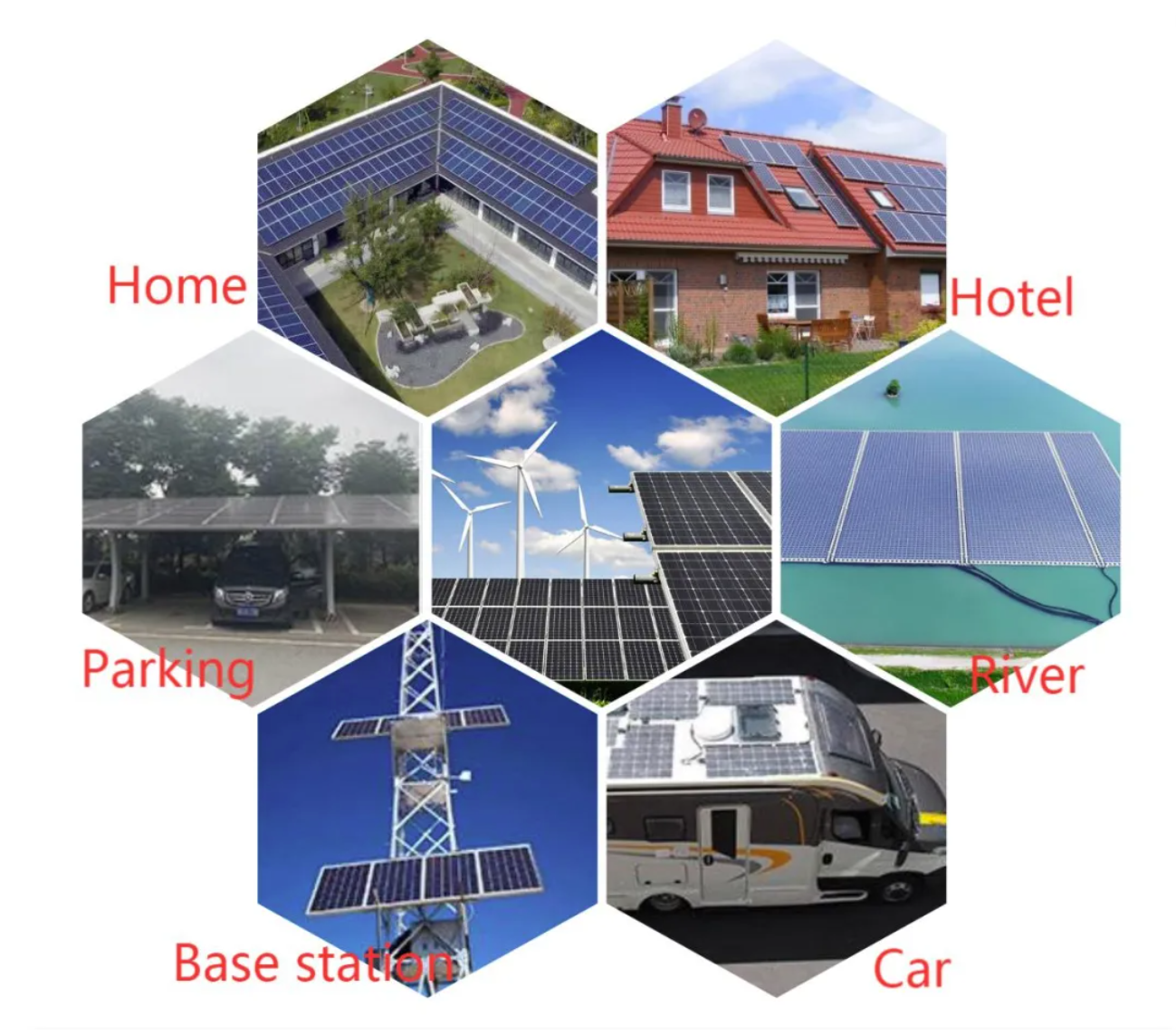

The solar panels for residential use materials include glass, EVA, solar cells, aluminum alloy shells, tin-clad copper sheets, stainless steel brackets, batteries, and another new coating. It is certified to withstand challenging environmental conditions and can be used in motorhomes, boats, backup power supplies, engine rooms, commercial and residential.
- Bypass diode minimizes the power drop by shade.
- The conversion efficiency of solar cells is above 19%.
- White tempered glass, EVA resin, weather proof film, and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
- Waterproof Perfect for grid applications.
- Product guarantee 12 years.
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 185W |
Max power | 185W |
Max Power Voltage(Vmp) | 19.8V |
Max Power Current(Imp) | 9.35A |
Open circuit voltage(Voc) | 24.3V |
Short circuit current(Isc) | 9.89A |
Module Efficiency(%） | 18.27% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 1500x675x35mm |
| Weight | 11.7kg |
| Front glass | 3.2mm tempered glass |
| Output cables | 4mm² Symmetrical lengths 1100mm |
| Connectors | MC4 compatible IP68< |
| Cell type | Mono-Crystalline Silicon |
| Connectors | Mc4 compatible IP68 |
| Number of cells | 36 cells |

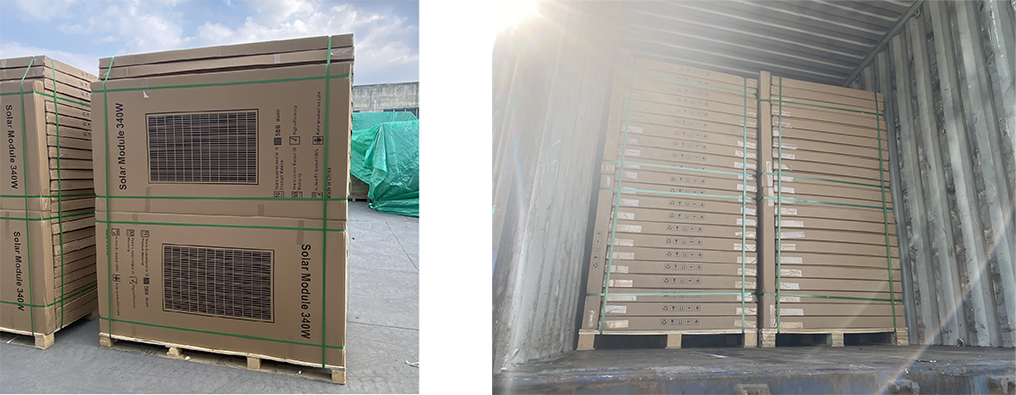

Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 84 | 64 | 90 |
Pallets per container | 7 | 15 | 15 |
Pieces per container | 588 | 960 | 1350 |

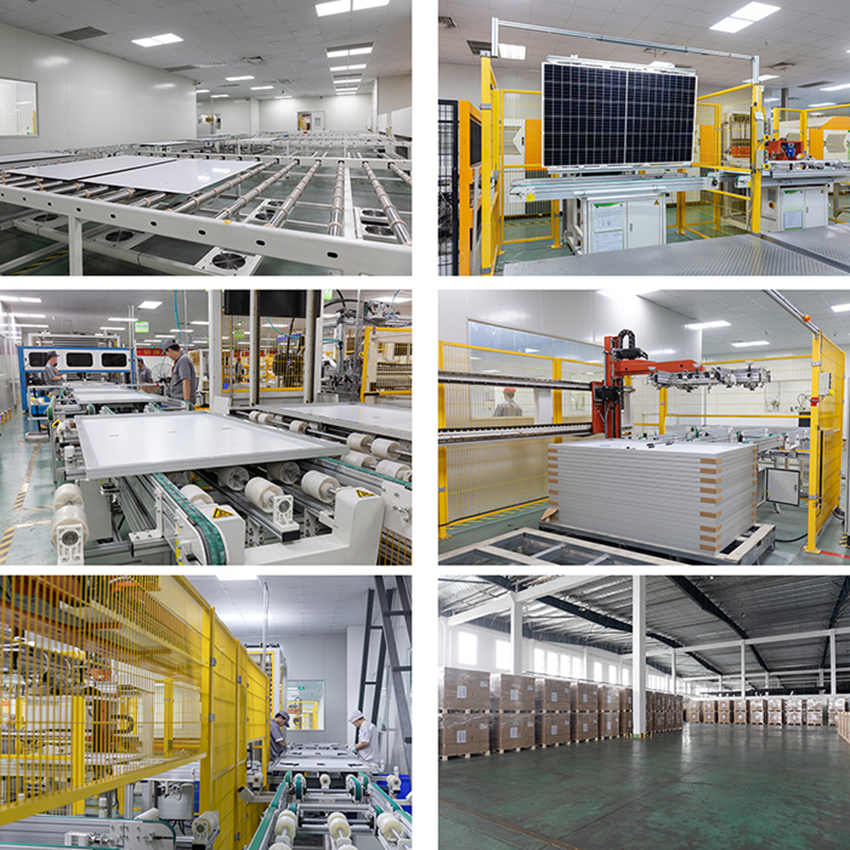

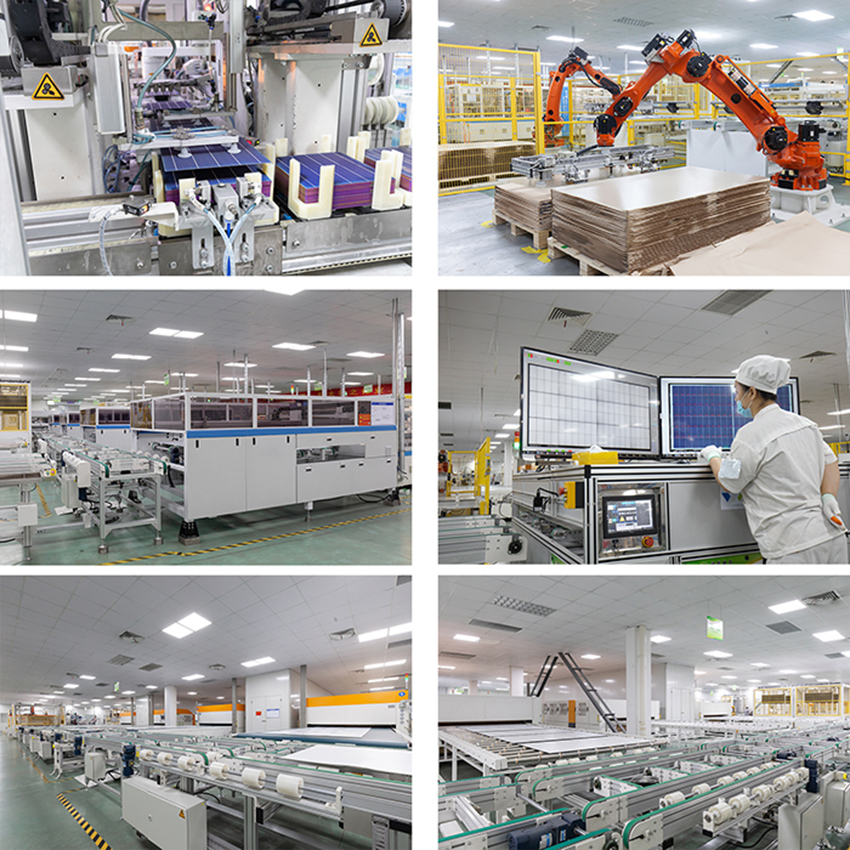

Our Factoy 100% Automatic Procution Lines

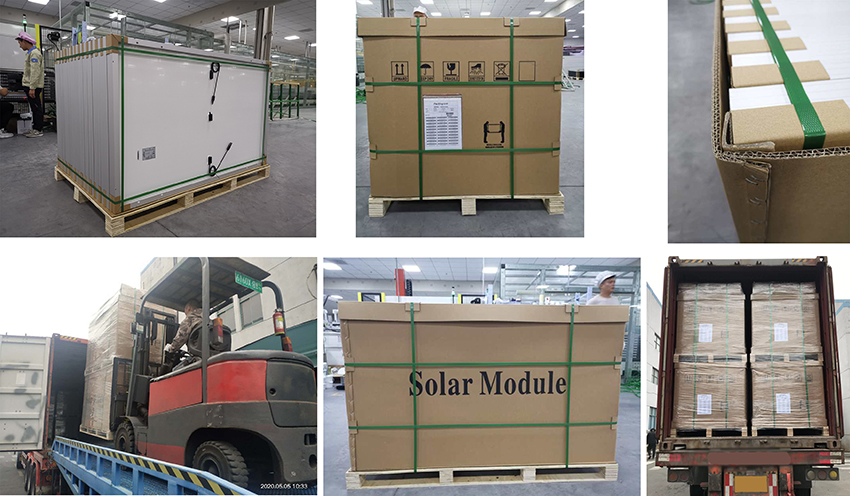

Packing

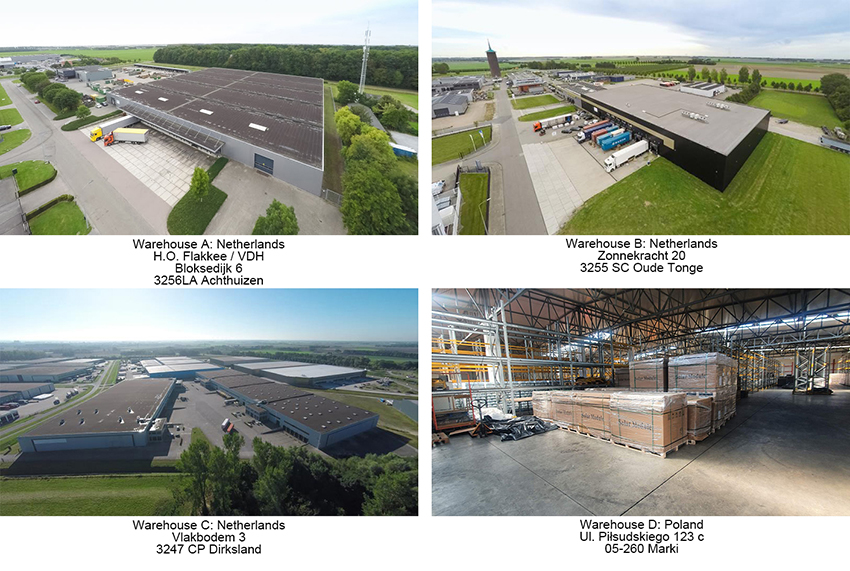

Global Warehouse
Certificates
