US $0.20 - US $0.35 / watt
12-year material and workmanship
Withstands high winds (2400Pa) and snow loads (5400Pa)
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
275W Poly-Crystalline Solar Module
Sunpro Power is an integrated photovoltaic manufacturer focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management, and strict quality control, power up to 540W. Our factory is based in China, equipped with fully automatic production lines at 800MW annual capacity.
High Quality & Efficiency Crystalline Silicon Cells: A grade solar cells
A Wide Range of Products: Mono-crystalline solar panel and poly(multi)-crystalline solar panel(depending on configurations)
High Reliability: Guaranteed mechanical resistance to severe weather conditions for reliable power output.Compliant with IEC 61215 and IEC61730.Certified by TUV, CE, ISO and etc.
Tight Tolerance: Guaranteed positive tolerance from 0-3% ensures power ♦output reliability.
Traceability: We provide flash report and embedded bar code ID for each module for complete traceability
A Wide Range of Applications: Independent systems(household, powder supplies for remote areas, remote systems, etc.)and grid-connected photovoltaic power stations(residential, commercial, industrial power supply systems)
Warranty:10-year limited product warranty and 25-year limited power guarantee
Production Specification:
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 275W |
Max power | 275W |
Max Power Voltage(Vmp) | 31.1V |
Max Power Current(Imp) | 8.84A |
Open circuit voltage(Voc) | 38.1V |
Short circuit current(Isc) | 9.25A |
Module Efficiency(%） | 16.80% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Dimensions | 1650x992x35mm |
Weight | 19.0kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Poly-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 60 cells |
Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 60 | 52 | 64 |
Pallets per container | 6 | 14 | 14 |
Pieces per container | 360 | 728 | 896 |

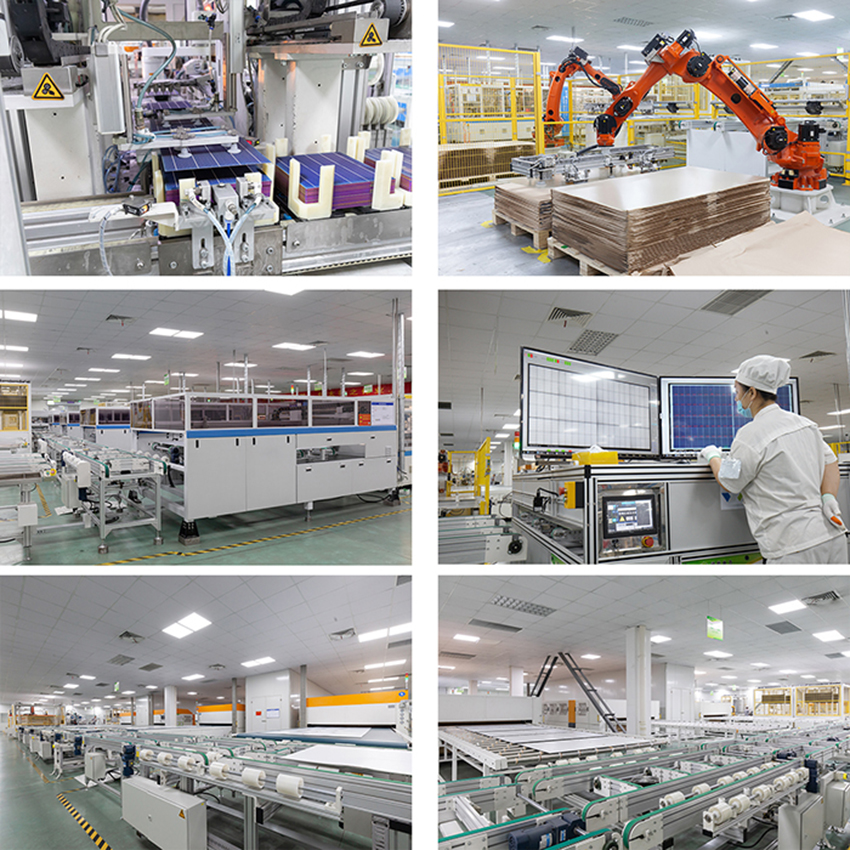

Our Factory

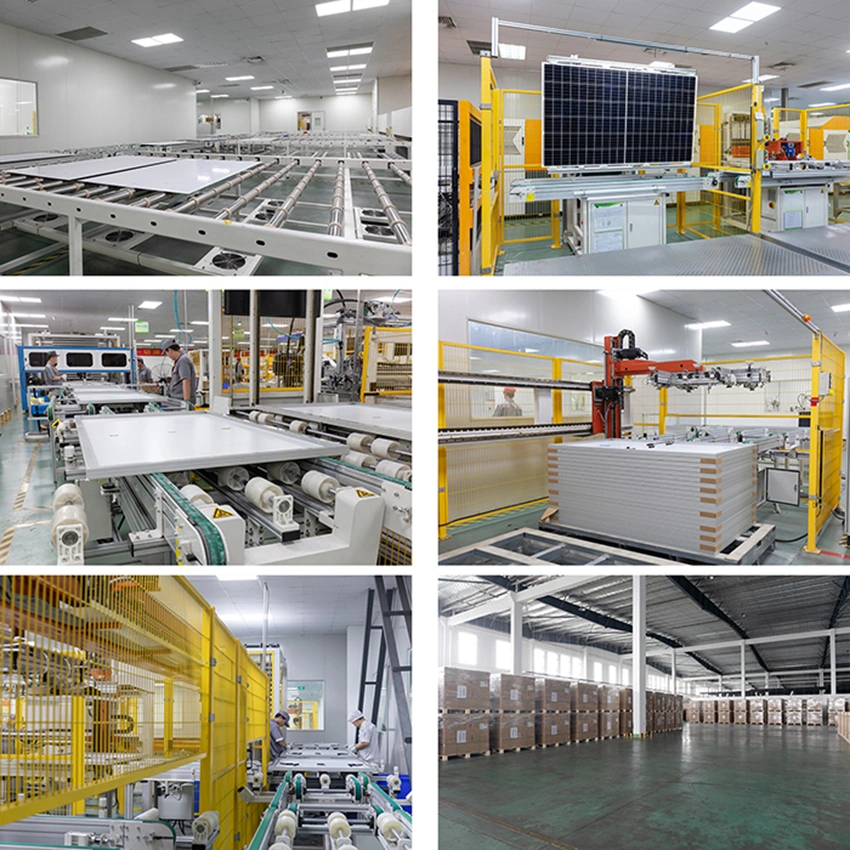

100% Automatic Procution Lines
Packing

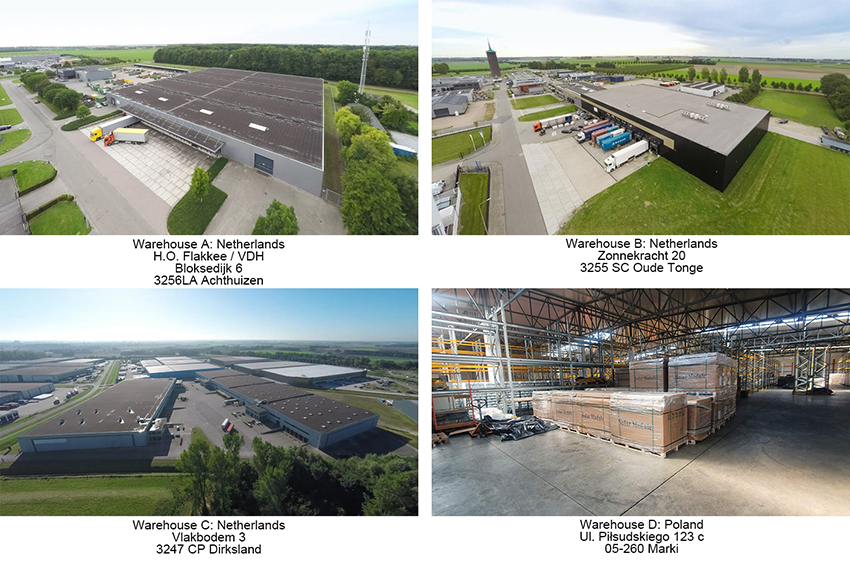

Global Warehouse
Certificates
Our main market
In the past decades, Sunpro Power built a wide sales network in the global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside the portable solar system, etc.
FAQ
1. Q: Could you produce 166mm cells?
A: Yes, we do.
2. Q: Do you have a stock warehouse in the EU market?
A: Yes, we have. We set warehouses in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3. Q: May I have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4. Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5. Q: Where is the port of loading?
A: Ningbo or Shanghai
6. Q: Can you do OEM?
A: Yes, we are welcome to do OEM for our clients.
7. Q: Could we be your agent or distributor?
A: Yes, we do.
