US $0.20 - US $0.35 / watt
Withstands high winds (2400Pa) and snow loads (5400Pa)
El tested solar modules; no hot-spot heating guaranteed
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
235W Poly-Crystalline Solar Module
Sunpro 156x156 Poly Solar photovoltaic modules are built with Sunpro's highly regulated manufacturing standards and latest Standard technology. Sunpro's Polycrystalline Standard Modules are built to deliver the most cost-effective performance. reduce surface shading and boost sunlight absorption into the cell and give the product its sleek appearance.
Advanced Features:
• Entire module certified to withstand high wind loads (2400 Pa) and snow loads (5400 Pa)
• ISO9001, ISO14001
• An Sunpro Power high-power residential solar module is an aesthetic addition to most roofs.
• Has an elegant appearance that blends beautifully with your home roofline
• Durable: Provides long life and enhanced cell performance
• High Performance: Uses advanced surface texturing to improve efficiency
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 235W |
Max power | 235W |
Max Power Voltage(Vmp) | 25.6V |
Max Power Current(Imp) | 9.18A |
Open circuit voltage(Voc) | 31.6V |
Short circuit current(Isc) | 9.56A |
Module Efficiency(%） | 17.95% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Dimensions | 1320x992x35mm |
Weight | 14.2kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Poly-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 48 cells |

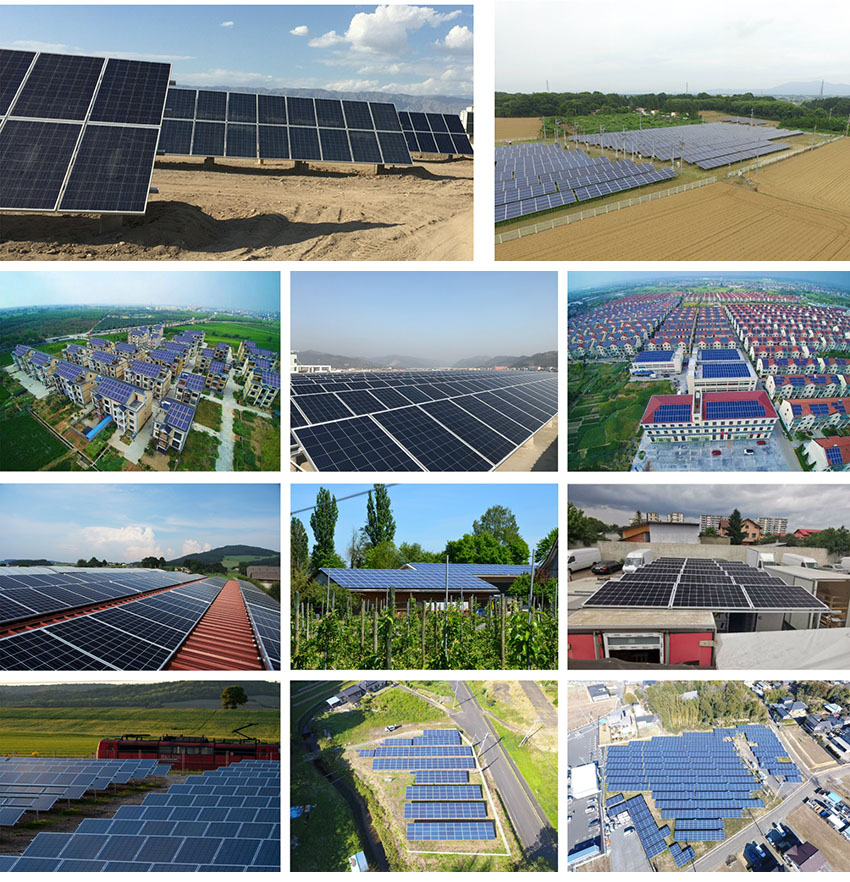

Reference

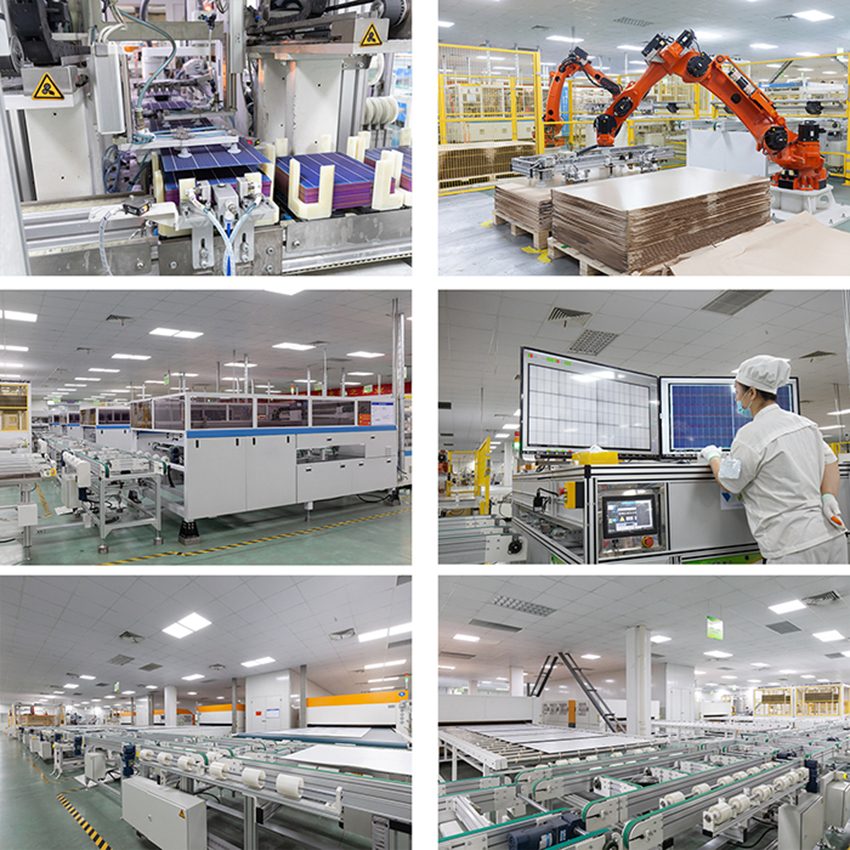

Our Factory

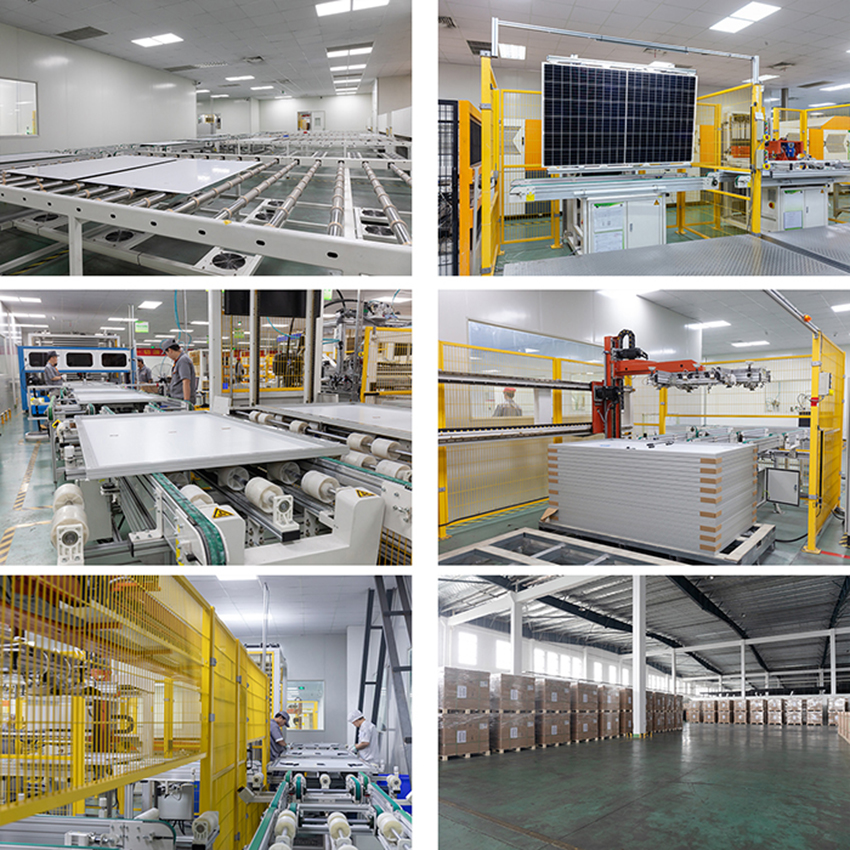

100% Automatic Procution Lines
Packing

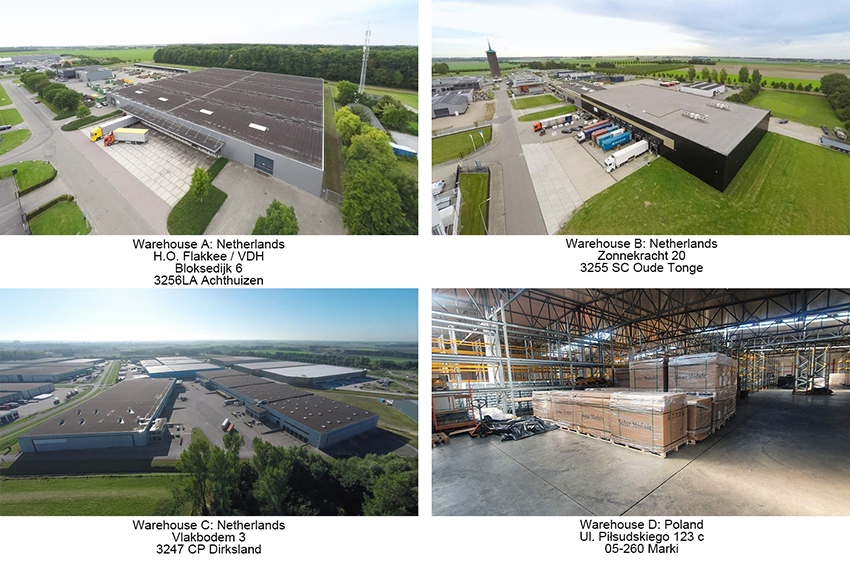

Global Warehouse
Certificates
Our main market
In the past decades, Sunpro Power built a wide sales network in the global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside the portable solar system, etc.
FAQ
1. Q: Could you produce 166mm cells?
A: Yes, we do.
2. Q: Do you have a stock warehouse in the EU market?
A: Yes, we have. We set warehouses in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3. Q: May I have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4. Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5. Q: Where is the port of loading?
A: Ningbo or Shanghai
6. Q: Can you do OEM?
A: Yes, we are welcome to do OEM for our clients.
7. Q: Could we be your agent or distributor?
A: Yes, we do.
