US $0.20 - US $0.35 / watt
Withstands high winds (2400Pa) and snow loads (5400Pa)
El tested solar modules; no hot-spot heating guaranteed
Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.
Trustworthy High-Efficiency Home 160W 36 Cells Poly Solar Panel Residential Project
About us
Sunpro Power is an integrated photovoltaic manufacturer focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management, and strict quality control, power up to 540W. Our factory is based in China, equipped with fully automatic production lines at 800MW annual capacity.
12 Years Factory Manufacture Experience Since 2008 With TUV, ISO, CE, PV CYCLE Certificates
800MW/YEAR Production Capacity With Full Automatic Production Line.
12 Years Workmanship Guarantee
12Years 90.7% Power Output
25 Years 80.2% Power Output
24 hours after-sale online service
Technology Advantage
1.LOW LID(Silicon Wafer With Ga)
2.Synergism EVA
3.100% EL Test With 24 Megapixel HD Camera
4.Four Steps Appearance Inspect
5.MBB Cells Increase 10W
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 160W |
Max power | 160W |
Max Power Voltage(Vmp) | 18.81V |
Max Power Current(Imp) | 8.51A |
Open circuit voltage(Voc) | 22.56V |
Short circuit current(Isc) | 9.02A |
Module Efficiency(%） | 16.14% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Dimensions | 1480x670x35mm |
Weight | 11.5kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Poly-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 36 cells |
Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 84 | 64 | 90 |
Pallets per container | 7 | 15 | 15 |
Pieces per container | 588 | 960 | 1350 |

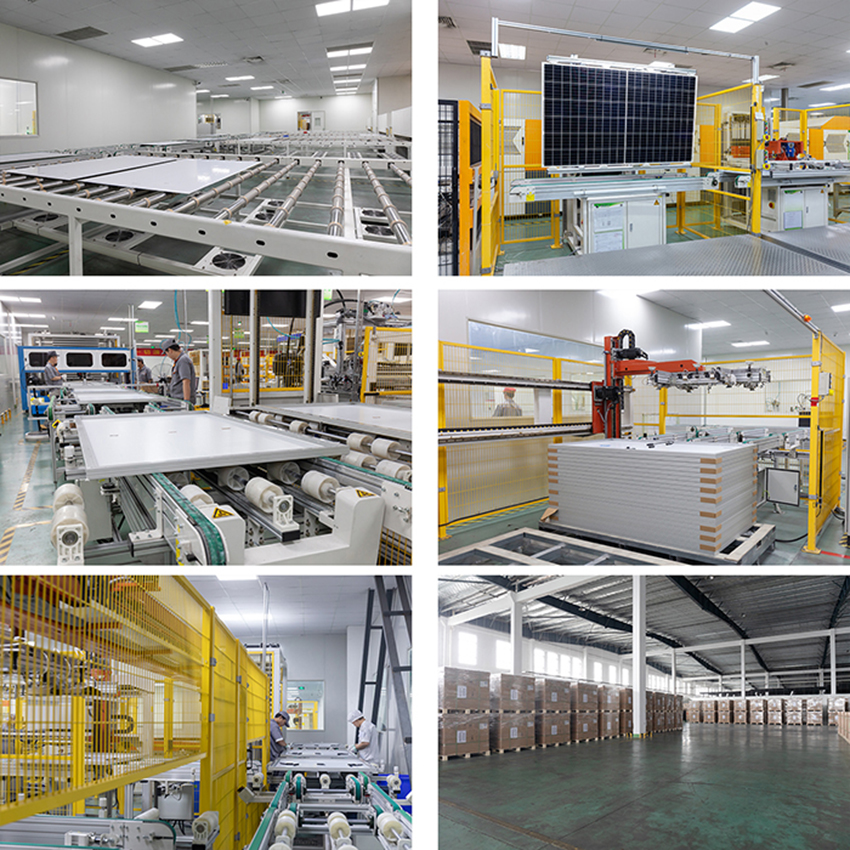

Our Factory

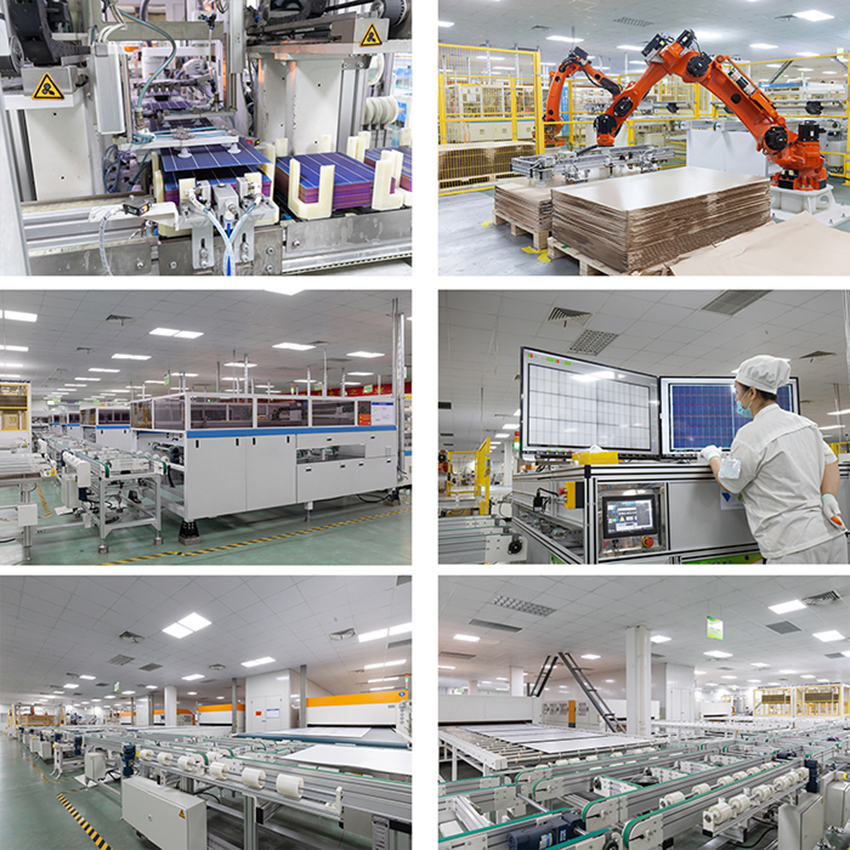

100% Automatic Production Lines

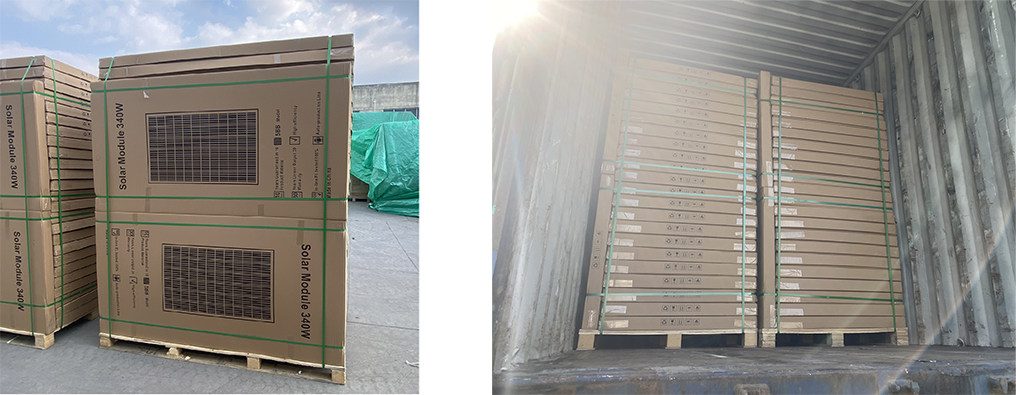

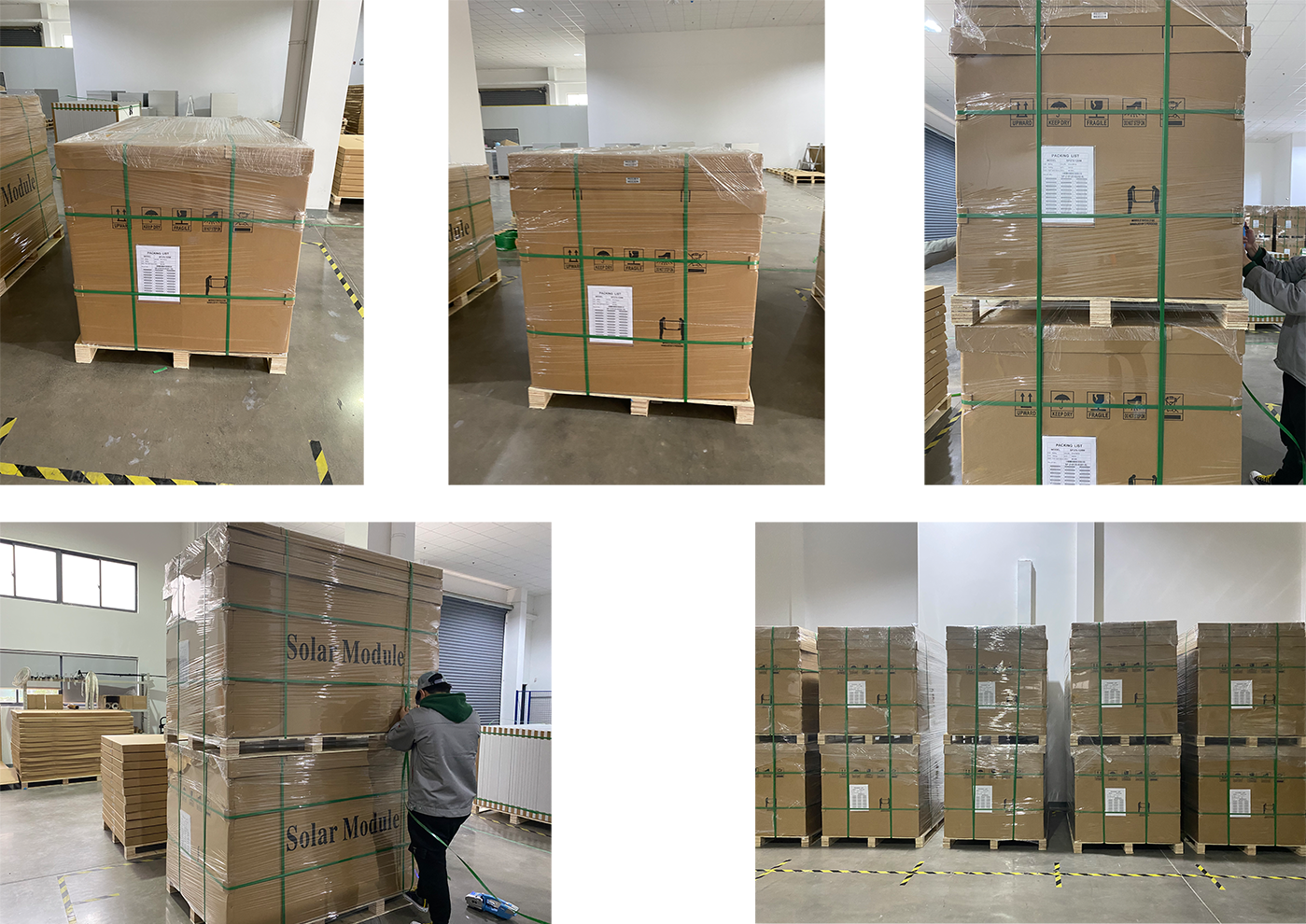

Packing

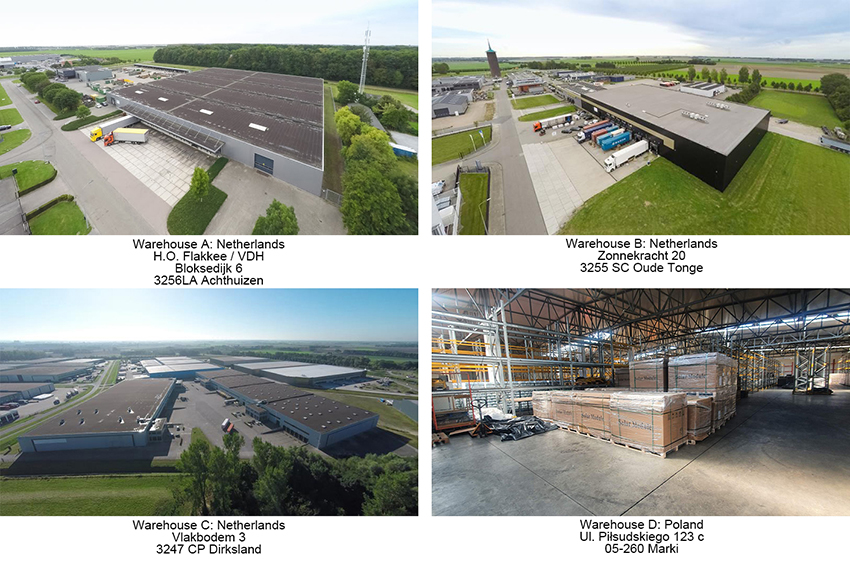

Global Warehouse
Certificates
Our main market

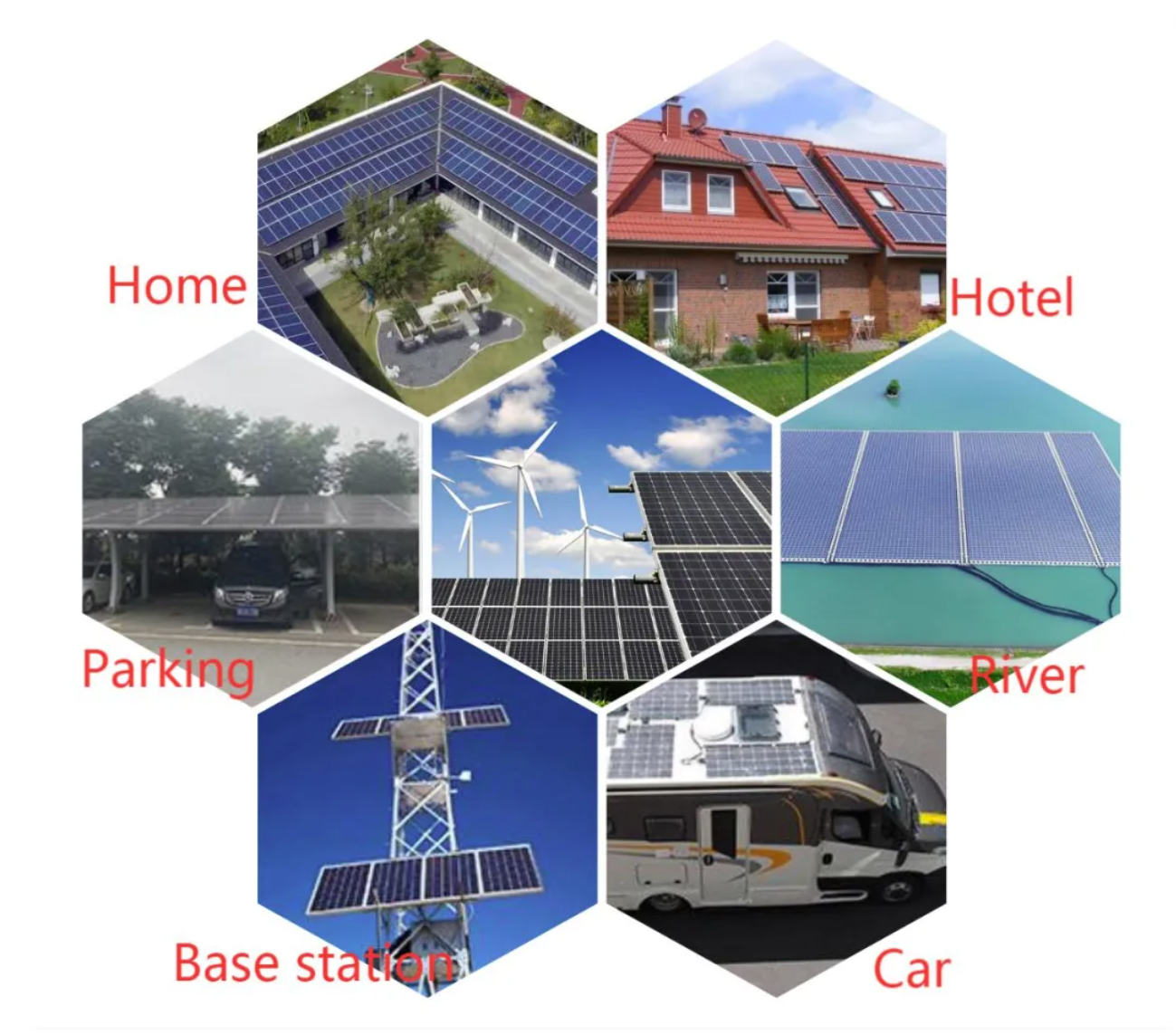

In the past decades, Sunpro Power built a wide sales network in the global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside the portable solar system, etc.
FAQ
1.Q: Could you produce 166mm cells?
A: Yes, we do.
2.Q: Do you have a stock warehouse in the EU market?
A: Yes, we have. We set warehouses in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q: May I have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4.Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q: Where is the port of loading?
A: Ningbo or Shanghai
6.Q: Can you do OEM?
A:Yes, we are welcome to do OEM for our clients.
7.Q:Could we be your agent or distributor?
A:Yes, we do.
