US $0.20 - US $0.35 / watt
12 years production warranty, 25 years linear warranty.
12-year: 90.7% power output, 25-year: 80.2% power output.
290W 295W 300W 54M Mono Solar Panel Easy to install Roof solar project
- High Quality&Efficiency Crystalline Silicon Cells:A grade solar cells
- A Wide Range of Products: Mono-crystalline solar panel and poly(multi)-crystalline solar panel(depending on configurations)
- High Reliability: Guaranteed mechanical resistance to severe weather conditions for reliable power output.Compliant with IEC 61215 and IEC61730.Certified by TUV, CE, ISO and etc.
- Tight Tolerance: Guaranteed positive tolerance from 0-3% ensures power output reliability.
- Traceability:We provide flash report and embedded bar code ID for each module for complete traceability

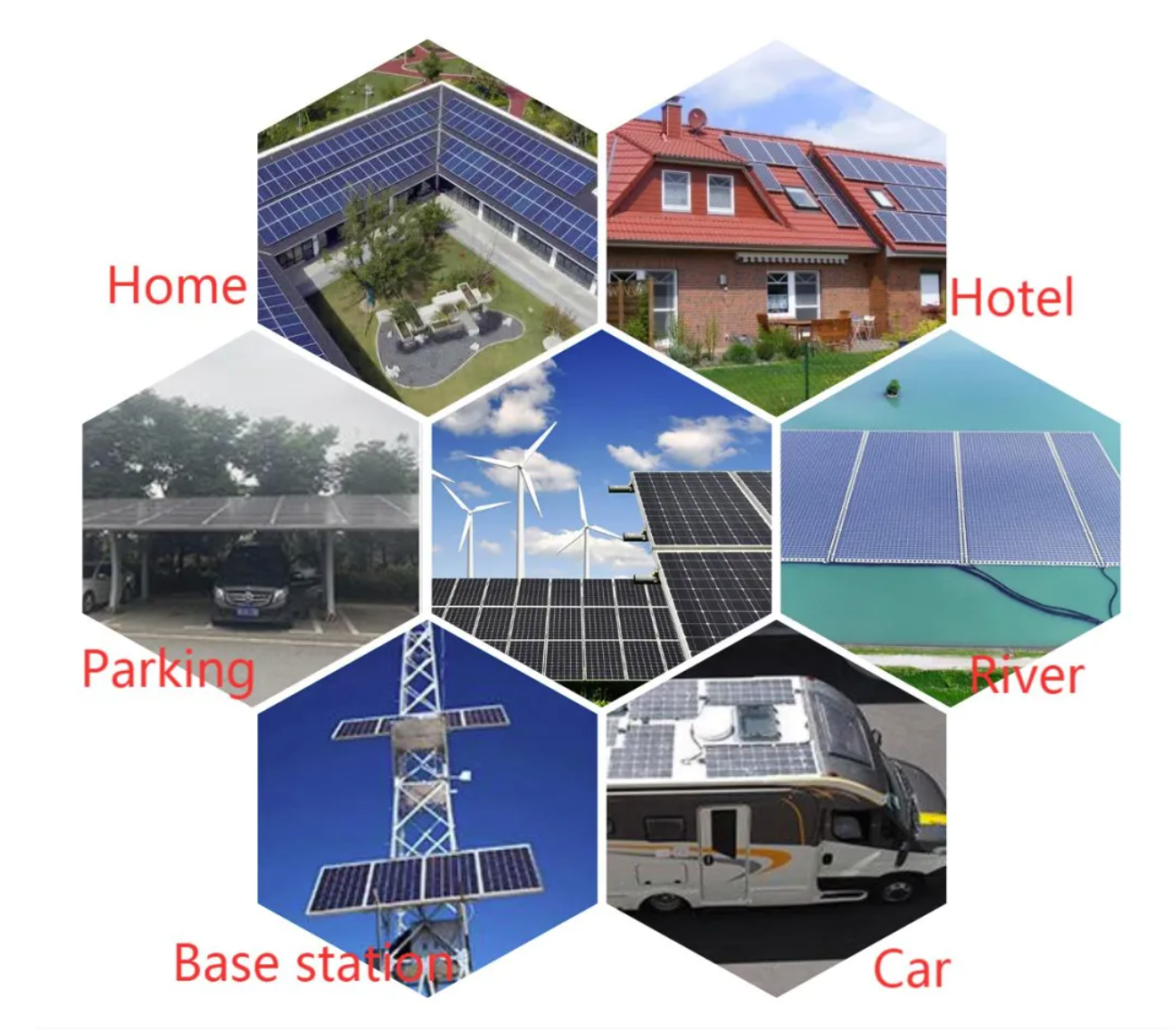

- A Wide Range of Applications:Independent systems(household, powder supplies for remote areas, remote systems, etc.)and grid-connected photovoltaic power stations(residential, commercial, industrial power supply systems)
- Warranty:12-year limited product warranty and 25-year limited power guaranteeApplication scenario：
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 300W |
Max power | 300W |
Max Power Voltage(Vmp) | 30.4V |
Max Power Current(Imp) | 9.87A |
Open circuit voltage(Voc) | 37.6V |
Short circuit current(ISC) | 10.36A |
Module Efficiency(%） | 19.96% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Dimensions | 1500x1002x35mm |
Weight | 16.1kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 54 cells |
Our Factory

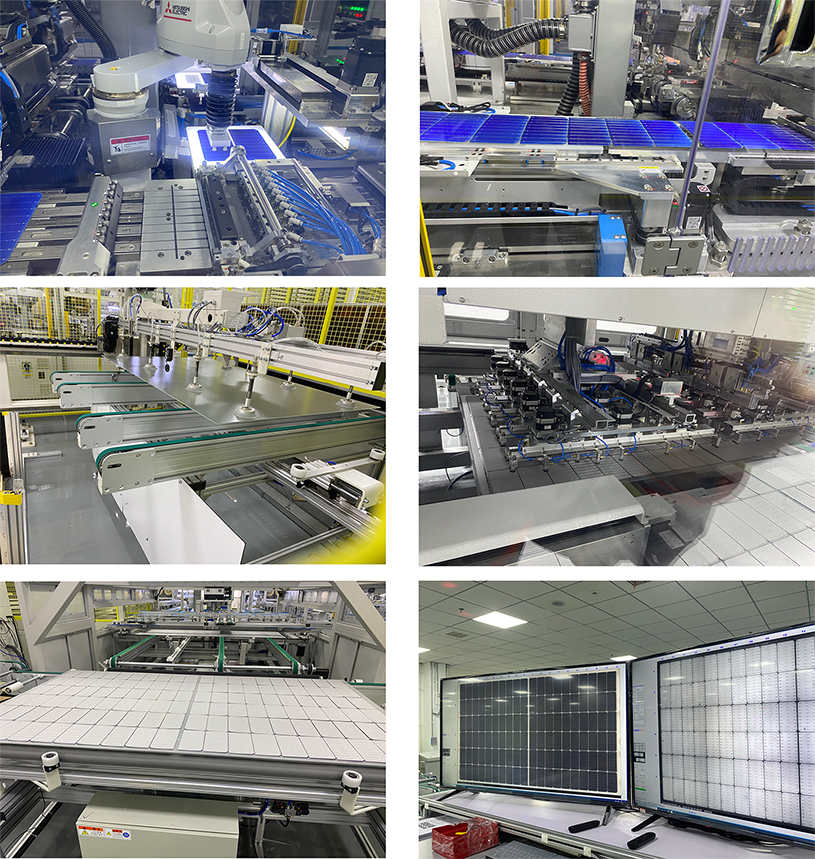

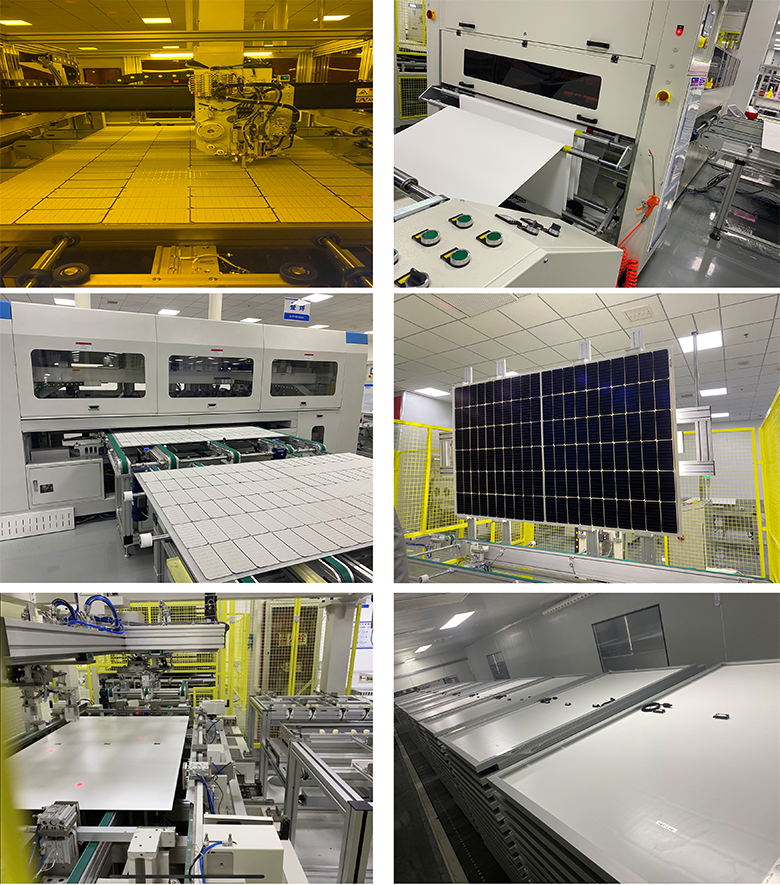

100% Automatic Procution Lines
Packing

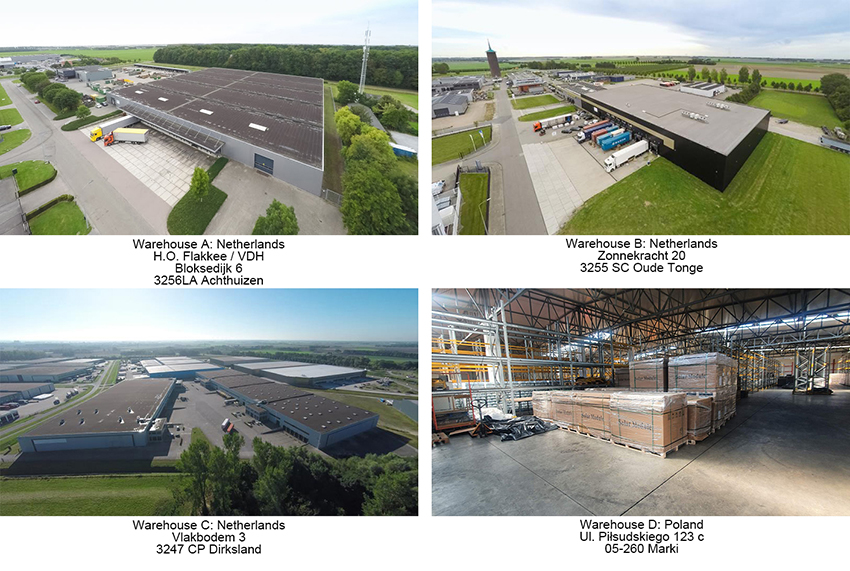

Global Warehouse

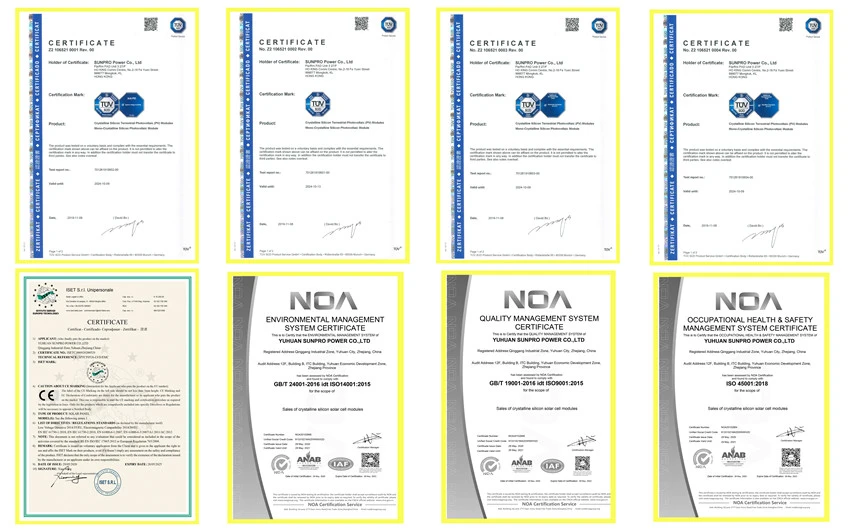

Certificates
FAQ
1.Q: Could you produce 166mm cells?
A:Yes,we do.
2.Q:Do you have stock warehouse in EU market?
A: Yes, we have. We set warehouse in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q:May i have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4.Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q:Where is the port of loading?
A: Ningbo or Shanghai
6.Q: Can you do OEM?
A: Yes, we are welcome to do OEM for our clients.
7.Q:Could we be your agent or distributor?
A:Yes, we do.
