US $0.20 - US $0.35 / watt
395W 400W 410W MONO New Tech PERC With Solar Panel Kit Set For Home
Sunpro Power is an integrated photovoltaic solar panels manufacturer. We focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management, and strict quality control, power up to 540W. Our factory is based in china, equipped with fully automatic production lines at 800MW annual capacity. We provide 12 years quality warranty and 25 years power output guarantee. During the warranty period, you can contact us if you have any questions.
PV CELL:
>Silicon dioxide + blue silicon nitride composite anti-reflection film (PID Free).
>The bus bar has two forks on the head.
>Low hot spot effect.
JUNCTION BOX:
>The outer casting(junction box, connector )has the strong ability of anti-aging.
>The produce to be appropriate for use under any adverse outdoor circumstances.
>The ultrathin structure design, internal irrigation rubber seal.
BACKSHEET:
>Good electrical insulation and breakdown.
>Excellent UV resistance and aging resistance.
>Double-side fluorocarbon structure(PVF//PET//PVF) with the integration of Tedlar(DuPont).
GLASS:
>Precise edge processing and cutting.
>Minimal optical distortion and non-existent roller marks.
>Higher light transmittance ensures higher module power output.
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 395W |
Peak power(Pmax) | 395W |
Max Power Voltage(Vmp) | 41.4V |
Max Power Current(Imp) | 9.55A |
Open circuit voltage(Voc) | 49.5V |
Short circuit current(ISC) | 10.12A |
Module Efficiency(%） | 19.92% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 1979x1002x35mm |
| Weight | 20.0kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 72 cells |
Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 56 | 54 | 56 |
Pallets per container | 5 | 12 | 12 |
Pieces per container | 280 | 648 | 672 |
Our Factory

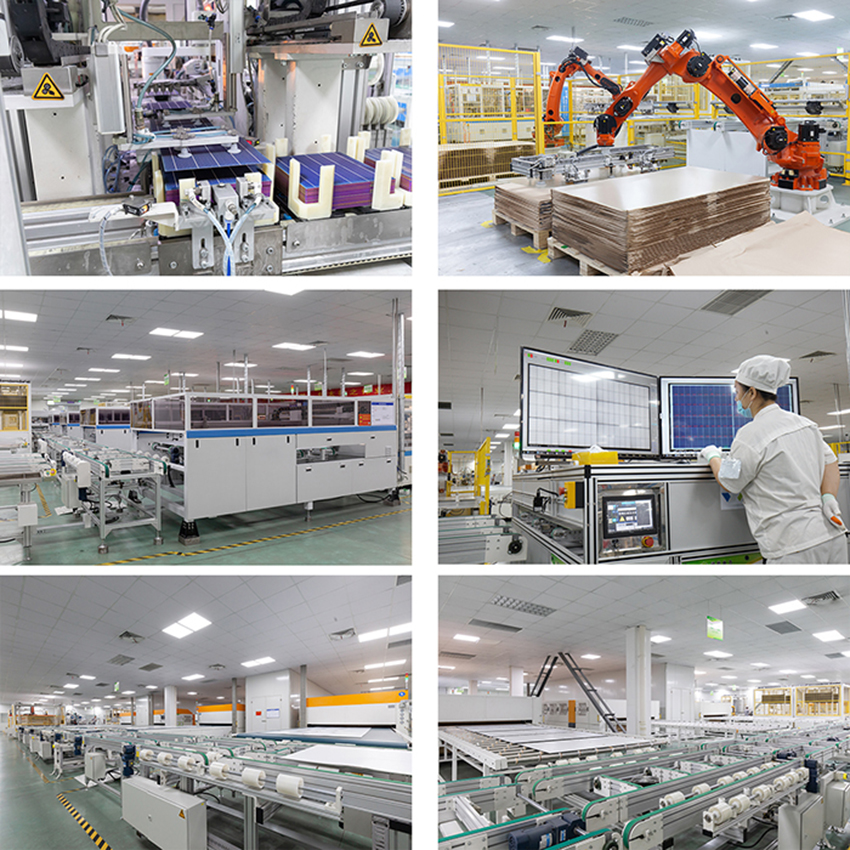

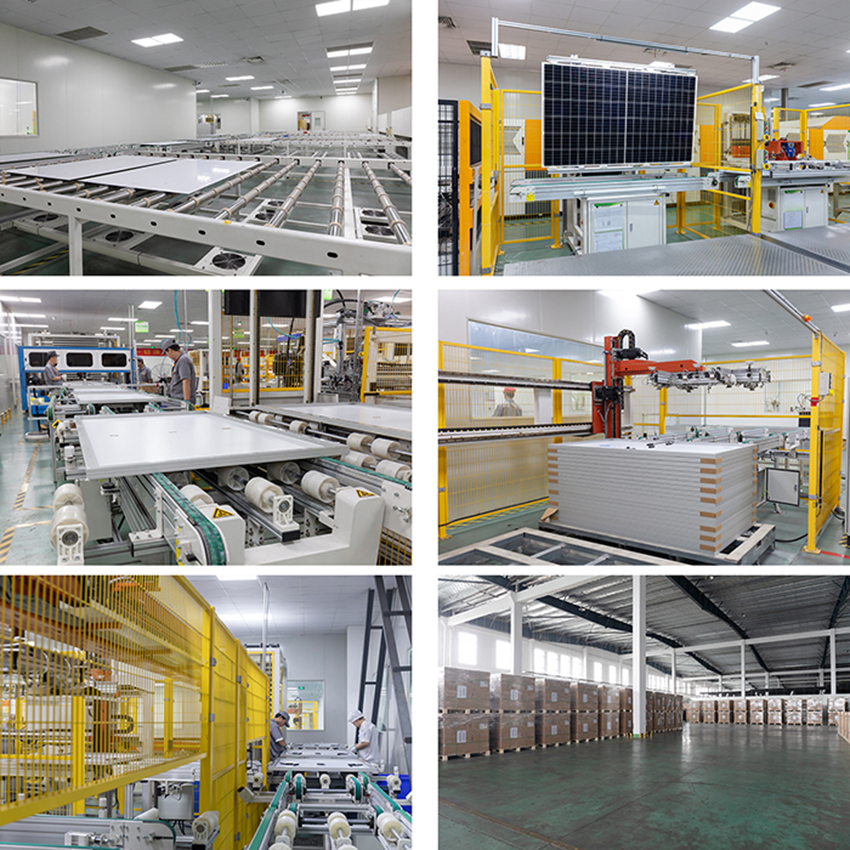

100% Automatic Procution Lines

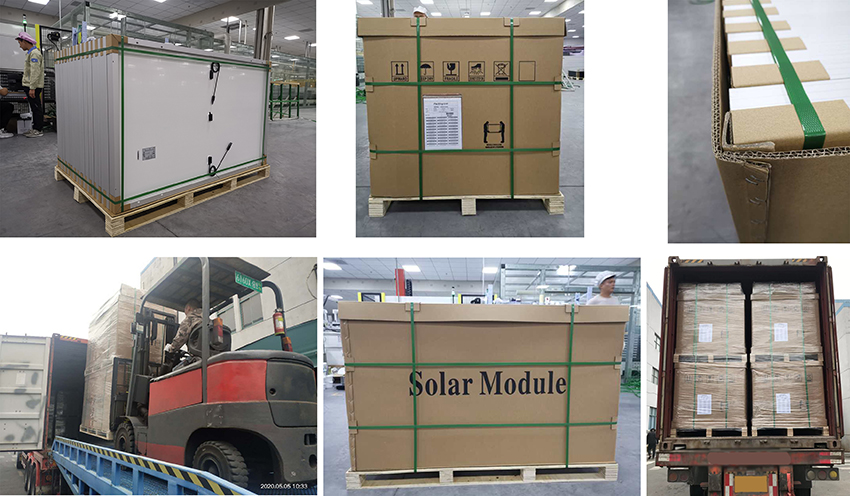

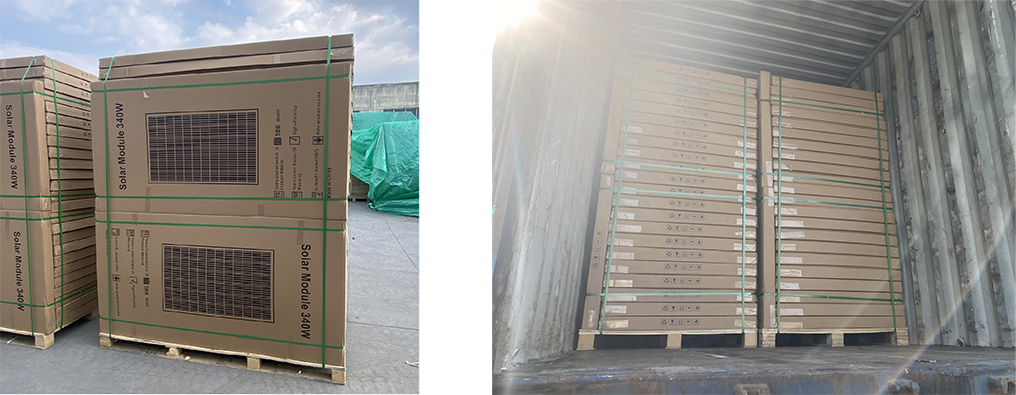

Packing

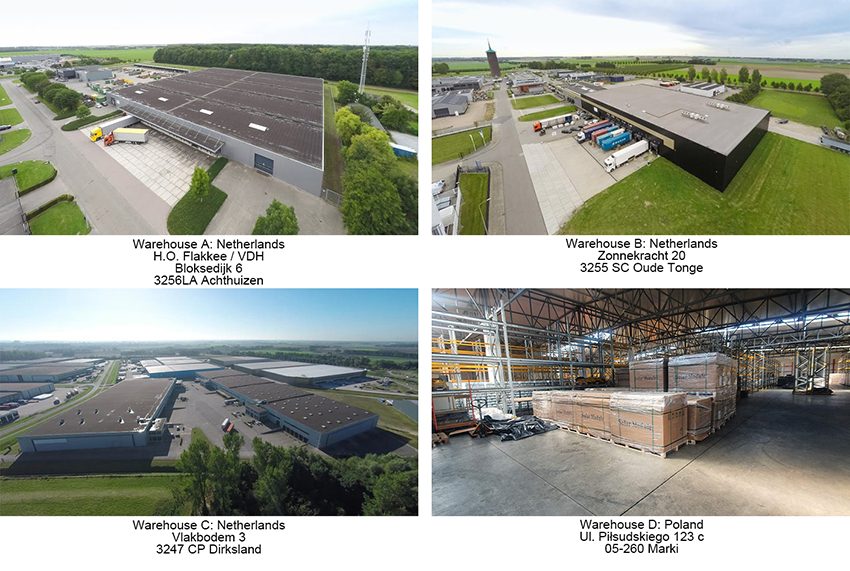

Globle Warehouse
Certificates
FAQ
1.Q:Could you produce 166mm cell?
A:Yes,we do.
2.Q:Do you have stock warehouse in EU market?
A:Yes, we have. We set warehouse in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q:May i have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
4.Q:How about the delivery time?
A:Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q:Where is the port of loading?
A:Ningbo or Shanghai
6.Q:Can you do OEM?
A:Yes, we are welcome to do OEM for our clients.
7.Q:Could we be your agent or distributor?
A:Yes, we do.
