US $0.20 - US $0.35 / watt

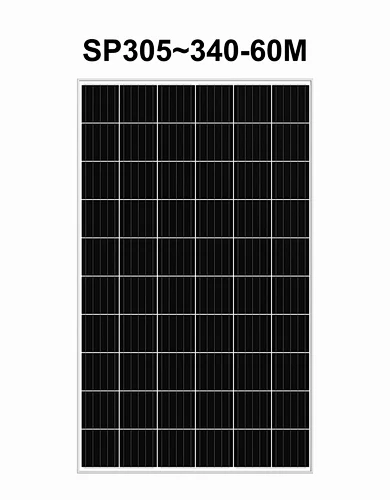

330W Mono Crystalline Solar Panel on grid project for Solar Power Plant
Sunpro Power is an integrated photovoltaic manufacturer focusing on solar modules and solar systems since 2008, with strong technical support, scientific production management, and strict quality control, power up to 540W. Our factory is based in China, equipped with fully automatic production lines at 800MW annual capacity
Feature
| 5BB Solar Cell | 5 busbar solar cell adopts new technology to improve the efficiency of modules, offers a better aesthetic appearance, making it perfect for rooftop |
| High Efficiency | Higher module conversion efficiency (up to 19.78%) benefit from PassivatedEmmiter Rear Contact (PERC) technology. |
| PID Resistance | Excellent Anti-PID performance guarantee limited power degradation for mass production. |
| Low-light Performance | Advanced glass and cell surface textured design ensure excellent performance in a low-light environment. |
| Severe Weather Resilience | Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). |
| Durability Against Extreme Environmental Conditions | High salt mist and ammonia resistance certified by TUV NORD. |
Production Specification
Electrical parameters at standard test conditions (STC: AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 330W |
Peak power(Pmax) | 330W |
Max Power Voltage(Vmp) | 33.8V |
Max Power Current(Imp) | 9.76A |
Open circuit voltage(Voc) | 41.8V |
Short circuit current(ISC) | 10.25A |
Module Efficiency(%） | 19.78% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
| Dimensions | 1665x1002x35mm |
| Weight | 19.0kg |
| Front glass | 3.2mm tempered glass |
| Output cables | 4mm² Symmetrical lengths 1100mm |
| Connectors | MC4 compatible IP68 |
| Cell type | Mono-Crystalline Silicon |
| Connectors | Mc4 compatible IP68 |
| Number of cells | 60 cells |
Packing Configuration
| Item | Specification | ||
Container | 20'GP | 40'GP | 40'HQ |
Pieces per pallet | 60 | 52 | 60 |
Pallets per container | 6 | 14 | 14 |
Pieces per container | 360 | 728 | 840 |

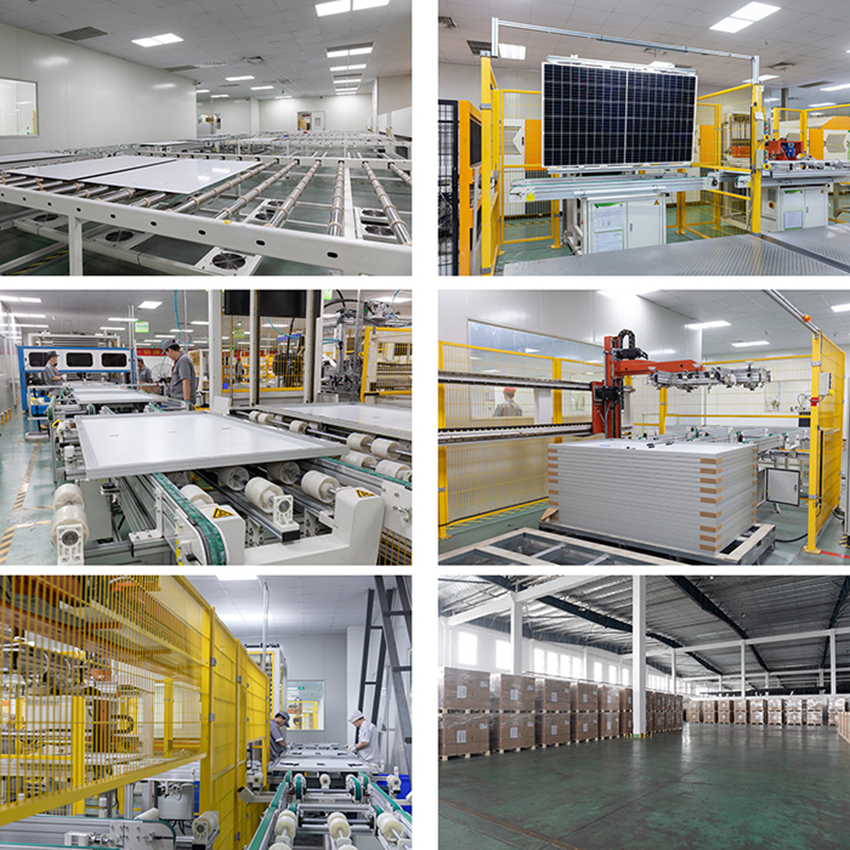

Our Factory

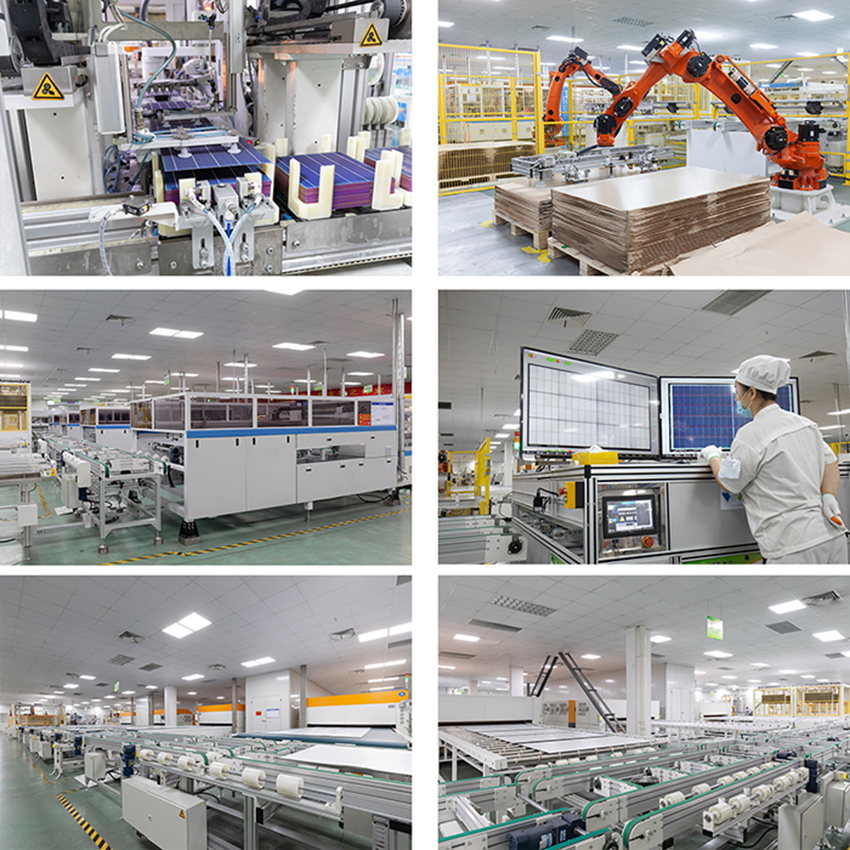

100% Automatic Procution Lines

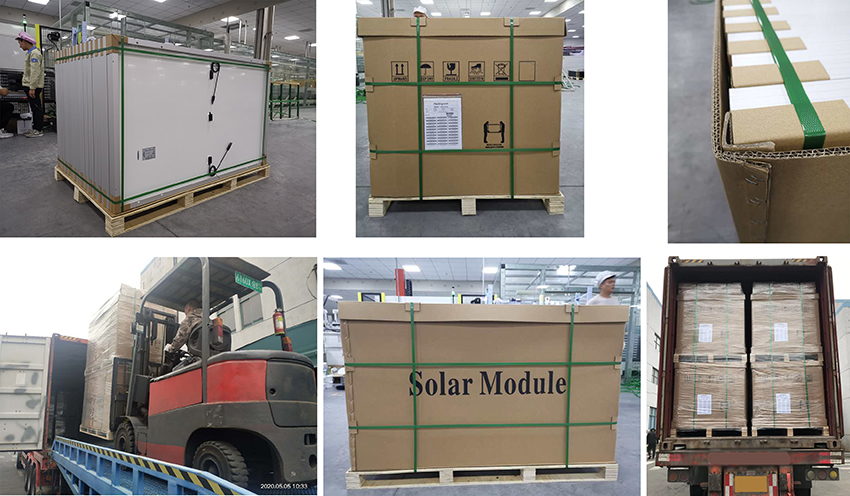

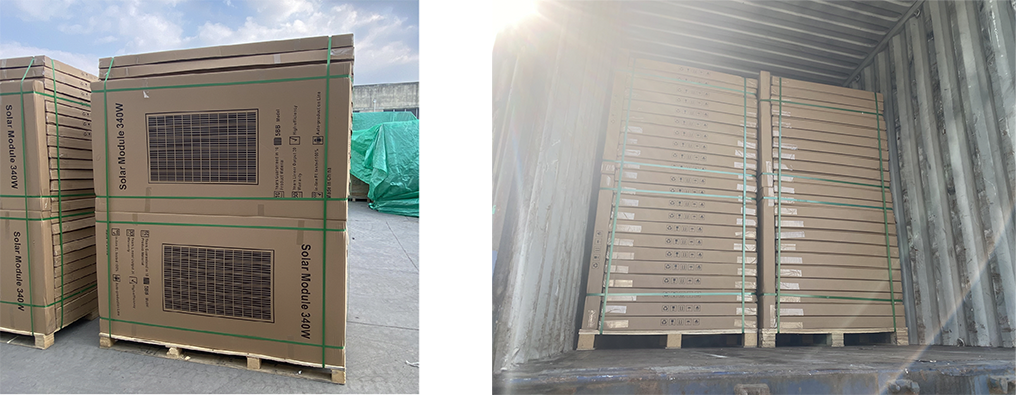

Packing

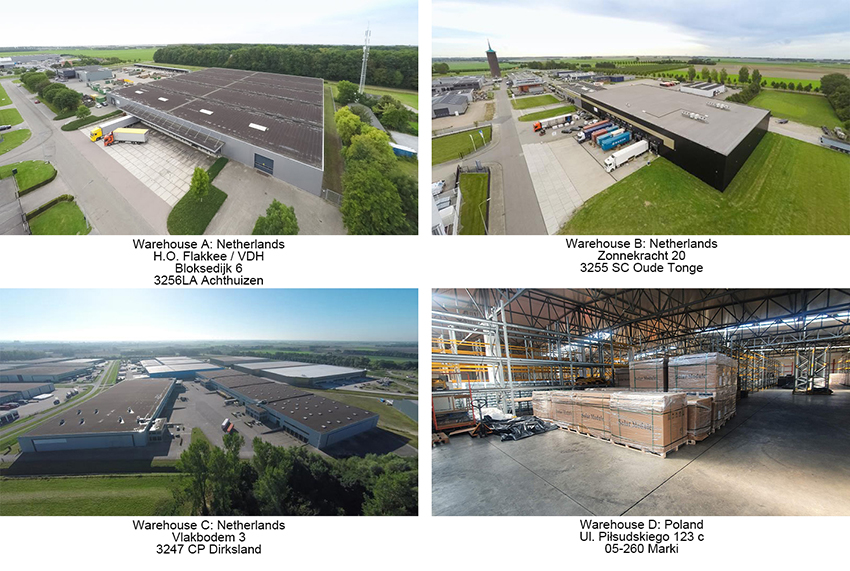

Global Warehouse
Certificates
Our main market

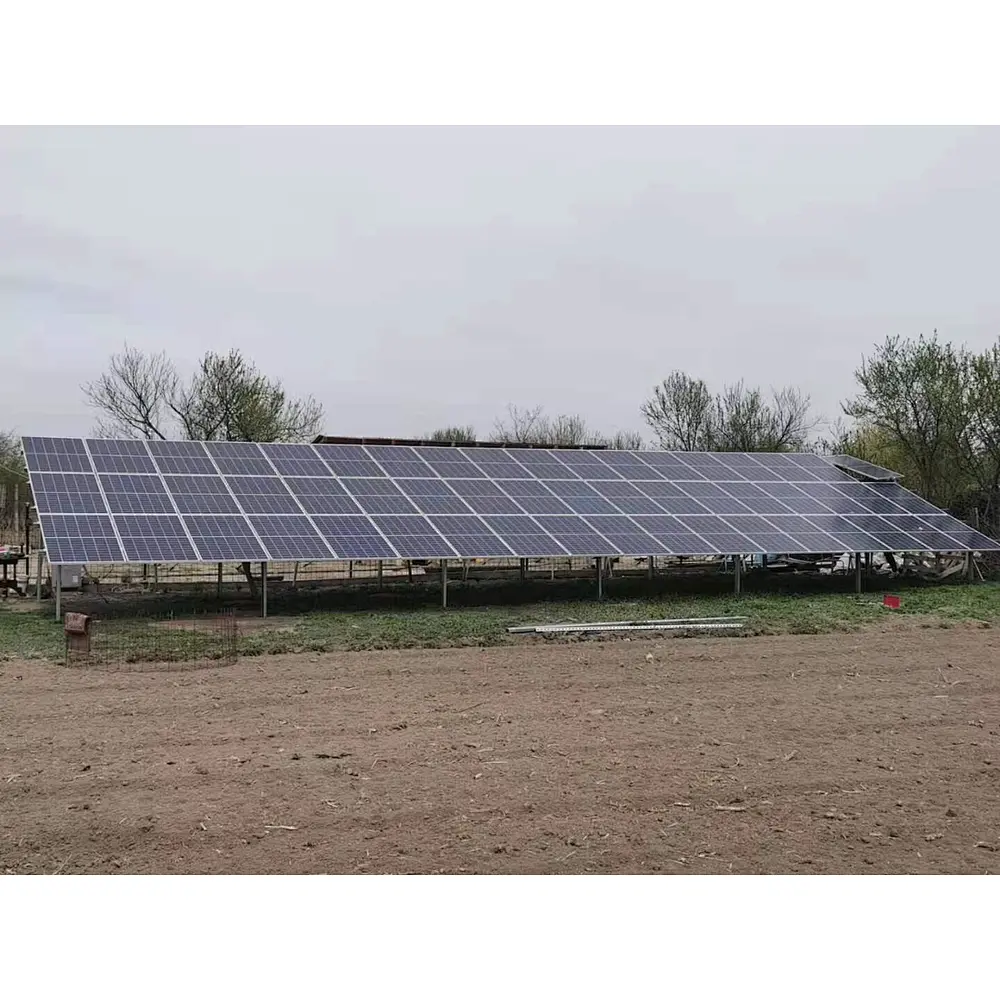

In the past decades, Sunpro Power built a wide sales network in the global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside the portable solar system, etc.
FAQ
1.Q: Could you produce 166mm cells?
A: Yes, we do.
2.Q: Do you have a stock warehouse in the EU market?
A: Yes, we have. We set warehouses in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q: May I have a piece of sample to check the quality?
A: Welcome to place the testing order to check the quality or for testing.
4.Q: How about the delivery time?
A: Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q: Where is the port of loading?
A: Ningbo or Shanghai
6.Q: Can you do OEM?
A: Yes, we are welcome to do OEM for our clients.
7.Q: Could we be your agent or distributor?
A:Yes, we do.
