US $0.15 - US $0.30 / watts
Hot sell 200watt Mono crystalline solar panel
200 watt mono solar panel have 5 years of materials production and processes, and include 10 years of convertible power output. The product guarantees positive output tolerance (0-3%). And the manufacturing plant has passed the ISO9001 quality management system standard certification. The 200 watt mono solar panel are exported to more than 50 countries.
Product Details
5-year material and workmanship;10-year transferable power output
Guaranteed positive output tolerance (0-3%)
Manufacturing facility certificated to ISO9001 quality management system standards
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 200W |
Peak power(Pmax) | 200W |
Weight | 11.7kg |
Dimensions(mm) | 1500*675*35 |
Max Power voltage(Vmp) | 20.27 |
Max Power current(Imp) | 9.87 |
Open circuit voltage(Voc) | 25V |
Short circuit current(Isc) | 10.39A |
Module Efficiency(%） | 20.25% |
Max system voltage | DC 1500V |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
Our Company
Founded in 2008, 800MW solar panel production capacity , meanwhile supply battery, charge controller , inverter and mounting system.
Products are exported to more than 50 countries
High quality products with competitive price
Products are certificated by TUV,CE,WEEE,INMETRO
We can do OEM for customers
Set warehouse in Rotterdam and Poland, to support EU clients stock customs clearance solar modules.
Professional QC department
Professional after-sale service

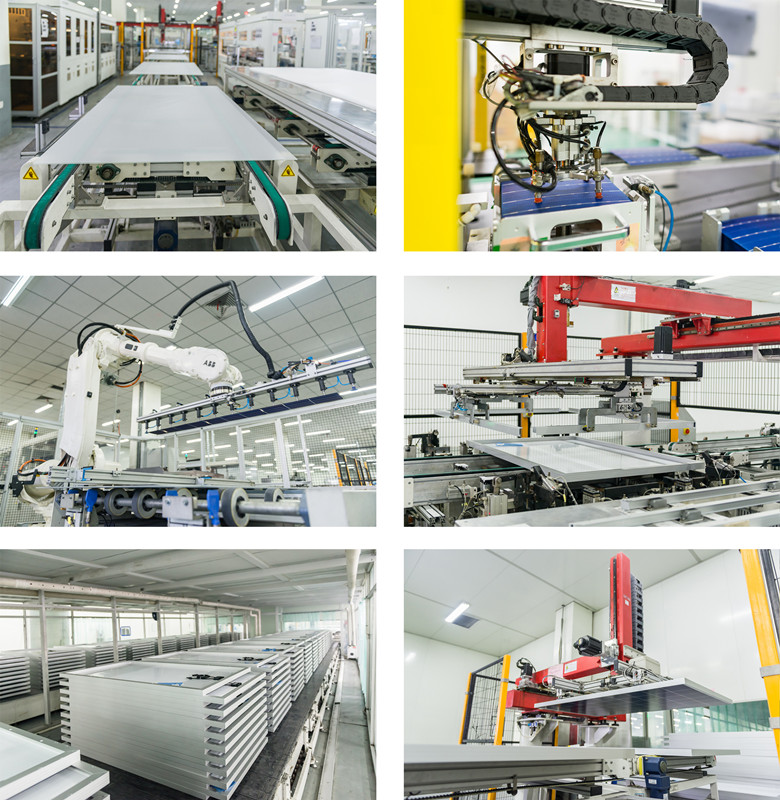

Our Factory
