US $0.15 - US $0.30 / watt
Withstand strong snow load 5400 Pa / wind load 2400 Pa
Excellent low light performance
100% EL online inspection
Ammonia & salt resistance PID free
12 years quality warranty
25 years power output warranty
Mono 340W solar panel with 120 cells
Electrical parameters at standard test conditions
(STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 340W |
Peak power(Pmax) | 340W |
Weight | 18kg |
Dimensions(mm) | 1685 x 1002 x 35 |
Max Power voltage(Vmp) | 33.5v |
Max Power current(Imp) | 10.15A |
Open circuit voltage(Voc) | 40.8V |
Short circuit current(Isc) | 10.72A |
Module Efficiency(%） | 20.37% |
Max system voltage | DC 1500V(TUV) |
Maximum Series Fuse Rating | 20A |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Normal operating cell temp. | 45± 2°C |
Power tolerance | 0±3% |
Junction box | IP68 |
- High Quality&Efficiency Crystalline Silicon Cells : A grade solar cells
- A Wide Range of Products :Mono-crystalline solar panel and poly(multi)-crystalline solar panel(depending on configurations)
- High Reliability :Guaranteed mechanical resistance to severe weather conditions for reliable power output.
- Tight Tolerance:Guaranteed positive tol erance from 0±3% ebsures power
output reliability. - Traceability :We provide flash report and embedded bar code ID for each module for complete traceability
- A Wide Range of Applications : Independent systems(household,powder supplies for remote areas, remote systems, ete.)and grid-connected photovoltaic power stations(residential,commercial, industrial power supply systems)
- Warranty :12-year limited product warranty and 25-year limited power guarantee
Consistency appearance A Grade cells Anti-Pid resistant |  |
Frame
| Silver color Aluminum Alloy Frame Boost bearing capability and prolong service life Serrated-clip design tensile strength |
Glass
| 3.2mm thickness higher transmittance high mechanical strength |
Junction Box
| IP68 Waterproof level Quality diode ensures module running safety -40℃ to +85 ℃ temperature range innovative full-glue-filled junction box |

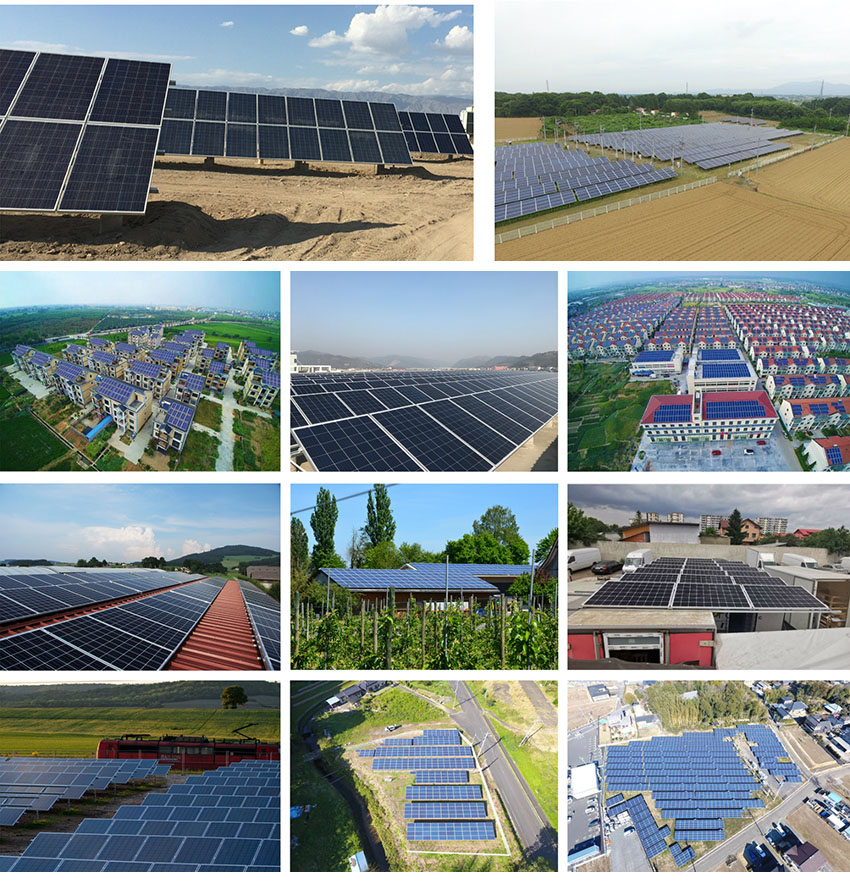

Application
450 watt solar panel is widely applied in residential or commercial industry.
e.g. rooftop project, ground power plant
Certication
ISO9001,ISO quality management system
ISO14001, ISO environment management system
OHSAS18001, Occupational health and safety
Our A/S:
If you find the quality is with problem, please show us the picture, and the series no. , if it does our quality problem, we will replace a new one, or refund you the payment. But please be assured actually the possibility is less than 0.1%.
Q: What is series no.?
A: Every step of our production is recorded by series no. , it can be tracked back if there’s any quality issues
