US $0.20 - US $0.35 / watt
260W MonoCrystalline Solar Modules for industrial use
- power tolerance 0~+3%
- 12 years production warranty, 25 years linear warranty.
- 12-year: 90.7% power output , 25-year: 80.2% power output
Production Specification
Electrical parameters at standard test conditions (STC:AM=1.5, 1000W/m2, Cells Temperature 25°C）
Model type | 260W |
Max power | 260W |
Max Power voltage(Vmp) | 26.9V |
Max Power current(Imp) | 9.67A |
Open circuit voltage(Voc) | 33.1V |
Short circuit current(Isc) | 10.20A |
Module Efficiency(%） | 19.25% |
Max system voltage | DC 1500V(TUV)/DC 1000V(TUV) |
Maximum Series Fuse Rating | 20A |
Mechanical Data
Dimensions | 1348x1002x35mm |
Weight | 14.6kg |
Front glass | 3.2mm tempered glass |
Output cables | 4mm² Symmetrical lengths 1100mm |
Connectors | MC4 compatible IP68 |
Cell type | Mono-Crystalline Silicon |
Connectors | Mc4 compatible IP68 |
| Number of cells | 48 cells |

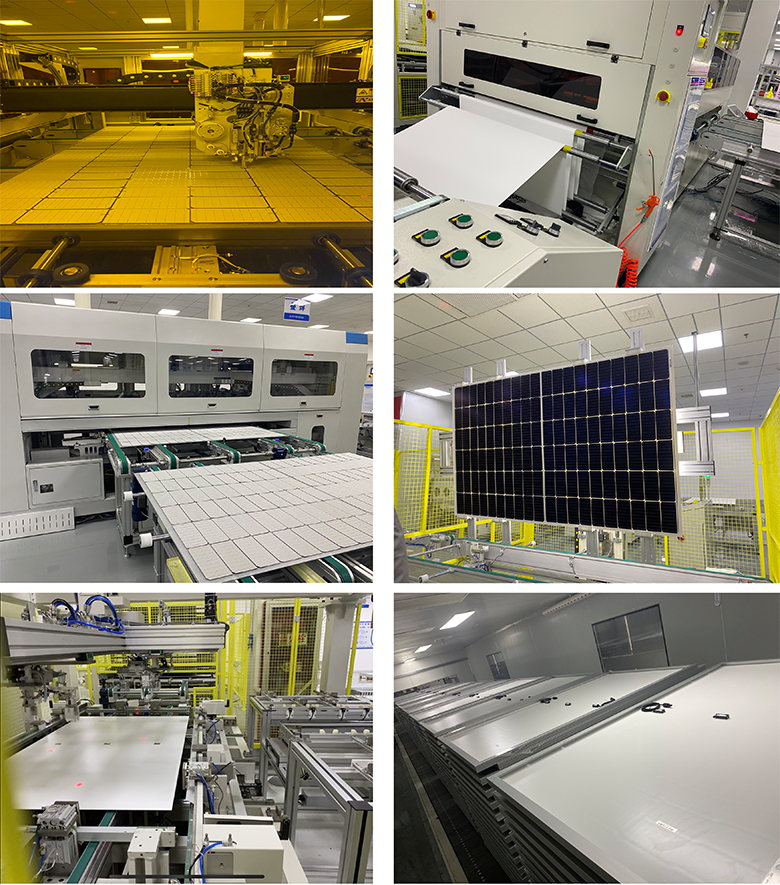

Our Factory
100% Automatic Procution Lines
Packing
Certificates
FAQ
1.Q:Could you produce 166mm cell?
A:Yes,we do.
2.Q:Do you have stock warehouse in EU market?
A:Yes, we have. We set warehouse in Rotterdam and Poland to keep regular customs clearance stock solar panels.
3.Q:May i have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
4.Q:How about the delivery time?
A:Generally, the order takes 15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
5.Q:Where is the port of loading?
A:Ningbo or Shanghai
6.Q:Can you do OEM?
A:Yes, we are welcome to do OEM for our clients.
7.Q:Could we be your agent or distributor?
A:Yes, we do.
